E24364-G1/4
Image may not correspond to reality
  • E24364-G1/4
  • E24364-G1/4

E24364-G1/4

HSS-E PM machine taps
E24364-G1/4
4042446189426
Walter AG
€55.02

€55.02 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For short-chipping materials
  • Nitrided

HSS-E PM machine taps • Paradur Eco CI • ≤3xD • G/NORMAL • DIN 5156 • neutral (straight) flute 0° • Suitable for blind hole • Suitable for through hole • NID • G 1/4-19 • P=19

Product Details

Main application
ISO K
ISO N
ISO O
Thread size [DNN-P]
G 1/4-19
Thread size [D N]
13,157 mm
Threads per inch
19

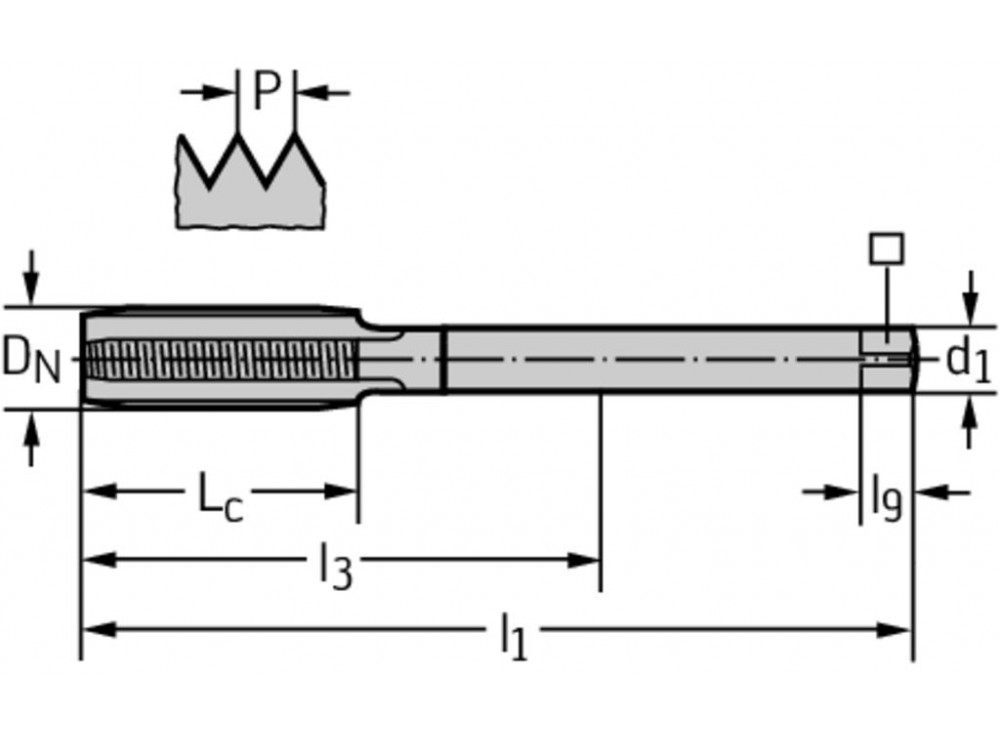

Functional length [l 1]
100 mm
Cutting edge length [L c]
21 mm
Clamping width
9 mm
Useable length [l 3]
71 mm
Driving square length [l 9]
12 mm
Number of grooves [N]
4
Connection diameter [d 1]
11 mm
Weight
0.069 kg
