E21364-M22X1.5
Image may not correspond to reality
  • E21364-M22X1.5
  • E21364-M22X1.5

E21364-M22X1.5

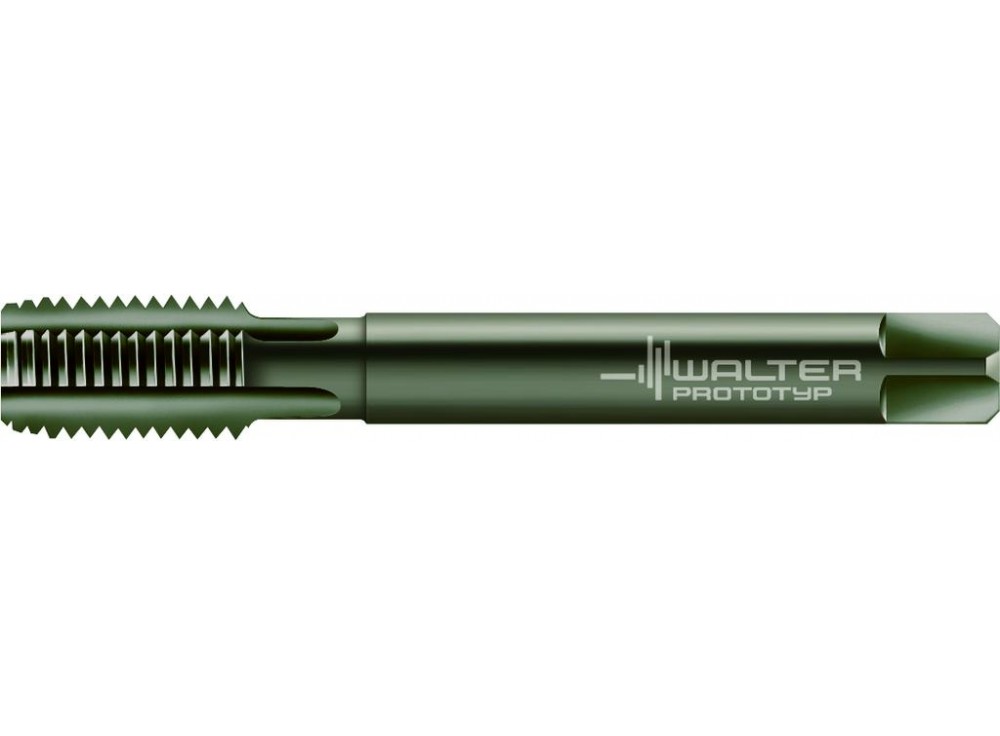

HSS-E PM machine taps
E21364-M22X1.5
4042446188795
Walter AG
€98.04

€98.04 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For short-chipping materials
  • Nitrided

HSS-E PM machine taps • Paradur Eco CI • ≤3xD • MF/6HX • DIN 374 • neutral (straight) flute 0° • Suitable for blind hole • Suitable for through hole • NID • MF 22x1.5 • P=1,5mm

Product Details

Main application
ISO K
ISO N
ISO O

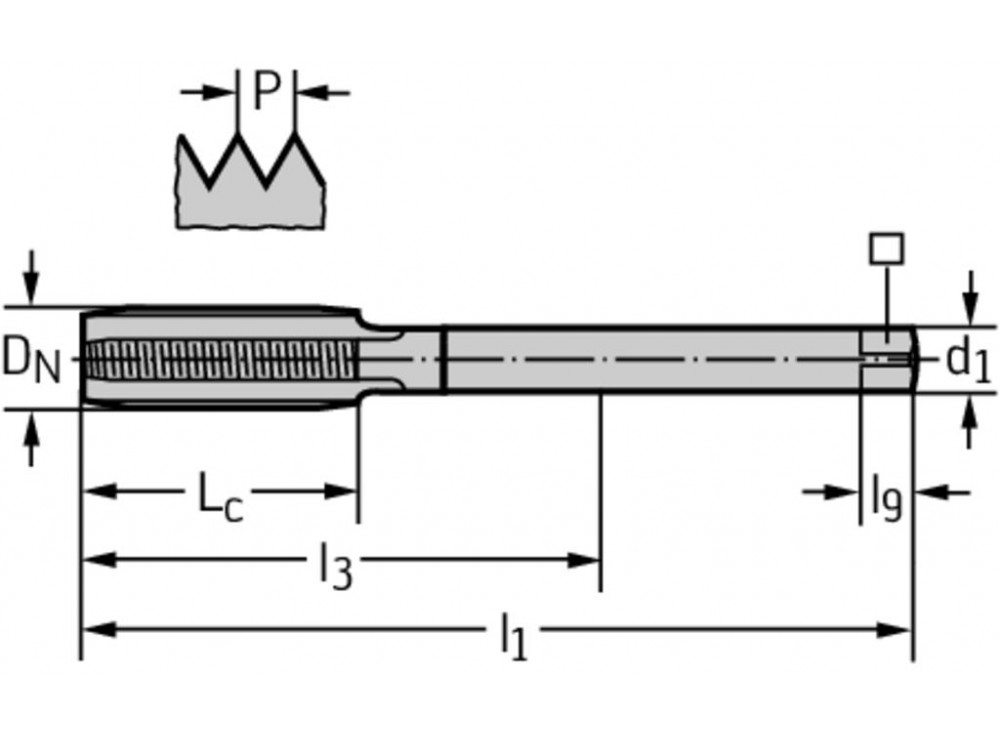

Thread size [D N]
MF 22x1.5
Thread pitch [P]
1,5 mm
Functional length [l 1]
125 mm
Cutting edge length [L c]
24 mm
Clamping width
14,5 mm
Useable length [l 3]
78 mm
Driving square length [l 9]
17 mm
Number of grooves [N]
5
Connection diameter [d 1]
18 mm
Weight
0.242 kg
