NCBE20-C300L-GX24-2-21
Image may not correspond to reality
  • NCBE20-C300L-GX24-2-21
  • NCBE20-C300L-GX24-2-21

NCBE20-C300L-GX24-2-21

Groove turning – Radial grooving C...-NCBE
NCBE20-C300L-GX24-2-21
Walter AG
€399.50

€399.50 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Walter CaptoTM
  • Screw clamping

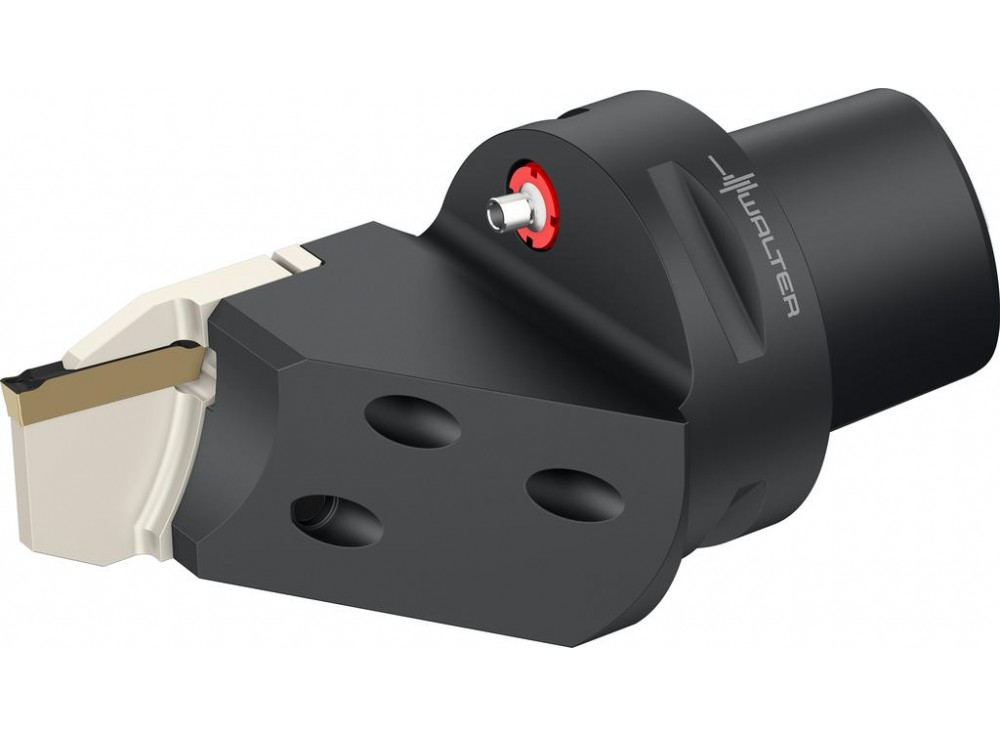

Groove turning – Radial grooving C...-NCBE • Walter CaptoTM • Screw clamping • metric • Walter CaptoTM ISO 26623 • Left • GX24 • s=3mm • Tmax=21mm

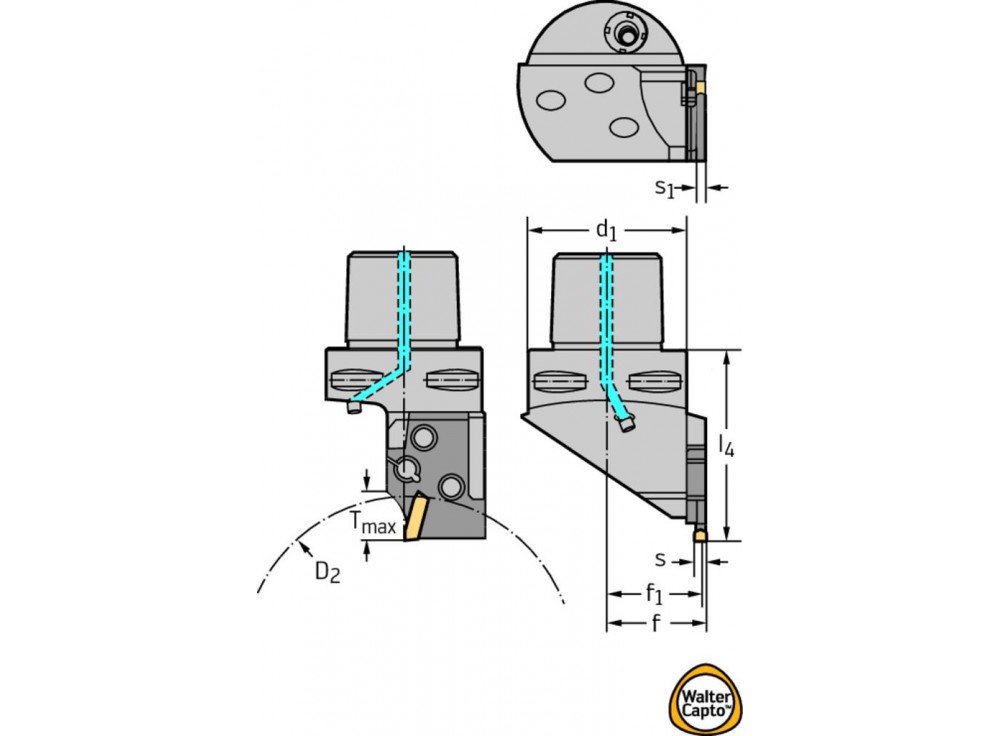

Product Details

Insert width [s]
3 mm
Maximum cutting depth [T max]
21 mm
Work piece parting diameter maximum [D 2]
63 mm
Functional width [f 1]
19,4 mm
Body width [s 1]
2 mm
Maximum projection length [l 4]
58,5 mm
Connection size code [d 1]
C3
Module size
E20
Weight
0.29 kg
