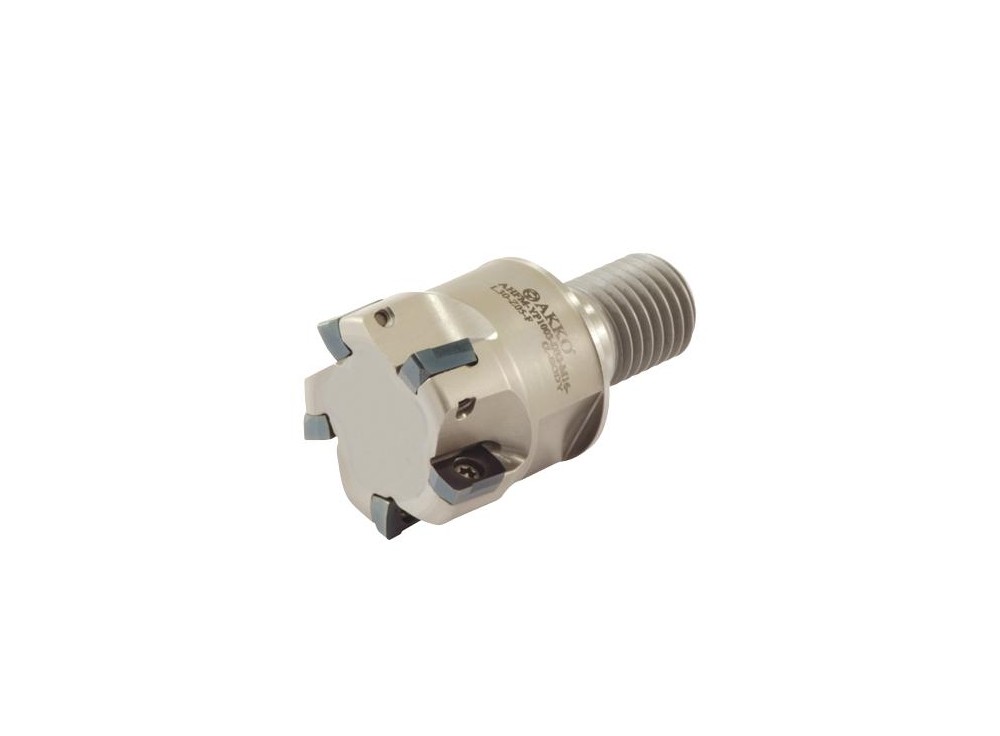

AHFM-YP1003-D25-M12-L35-Z04-H-F
Image may not correspond to reality
  • AHFM-YP1003-D25-M12-L35-Z04-H-F
  • AHFM-YP1003-D25-M12-L35-Z04-H-F

AHFM-YP1003-D25-M12-L35-Z04-H-F

Modular high-feed end mill - ø 25 mm
AHFM-YP1003-D25-M12-L35-Z04-H-F
8699459062558
AKKO
€202.20

€202.20 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Modular high-feed end mill
  • S-System
  • Cutting edge diameter: 25 mm
  • Total length: 35 mm
  • Internal cooling: no
  • Indexable inserts: YPHW 1003..

Product Details

Cutting edge diameter [DC]
25 mm
Diameter [DCON]
12.5 mm
Total length [LF]
35 mm
Indexable inserts
YPHW 1003..
Coolant hole
No
Screw
3008-M2.5X5
Key
80-T08
Fastening system
S-System
Number of teeth [ZEFP]
4
Weight
0.141 kg
