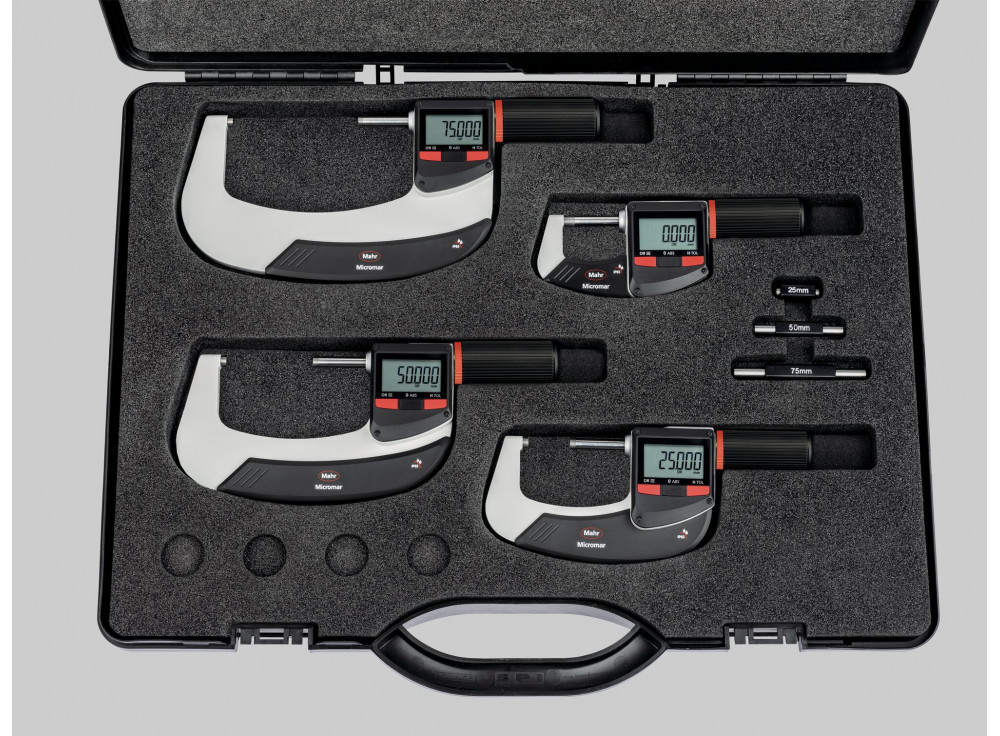

Mahr Micromar 40 EWR-L - set
Image may not correspond to reality
  • Mahr Micromar 40 EWR-L - set

Micromar 40 EWR-L - set

Digital micrometer
Mahr
€2,032.15 - €2,178.62

€2,032.15 - €2,178.62 tax incl.

within 1 week
Features
  • High contrast digit display
  • Stainless spindle is hardened throughout and ground
  • Spindle and anvil are carbide-tipped
  • QUICK DRIVE
  • Sliding spindle
  • Ratchet is integrated in the thimble
  • Lacquered steel frame, heat insulated
Application:
  • Avoiding workpiece damage: The non-rotating spindle has a touching touch, which prevents scratch marks on sensitive and finely machined surfaces
  • Ideal for measuring thin metal foils without twisting and bending them
  • Thread flank measurement by using thread wires: Both wire holders always remain in the engaged position with the non-rotating spindle

Filter By:

Reference Measuring range Measuring range (inch) Resolution (mm/inch) Measuring force Number of micrometers Standard Calibration certificate Weight Availability Price (tax excl.)
4157400 0 - 100 mm0 - 4"0.001 / .00005"5 - 10 N4Factory standard 3.44 kg in stock at the supplier €2,032.15
4157400KAL 0 - 100 mm0 - 4"0.001 / .00005"5 - 10 N4Factory standardMahr Factory 3.44 kg in stock at the supplier €2,133.03
4157400DKS 0 - 100 mm0 - 4"0.001 / .00005"5 - 10 N4Factory standardDAkkS 3.44 kg in stock at the supplier €2,178.62

Product Details

Function
ABS (display can be set to zero without losing reference to ORIGIN)
Bi-directional data interface (external output and input option of characteristic values as well as setting of individual lock functions by software MarCom)
DATA (data transmission via connection cable)
HOLD (storage of measured values)
LOCK function (key lock)
ORIGIN (for entering a numerical value)
RESET (set display to zero)
TOL (Tolerance and Warning Limits Input)
mm/inch
Data interface
Digimatic
MarConnect (bidirectional)
USB
Energy supply
Battery life approx. 2 years
Height of digits
10 mm
IP protection category
IP 65
Package contains
battery
case
instruction manual
setting standard (measuring range of 25-50 mm)
test certificate
Model contact surface
flat
Spindle thread pitch (mm)
5 mm
Resolution (inch)
0.00005"
Resolution (mm)
0.001 mm
