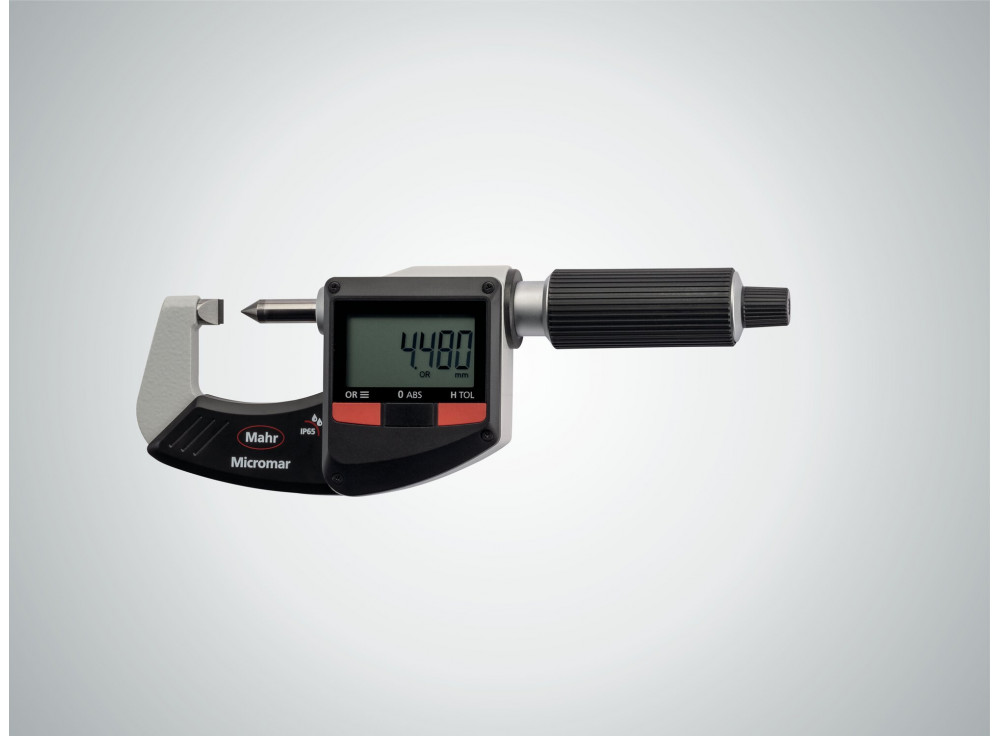

Micromar 40 EWR-K
Digital micrometer
€721.68 - €769.21
€721.68 - €769.21 tax incl.
within 1 week
Features
- Measuring surfaces: Anvil with narrow web, pointed spindle
- High contrast digit display
- Stainless spindle is hardened throughout and ground
- Spindle and anvil are carbide-tipped
- Rapid drive
- Ratchet is integrated in the thimble
- Lacquered steel frame, heat insulated
Application:
- For measuring crimp heights on crimp contacts and end splices
Filter By:
| Reference | Measuring range | Measuring range (inch) | Resolution (mm/inch) | Error limit (µm) | Measuring force | Standard | Calibration certificate | Weight | Availability | Price (tax excl.) | 4157040 | 0 - 20 mm | 0 - 0.8" | 0.001 / .00005" | 4 µm | 5 - 10 N | Factory standard | 0.57 kg | in stock at the supplier | €721.68 |
|
4157040KAL | 0 - 20 mm | 0 - 0.8" | 0.001 / .00005" | 4 µm | 5 - 10 N | Factory standard | Mahr Factory | 0.57 kg | in stock at the supplier | €756.36 |
|
4157040DKS | 0 - 20 mm | 0 - 0.8" | 0.001 / .00005" | 4 µm | 5 - 10 N | Factory standard | DAkkS | 0.57 kg | in stock at the supplier | €769.21 |
|
|---|
Product Details
- Function
- ABS (display can be set to zero without losing reference to ORIGIN)
Bi-directional data interface (external output and input option of characteristic values as well as setting of individual lock functions by software MarCom)
DATA (data transmission)
HOLD (storage of measured values)
LOCK function (key lock)
ORIGIN (for entering a numerical value)
RESET (set display to zero)
TOL (Tolerance and Warning Limits Input)
mm/inch - Data interface
- Digimatic
MarConnect (bidirectional)
USB - Energy supply
- Battery life approx. 2 years
- Height of digits
- 10 mm
- IP protection category
- IP 65
- Package contains
- battery
case
instruction manual
test certificate - Model contact surface
- Blade
taper - Spindle thread pitch (mm)
- 0.5 mm
- Resolution (inch)
- 0.00005"
- Resolution (mm)
- 0.001 mm
