D4240-02-17.00F20-C
Image may not correspond to reality
  • D4240-02-17.00F20-C
  • D4240-02-17.00F20-C

D4240-02-17.00F20-C

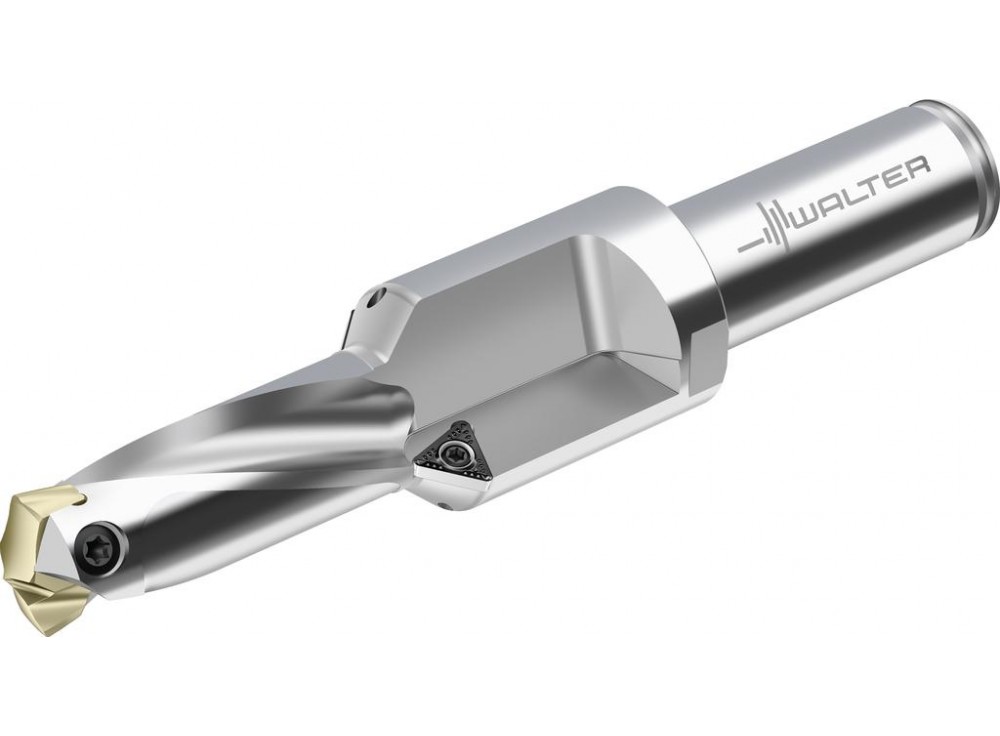

Exchangeable-tip drills D4240-02
D4240-02-17.00F20-C
Walter AG
€315.00

€315.00 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

Exchangeable-tip drills D4240-02 • Cylindrical shank with flat • metric • 2,5xD • point angle 140° • step included angle 45° • Z=2 • Dc=17mm

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S

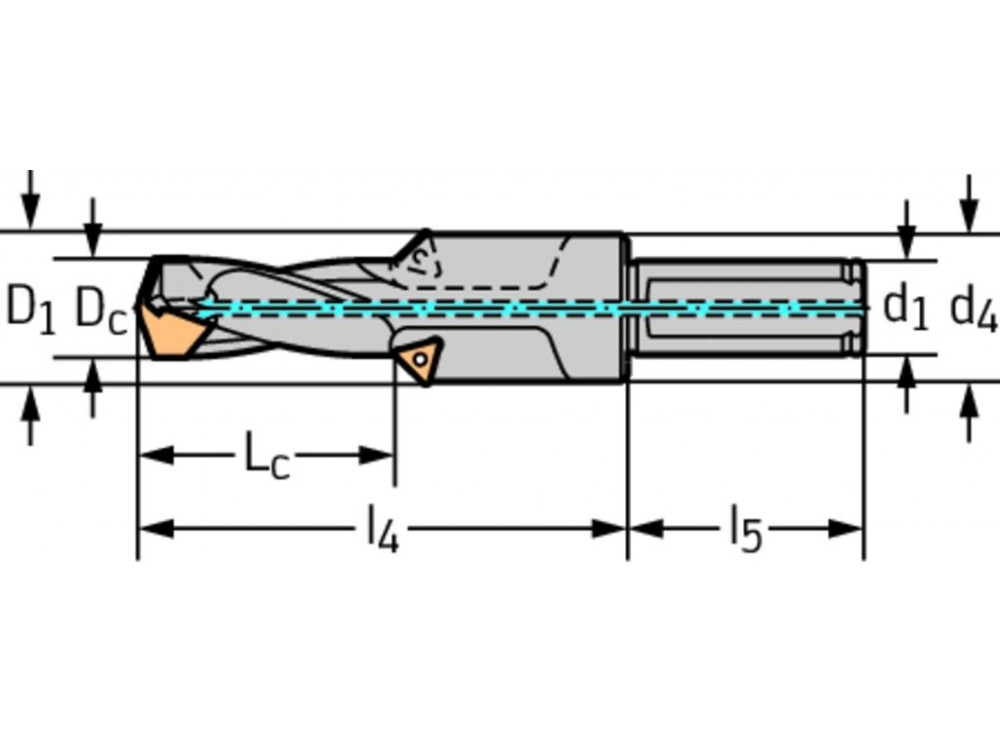

Cutting edge diameter [d 1]
28,7 mm
Cutting edge diameter [D c]
17 mm
Flange diameter [d 4]
30 mm
Cutting edge length [L c]
48,6 mm
Shank diameter [d 1]
20 mm
Seat size
16
Maximum projection length [l 4]
88 mm
Number of indexable inserts [No. of indexable inserts]
1
Clamping length [l 5]
50 mm
Weight of item
0,3 kg
Weight
0.302 kg
