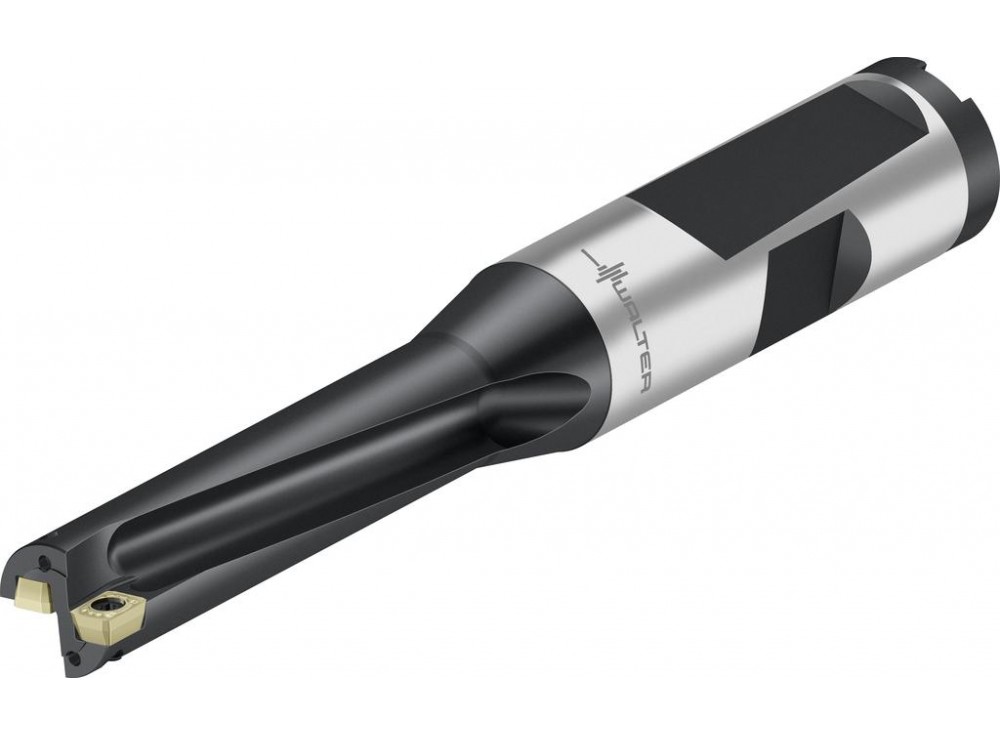

B3214.DF.12,5.Z01.50R
Image may not correspond to reality
  • B3214.DF.12,5.Z01.50R
  • B3214.DF.12,5.Z01.50R

B3214.DF.12,5.Z01.50R

Insert drills
B3214.DF.12,5.Z01.50R
Walter AG
€391.84

€391.84 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

Insert drills B3214 • 4xD • DIN 6535 HE/HB • metric • Dc=12,5mm

Product Details

Main application
ISO K
Additional application
ISO N

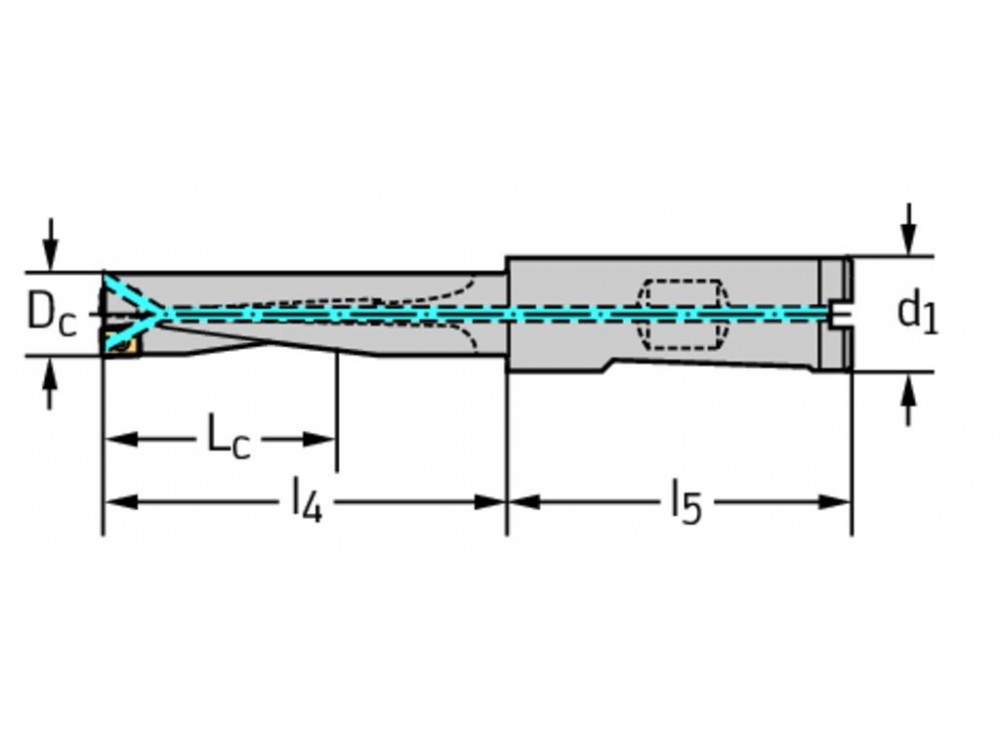

Connection diameter [d 1]
16 mm
Cutting edge diameter [D c]
12,5 mm
Cutting edge length [L c]
50 mm
Maximum projection length [l 4]
62 mm
Number of indexable inserts [No. of indexable inserts]
2
Clamping length [l 5]
48 mm
Weight of item
0,11 kg
Weight
0.112 kg
