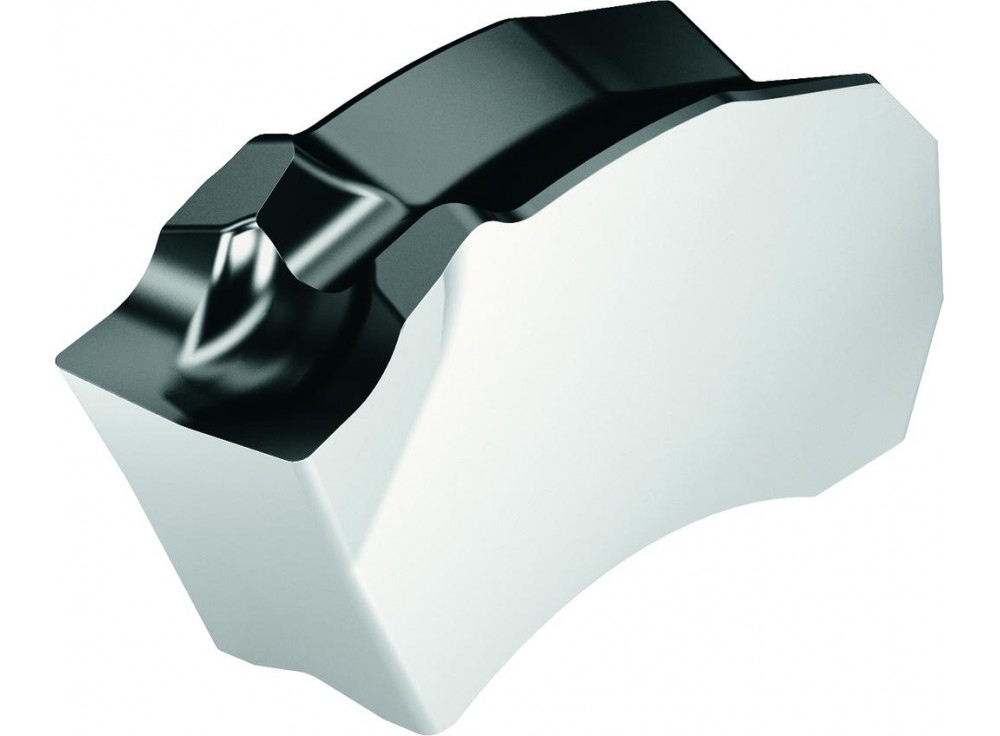

SX-3E300R6-CF5 WSM43S
Image may not correspond to reality
  • SX-3E300R6-CF5 WSM43S
  • SX-3E300R6-CF5 WSM43S

SX-3E300R6-CF5 WSM43S

Grooving and parting off – cutting inserts
SX-3E300R6-CF5 WSM43S
Walter AG
€11.79

€11.79 tax incl.

within 1 week
Quantity
in stock at the supplier

The minimum purchase order quantity for the product is 10.

Description

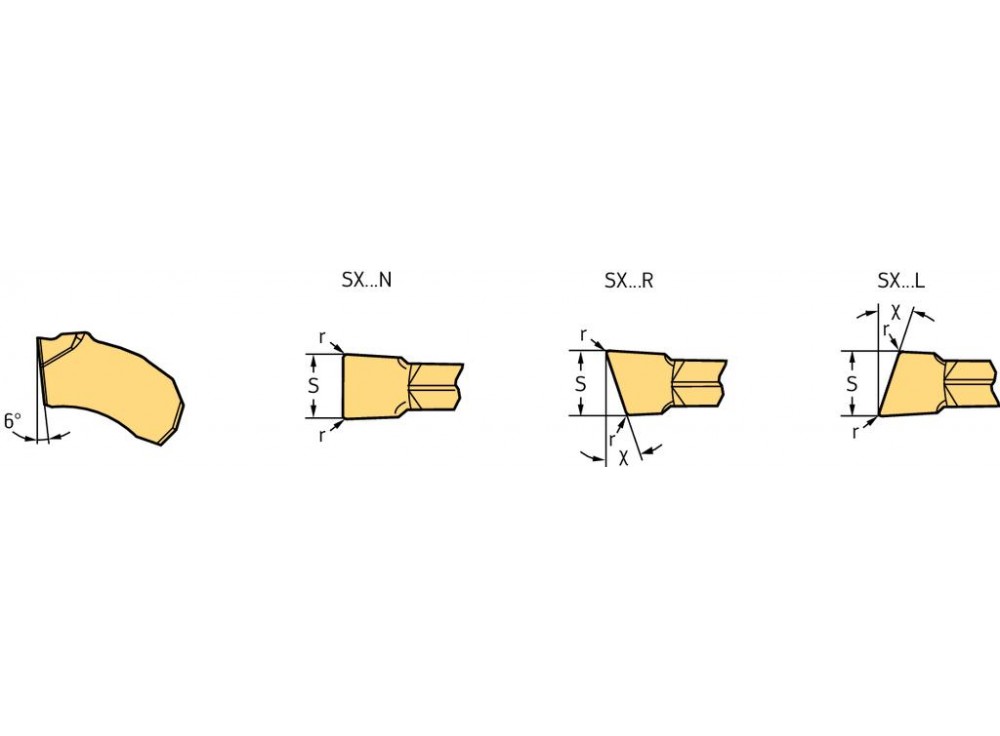

Grooving and parting off – cutting inserts SX • CF5 • Right • WSM43S • Tigertec Silver • s=3mm • r=0,2mm

Product Details

Insert width [s]
3 mm
Approach angle [κ]
6 Deg
Feed per revolution [f]
0,08 - 0,17 mm
Tolerance cutting width [S Tol]
±0,05 mm
Length tolerance [l Tol]
±0,1 mm
Corner radius [r]
0,2 mm
Weight
0.002 kg
