MD377-16.0A5B400C-WK40TZ
Image may not correspond to reality
  • MD377-16.0A5B400C-WK40TZ
  • MD377-16.0A5B400C-WK40TZ

MD377-16.0A5B400C-WK40TZ

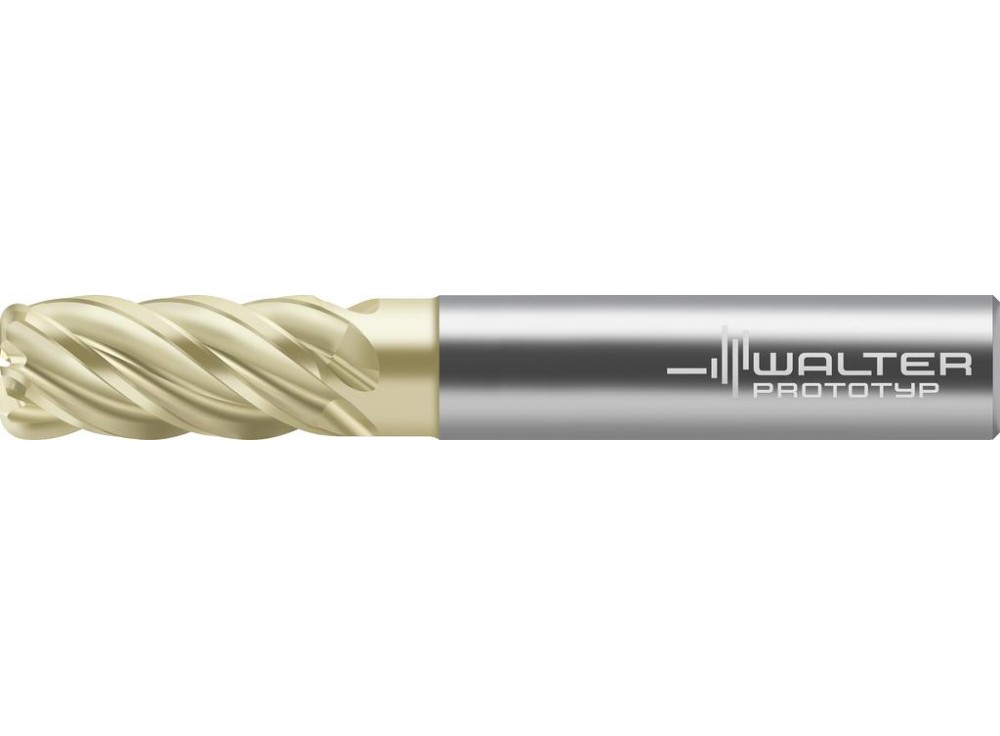

Solid carbide shoulder/slot milling cutter

Supreme

MD377-16.0A5B400C-WK40TZ
4042446309480
Walter AG
€335.49

€335.49 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Long reach
  • Type HPC Ti40

Solid carbide shoulder/slot milling cutter MD377 • Supreme • DIN 6535 HA shank • metric • flute helix angle 40° • Long reach • Type HPC Ti40 • WK40TZ • Dc=16mm • R=4mm • Z=5

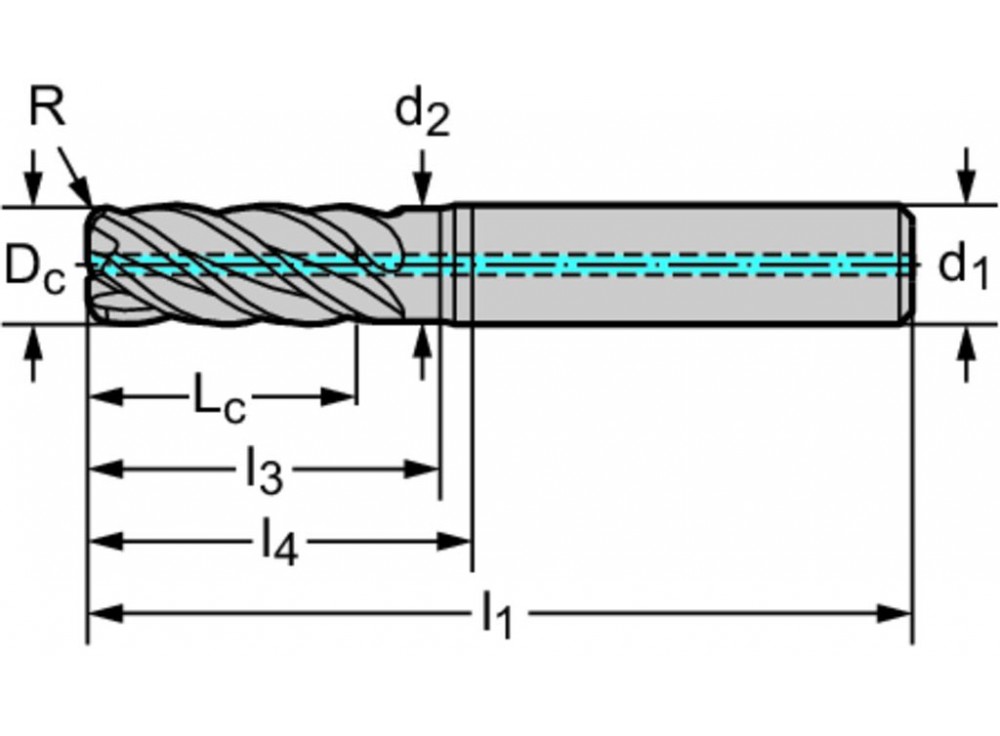

Product Details

Main application
ISO S
Additional application
ISO M
Cutting edge diameter [D c]
16 mm
Neck diameter [d 2]
15,2 mm
Cutting edge length [L c]
32 mm
Shank diameter [d 1]
16 mm
Corner radius [r]
4 mm
Overall length [l 1]
92 mm
Useable length [l 3]
42 mm
Functional length [l 4]
44 mm
Number of teeth [Z]
5
Weight
0.225 kg
