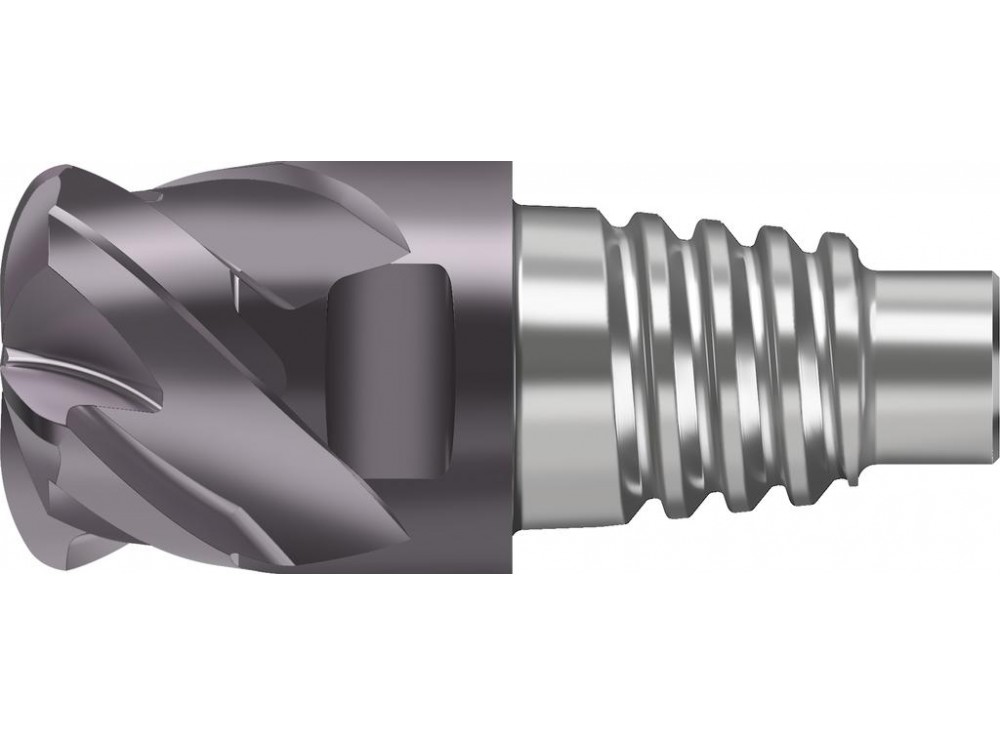

MC025.19.1E4P203-WJ30TF

Product Details

Main application

ISO P

Additional application

ISO K
ISO M
ISO S

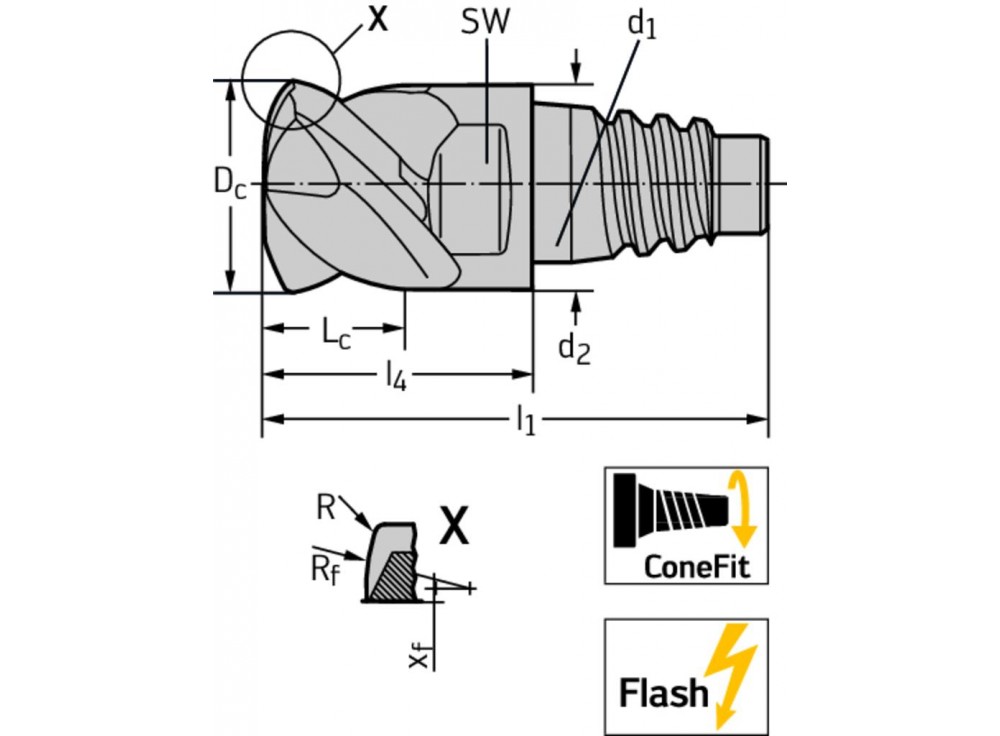

Offset radius [x f]

0,158 inch

Corner radius [R f]

0,354 inch

Equivalent radius [R ers]

0,117 inch

Cutting edge diameter [D c]

3/4" Inch_No_Let

Cutting edge length [L c]

0,413 inch

Corner radius [r]

0,08 inch

Overall length [l 1]

1,606 inch

Wrench size [SW]

0,63 inch

Maximum projection length [l 4]

0,839 inch

Connection size code [d 1]

E20 inch

Number of teeth [Z]

4

Weight

0.12 kg
