AK300.BT40.070.ER32
Image may not correspond to reality
  • AK300.BT40.070.ER32
  • AK300.BT40.070.ER32

AK300.BT40.070.ER32

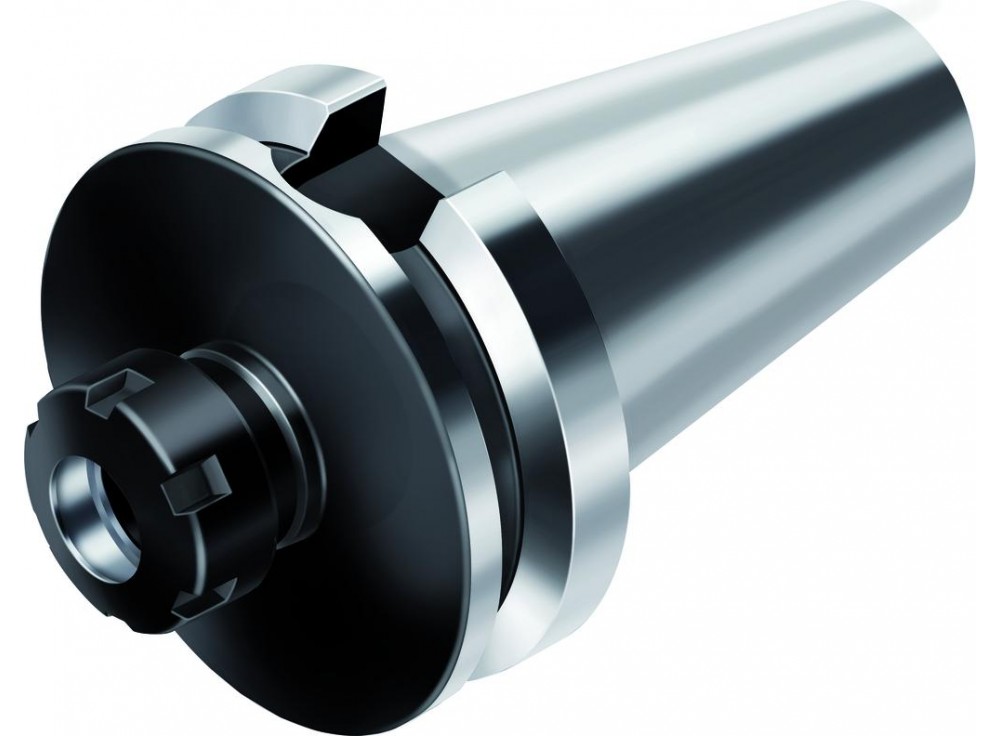

MAS-BT JIS B 6339 ER collet chuck
AK300.BT40.070.ER32
Walter AG
€168.00

€168.00 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For ER collets in accordance with DIN 6499/ISO15488
  • ISO 7388-2

MAS-BT JIS B 6339 ER collet chuck AK300.BT • metric • For ER collets in accordance with DIN 6499/ISO15488 • ISO 7388-2 • d1=40 • d11=ER32

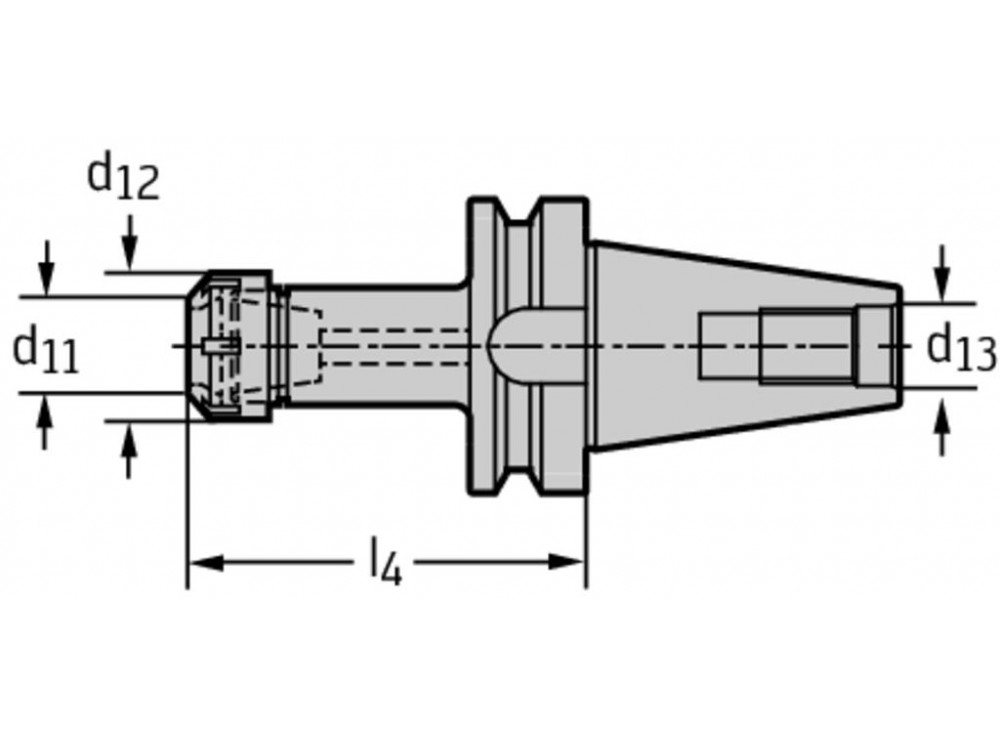

Product Details

Connection diameter [d 11]
1-20
Body diameter [d 12]
50 mm
Collets
ER32
Pull stud, thread size [d 13]
M16
Maximum projection length [l 4]
70 mm
Connection size code [d 1]
40
Weight of item
1,26 kg
Weight
1.259 kg
