M5137-050-B22-05-08

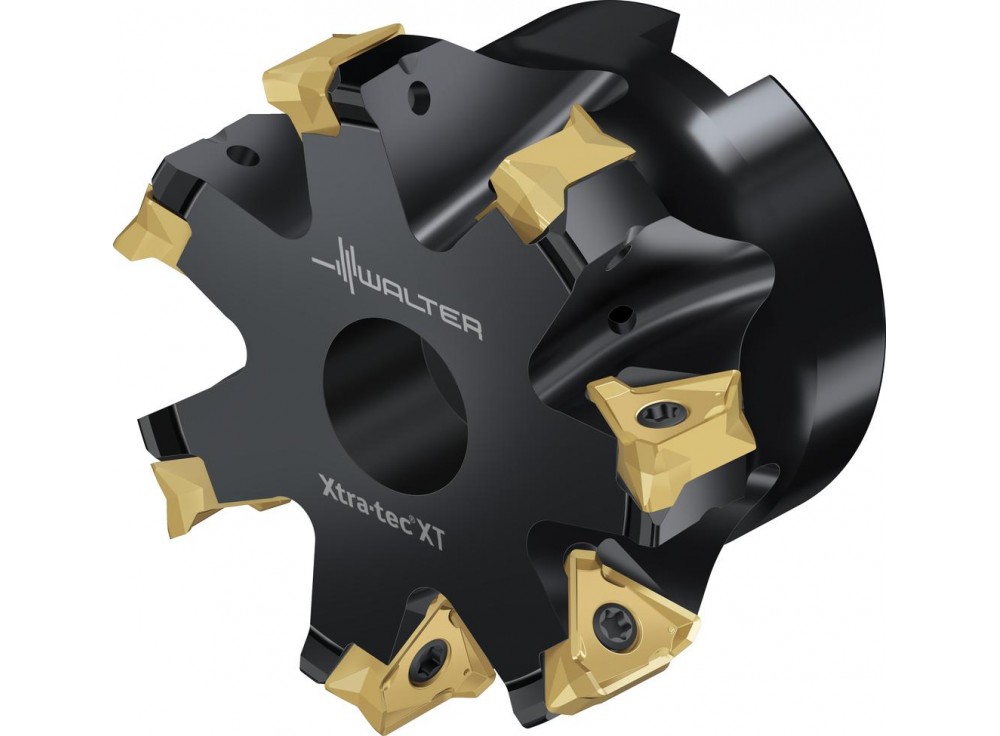

Shoulder milling cutters
M5137-050-B22-05-08
Walter AG
€424.84

€424.84 tax incl.

1 - 2 days
Quantity
in stock

Description

  • 6 cutting edges per indexable insert

Shoulder milling cutters M5137 • Parallel bore DIN 138 transverse keyway • κ=90° • metric • TN .. 1605 .. • Dc=50mm • Z=5

Product Details

Main application
ISO K
ISO M
ISO P
ISO S

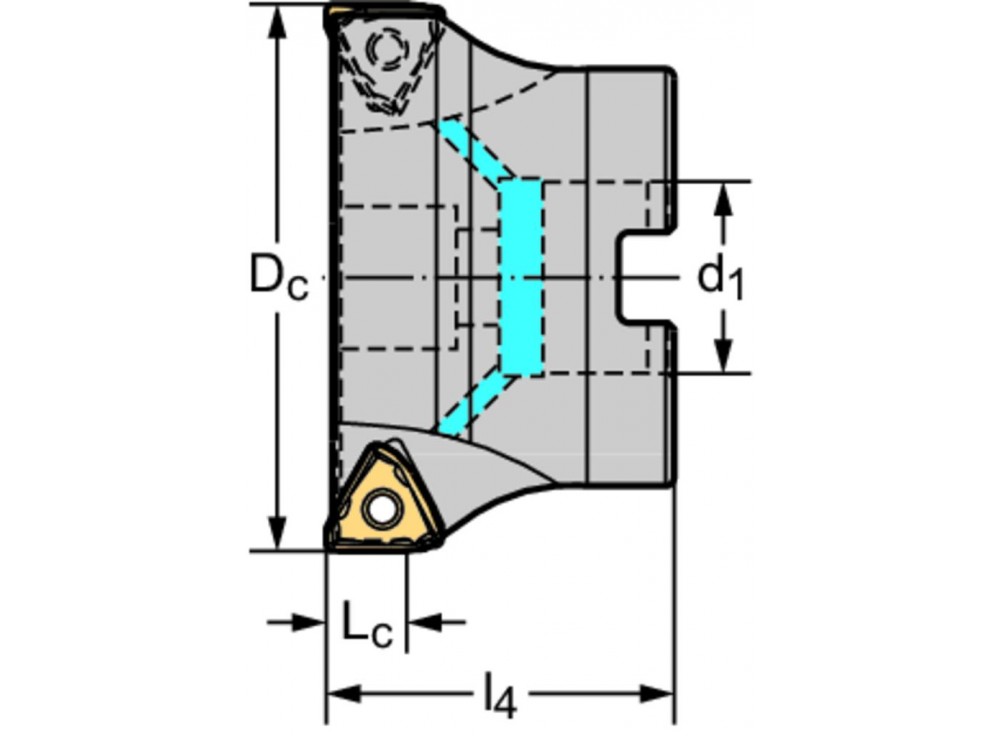

Connection diameter [d 1]
22 mm
Cutting edge diameter [D c]
50 mm
Cutting edge length [L c]
8 mm
Maximum admissable speed [n max [rpm]]
10700
Maximum ramping angle [E]
1,6 Deg
Maximum projection length [l 4]
40 mm
Number of indexable inserts [No. of indexable inserts]
5
Weight of item
0,25 kg
Number of teeth [Z]
5
Weight
0.249 kg
