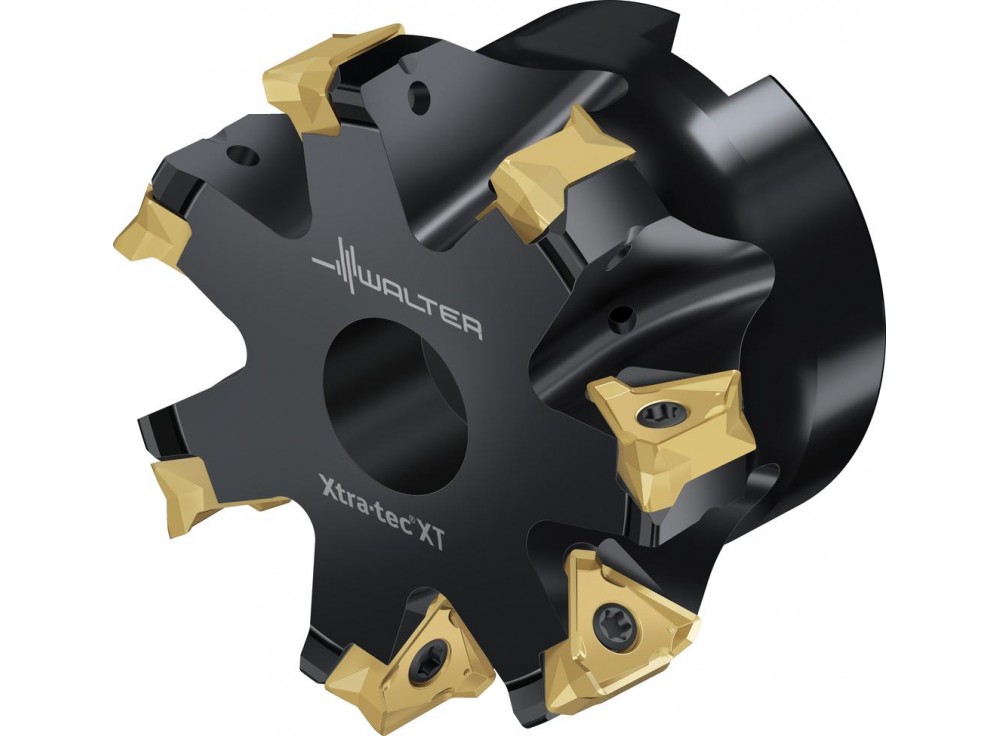

M5137-050-B22-04-08
Image may not correspond to reality
  • M5137-050-B22-04-08
  • M5137-050-B22-04-08

M5137-050-B22-04-08

Shoulder milling cutters
M5137-050-B22-04-08
Walter AG
€405.06

€405.06 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 6 cutting edges per indexable insert

Shoulder milling cutters M5137 • Parallel bore DIN 138 transverse keyway • κ=90° • metric • TN .. 1605 .. • Dc=50mm • Z=4

Product Details

Main application
ISO K
ISO M
ISO P
ISO S

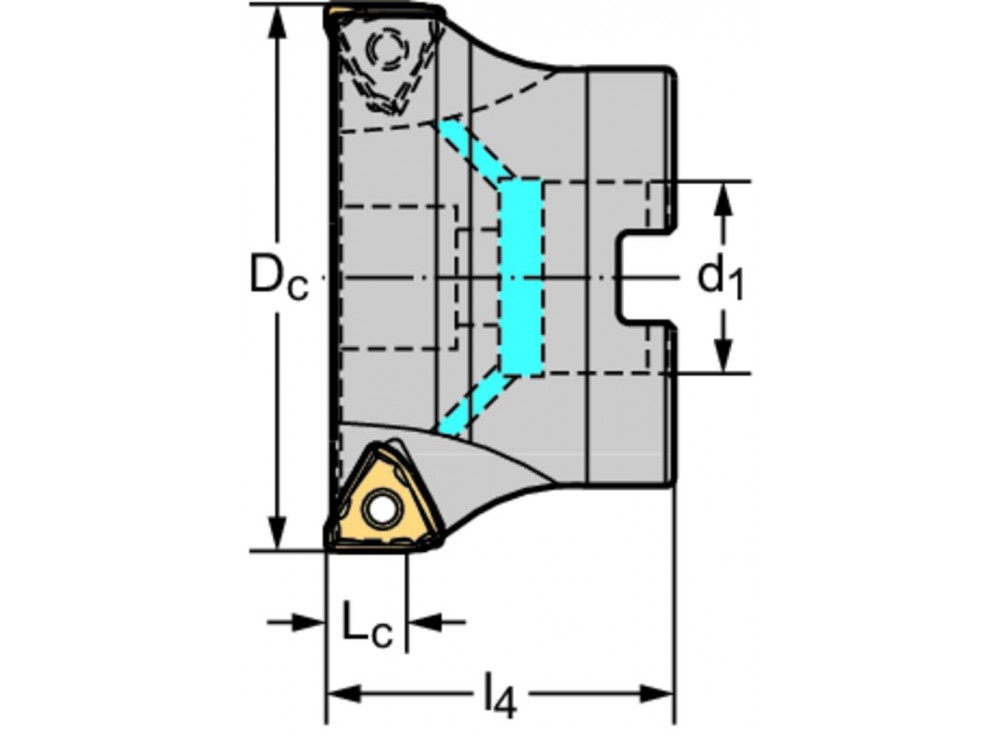

Connection diameter [d 1]
22 mm
Cutting edge diameter [D c]
50 mm
Cutting edge length [L c]
8 mm
Maximum admissable speed [n max [rpm]]
10700
Maximum ramping angle [E]
1,6 Deg
Maximum projection length [l 4]
40 mm
Number of indexable inserts [No. of indexable inserts]
4
Weight of item
0,26 kg
Number of teeth [Z]
4
Weight
0.255 kg
