M5130-028-A25-02-15
Image may not correspond to reality
  • M5130-028-A25-02-15
  • M5130-028-A25-02-15

M5130-028-A25-02-15

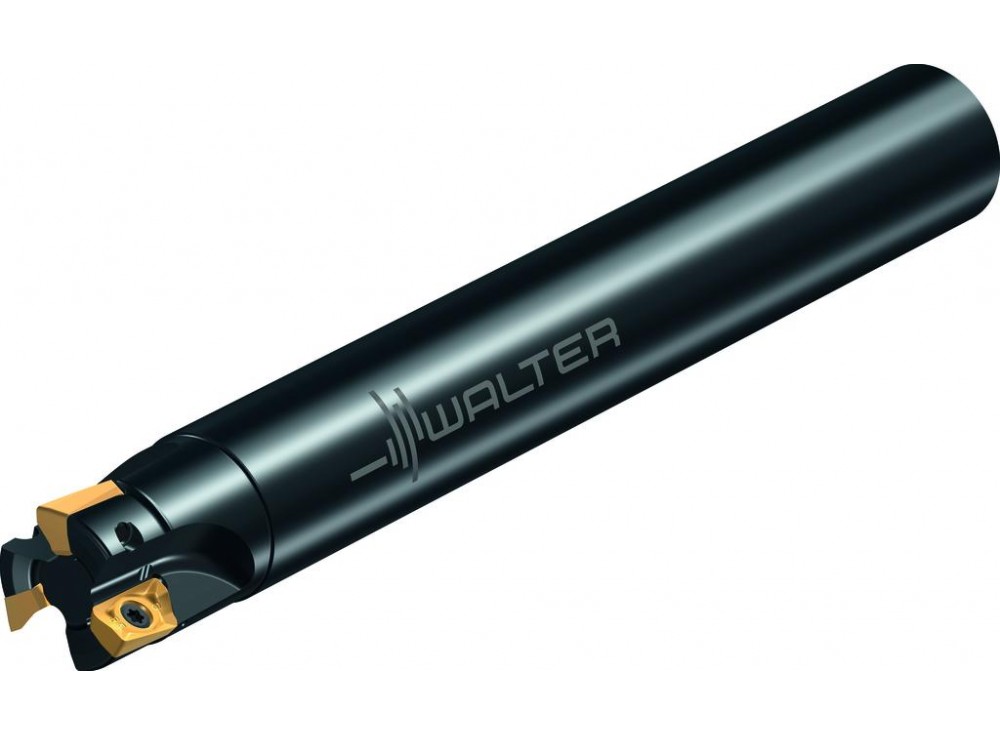

Shoulder milling cutters
M5130-028-A25-02-15
Walter AG
€302.72

€302.72 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 2 cutting edges per indexable insert

Shoulder milling cutters M5130 • Parallel shank • κ=90° • metric • BC .. 1605 .. • Dc=28mm • Z=2

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O

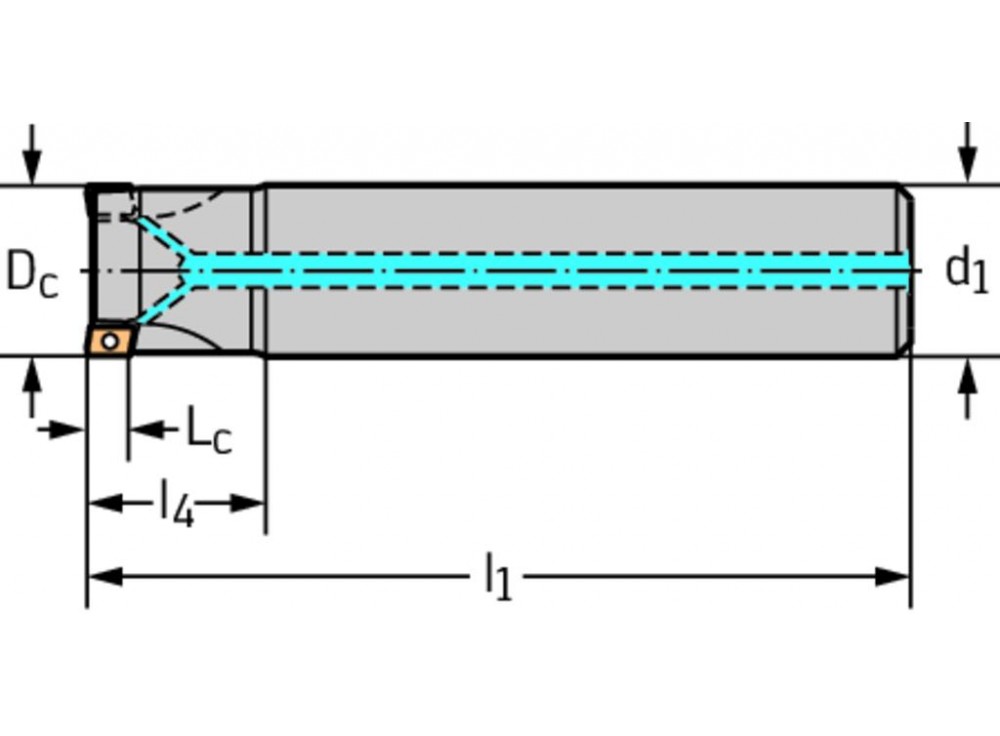

Cutting edge diameter [D c]
28 mm
Cutting edge length [L c]
15 mm
Overall length [l 1]
200 mm
Maximum projection length [l 4]
38 mm
Number of indexable inserts [No. of indexable inserts]
2
Connection diameter [d 1]
25 mm
Weight of item
0,7 kg
Number of teeth [Z]
2
Weight
0.697 kg
