M5130-022-A20-02-12
Image may not correspond to reality
  • M5130-022-A20-02-12
  • M5130-022-A20-02-12

M5130-022-A20-02-12

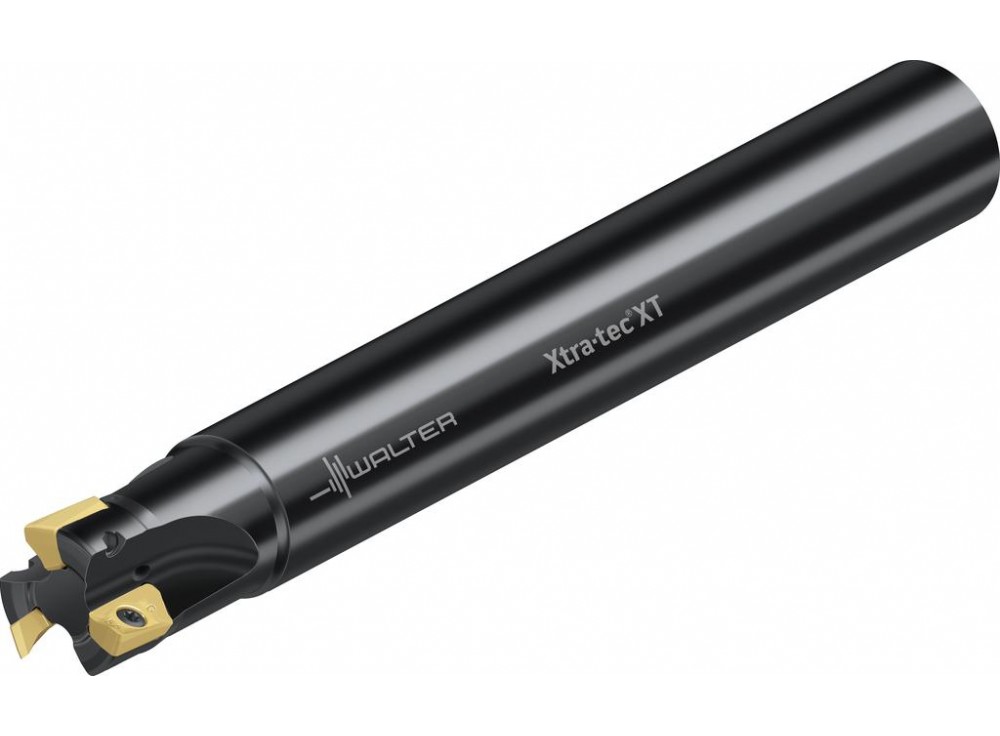

Shoulder milling cutters
M5130-022-A20-02-12
Walter AG
€278.64

€278.64 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 2 cutting edges per indexable insert

Shoulder milling cutters M5130 • Parallel shank • κ=90° • metric • BC .. 1204 .. • Dc=22mm • Z=2

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O

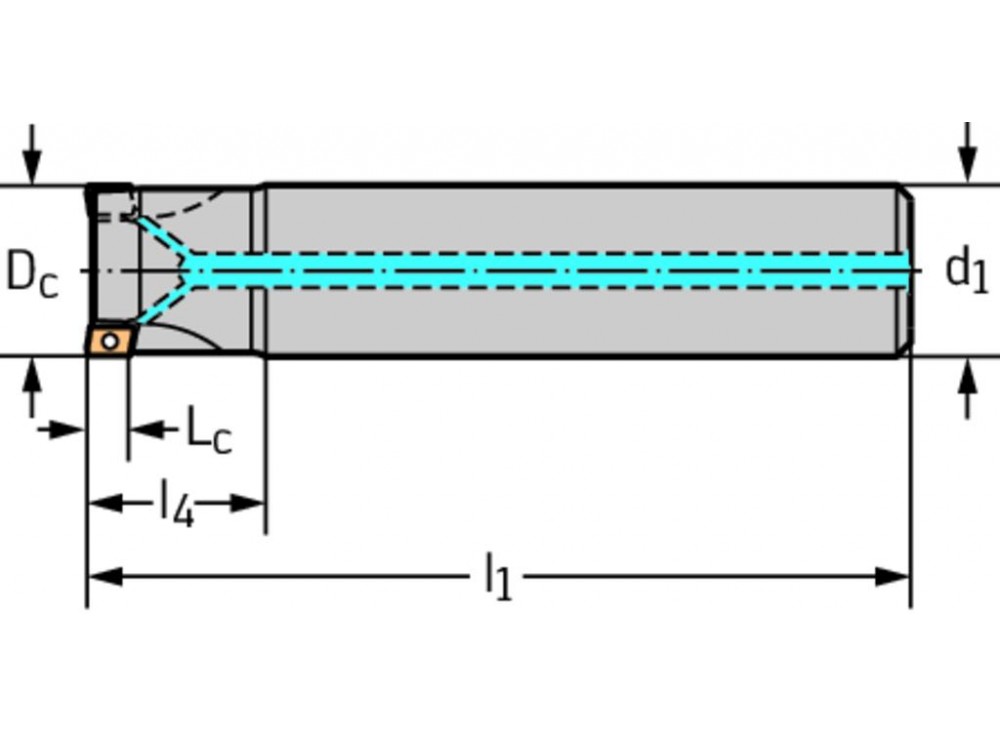

Cutting edge diameter [D c]
22 mm
Cutting edge length [L c]
12 mm
Overall length [l 1]
200 mm
Maximum projection length [l 4]
38 mm
Number of indexable inserts [No. of indexable inserts]
2
Connection diameter [d 1]
20 mm
Weight of item
0,4 kg
Number of teeth [Z]
2
Weight
0.445 kg
