M5130-050-T45-06-15
Image may not correspond to reality
  • M5130-050-T45-06-15
  • M5130-050-T45-06-15

M5130-050-T45-06-15

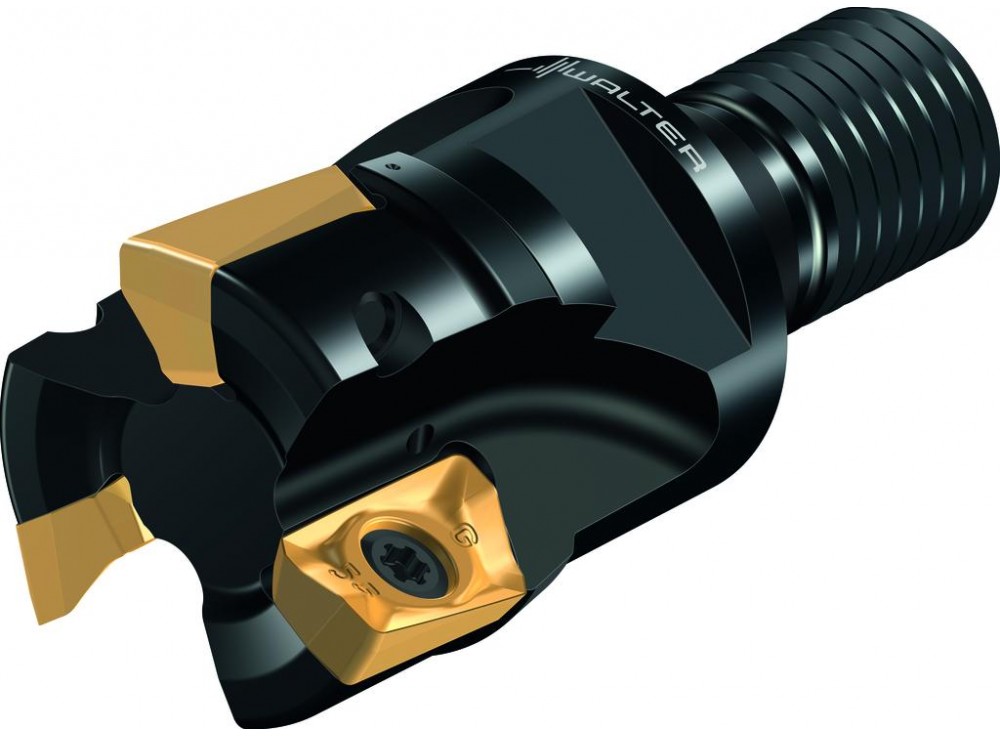

Shoulder milling cutters
M5130-050-T45-06-15
Walter AG
€475.58

€475.58 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 2 cutting edges per indexable insert

Shoulder milling cutters M5130 • ScrewFit • κ=90° • metric • BC .. 1605 .. • Dc=50mm • Z=6

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O

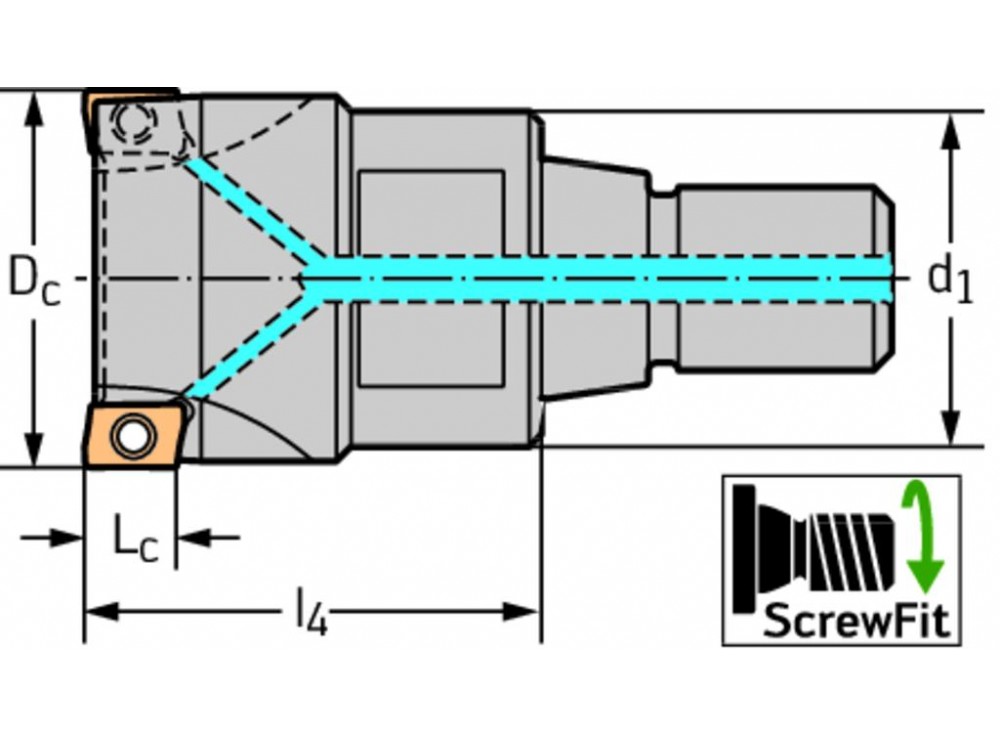

Connection diameter [d 1]
T45 mm
Cutting edge diameter [D c]
50 mm
Cutting edge length [L c]
15 mm
Maximum admissable speed [n max [rpm]]
14900
Maximum ramping angle [E]
3 Deg
Maximum projection length [l 4]
40 mm
Number of indexable inserts [No. of indexable inserts]
6
Weight of item
0,45 kg
Number of teeth [Z]
6
Weight
0.446 kg
