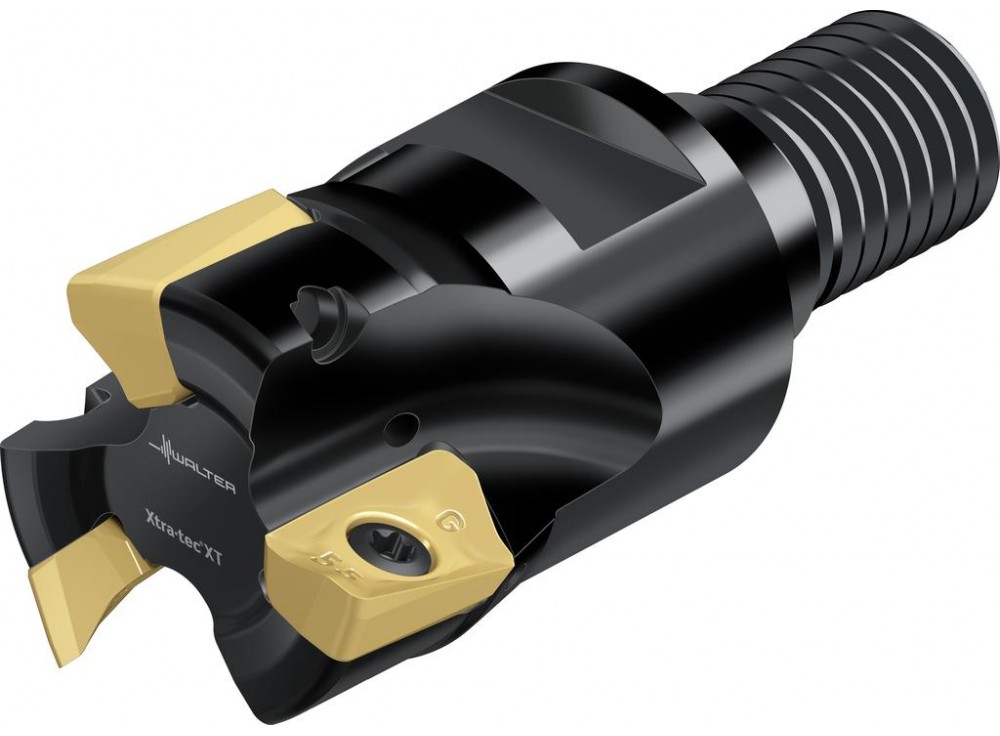

M5130.051-T45-07-12
Image may not correspond to reality
  • M5130.051-T45-07-12
  • M5130.051-T45-07-12

M5130.051-T45-07-12

Shoulder milling cutters
M5130.051-T45-07-12
Walter AG
€540.80

€540.80 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 2 cutting edges per indexable insert

Shoulder milling cutters M5130 • ScrewFit • κ=90° • inch • BC .. 1204 .. • Dc=51mm • Z=7

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O

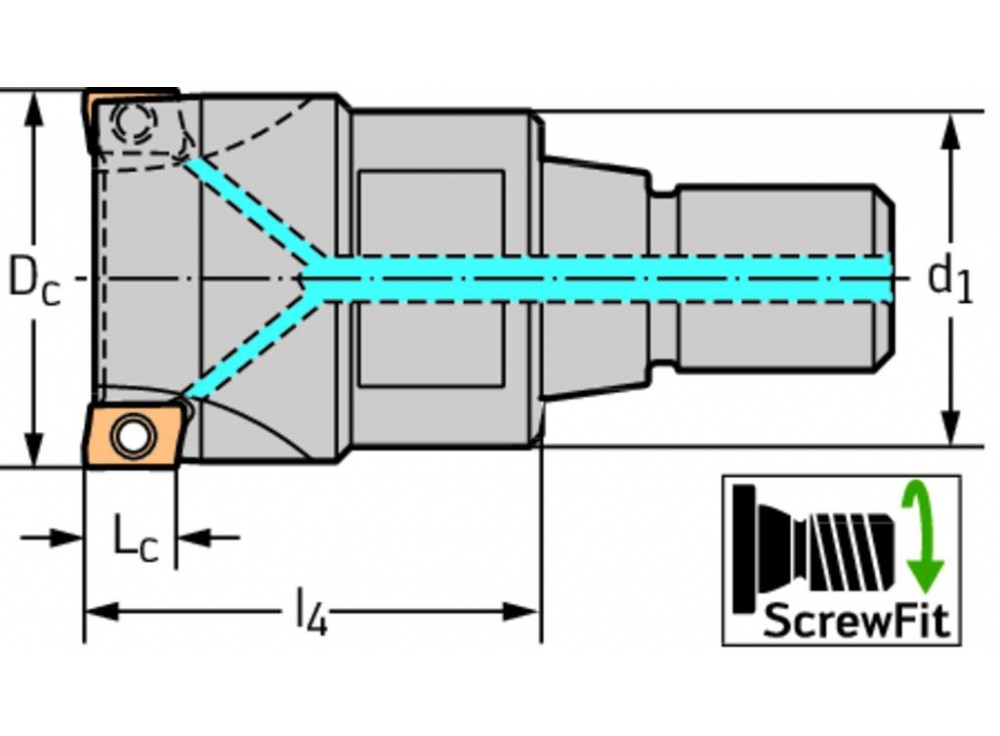

Cutting edge diameter [D c]
2 inch
Cutting edge length [L c]
0,472 inch
Maximum projection length [l 4]
1,575 inch
Number of indexable inserts [No. of indexable inserts]
7
Connection diameter [d 1]
T45 inch
Weight of item
0,5 lbs
Number of teeth [Z]
7
Weight
0.488 kg
