M5130-040-W32-06-12
Image may not correspond to reality
  • M5130-040-W32-06-12
  • M5130-040-W32-06-12

M5130-040-W32-06-12

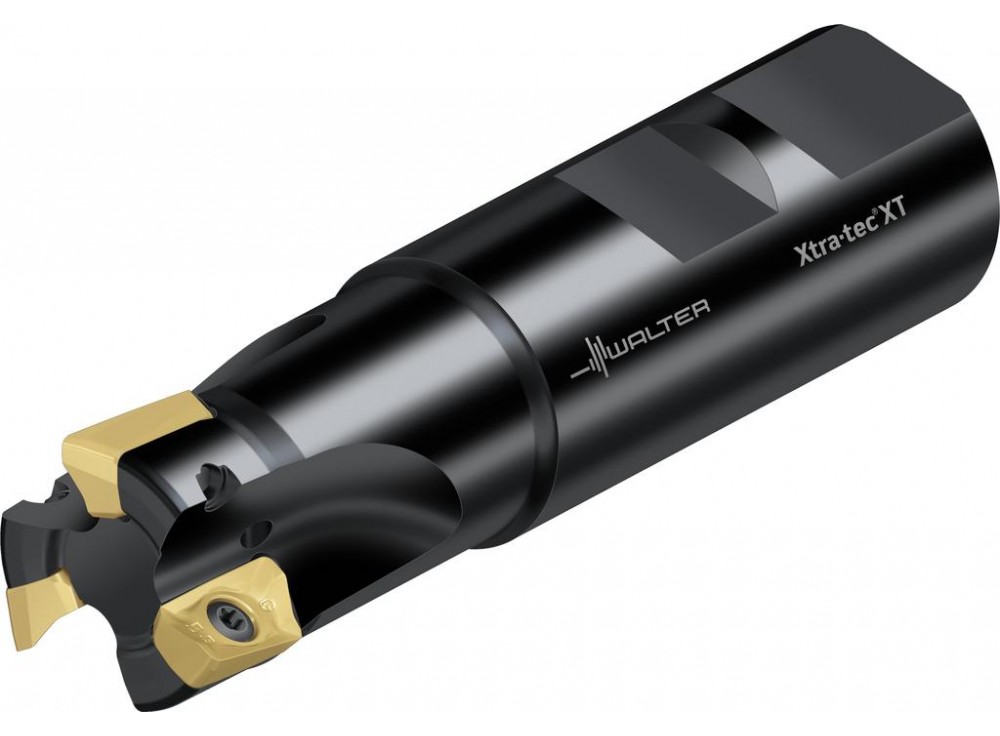

Shoulder milling cutters
M5130-040-W32-06-12
Walter AG
€396.46

€396.46 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 2 cutting edges per indexable insert

Shoulder milling cutters M5130 • DIN 1835 B shank • κ=90° • metric • BC .. 1204 .. • Dc=40mm • Z=6

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O

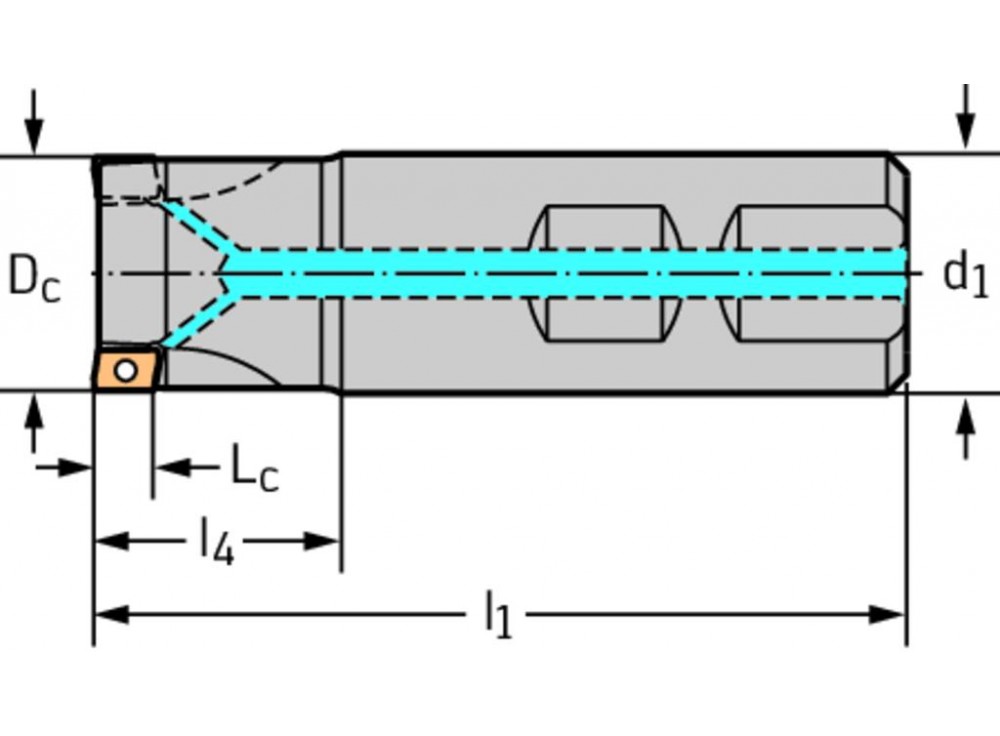

Cutting edge diameter [D c]
40 mm
Cutting edge length [L c]
12 mm
Overall length [l 1]
110 mm
Maximum projection length [l 4]
49 mm
Number of indexable inserts [No. of indexable inserts]
6
Connection diameter [d 1]
32 mm
Weight of item
0,6 kg
Number of teeth [Z]
6
Weight
0.648 kg
