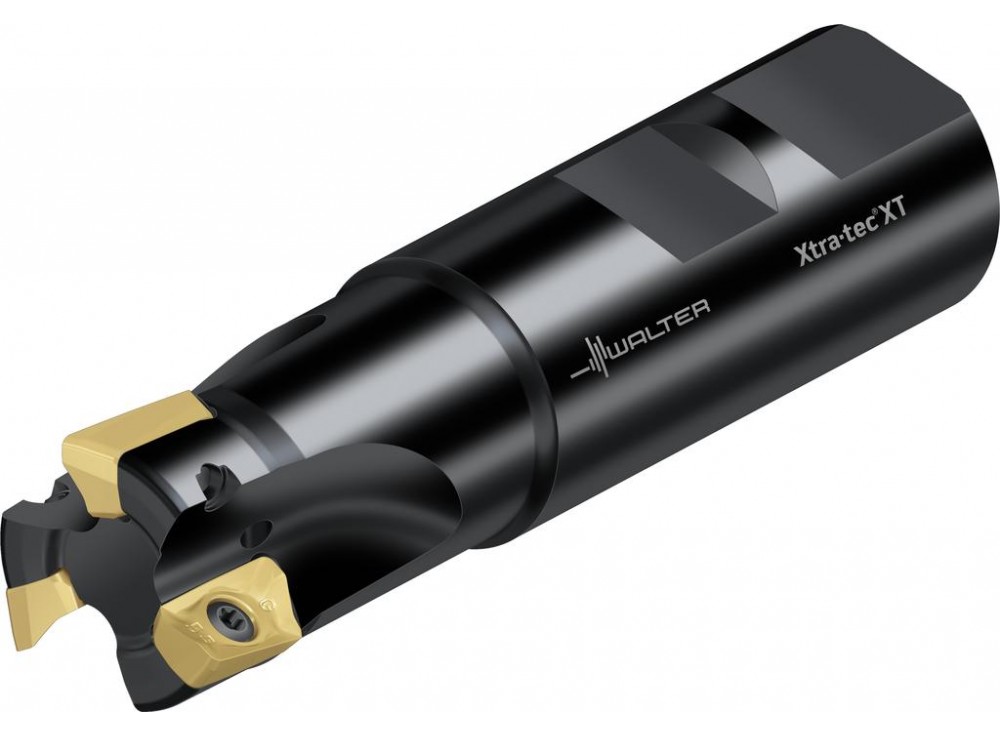

M5130-032-W32-04-12
Image may not correspond to reality
  • M5130-032-W32-04-12
  • M5130-032-W32-04-12

M5130-032-W32-04-12

Shoulder milling cutters
M5130-032-W32-04-12
Walter AG
€344.00

€344.00 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 2 cutting edges per indexable insert

Shoulder milling cutters M5130 • DIN 1835 B shank • κ=90° • metric • BC .. 1204 .. • Dc=32mm • Z=4

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O

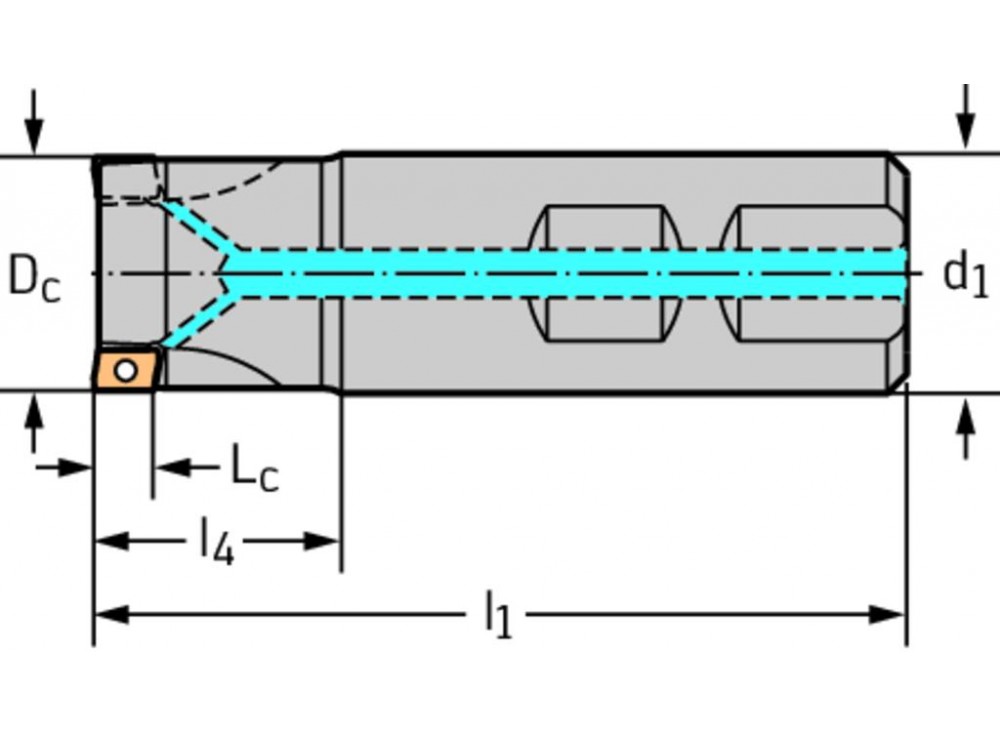

Cutting edge diameter [D c]
32 mm
Cutting edge length [L c]
12 mm
Overall length [l 1]
110 mm
Maximum projection length [l 4]
49 mm
Number of indexable inserts [No. of indexable inserts]
4
Connection diameter [d 1]
32 mm
Weight of item
0,5 kg
Number of teeth [Z]
4
Weight
0.544 kg
