M5130-040-A40-04-12
Image may not correspond to reality
  • M5130-040-A40-04-12
  • M5130-040-A40-04-12

M5130-040-A40-04-12

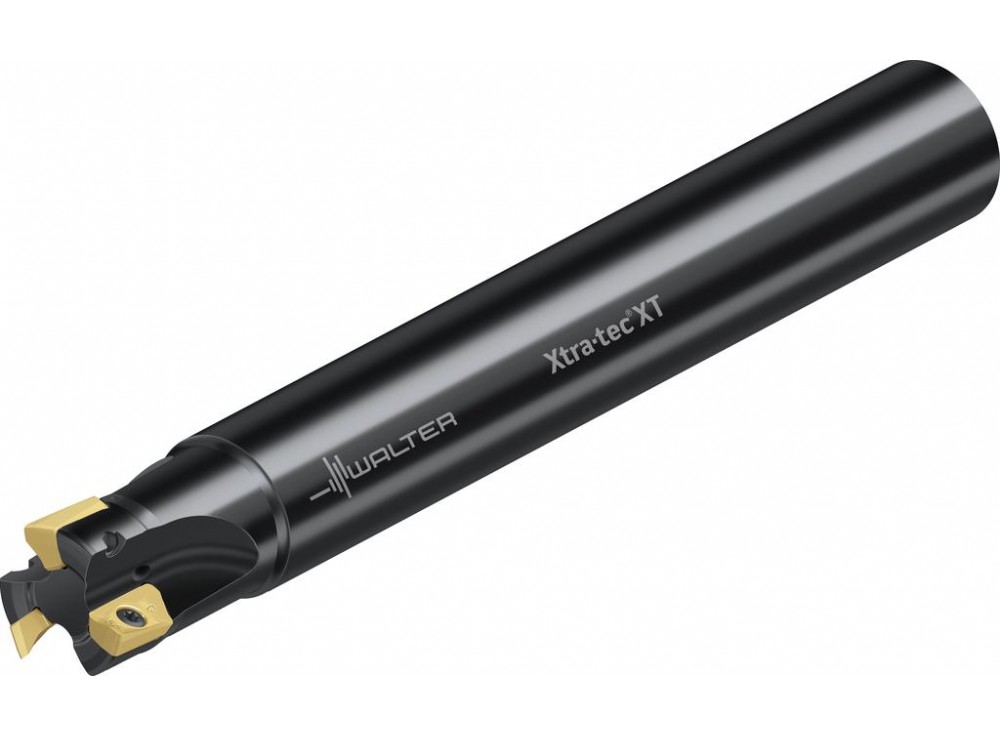

Shoulder milling cutters
M5130-040-A40-04-12
Walter AG
€362.06

€362.06 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 2 cutting edges per indexable insert

Shoulder milling cutters M5130 • Parallel shank • κ=90° • metric • BC .. 1204 .. • Dc=40mm • Z=4

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O

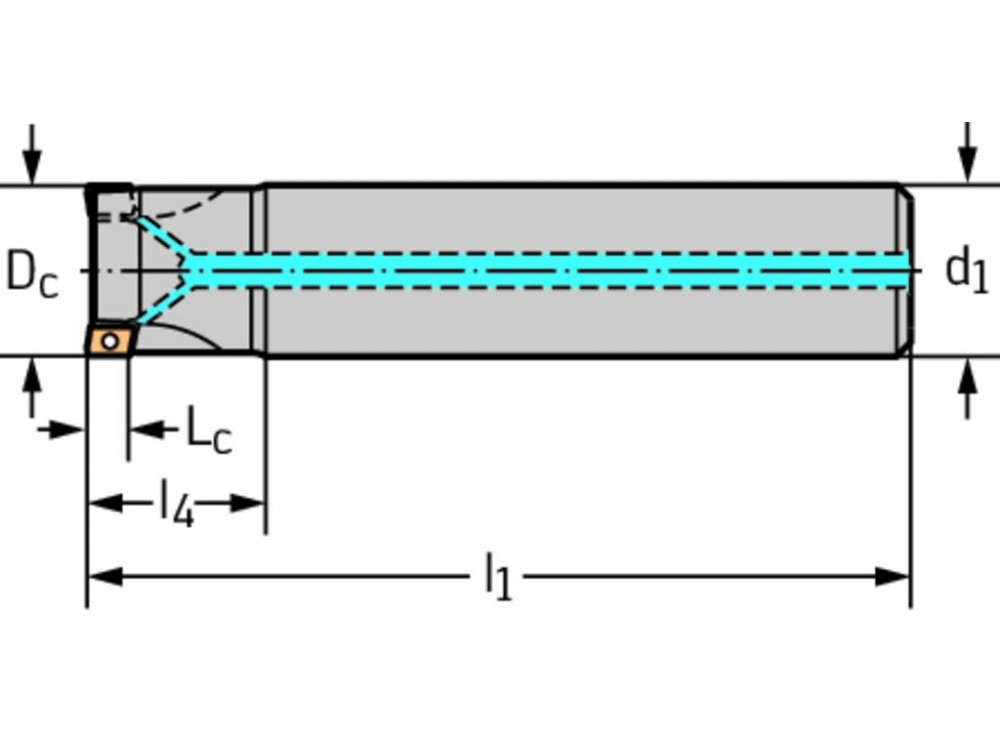

Cutting edge diameter [D c]
40 mm
Cutting edge length [L c]
12 mm
Overall length [l 1]
250 mm
Maximum projection length [l 4]
44 mm
Number of indexable inserts [No. of indexable inserts]
4
Connection diameter [d 1]
40 mm
Weight of item
2,2 kg
Number of teeth [Z]
4
Weight
2.248 kg
