M5130.051-B19-08-09
Image may not correspond to reality
  • M5130.051-B19-08-09
  • M5130.051-B19-08-09

M5130.051-B19-08-09

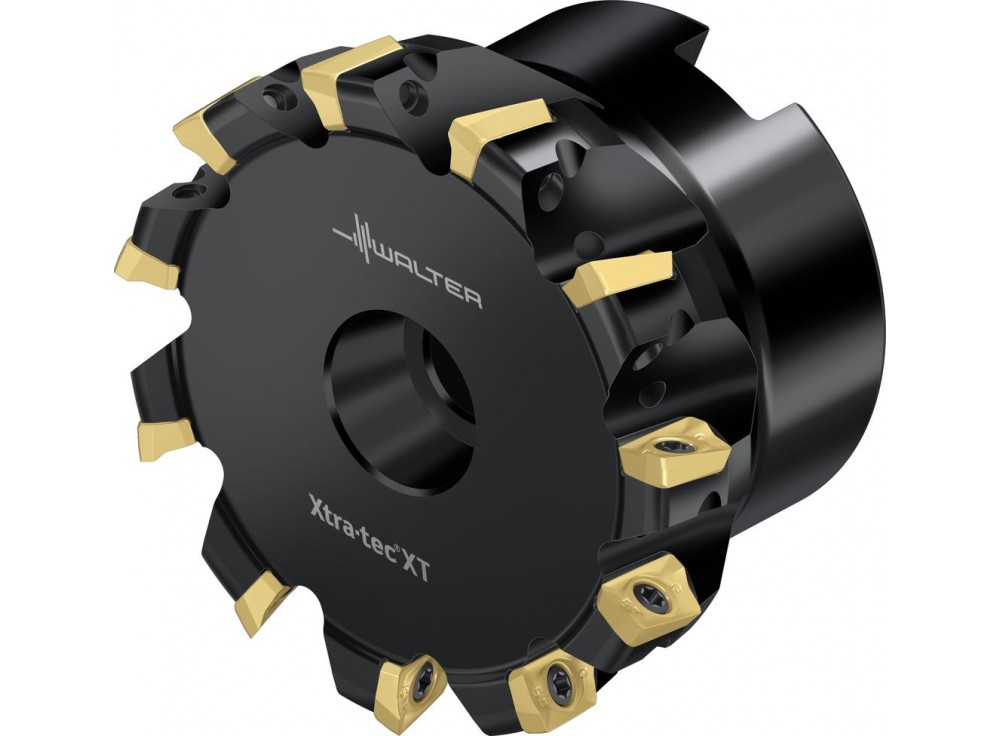

Shoulder milling cutters
M5130.051-B19-08-09
Walter AG
€491.92

€491.92 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 2 cutting edges per indexable insert

Shoulder milling cutters M5130 • Parallel bore DIN 138 transverse keyway • κ=90° • inch • BC .. 0903 .. • Dc=51mm • Z=8

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O

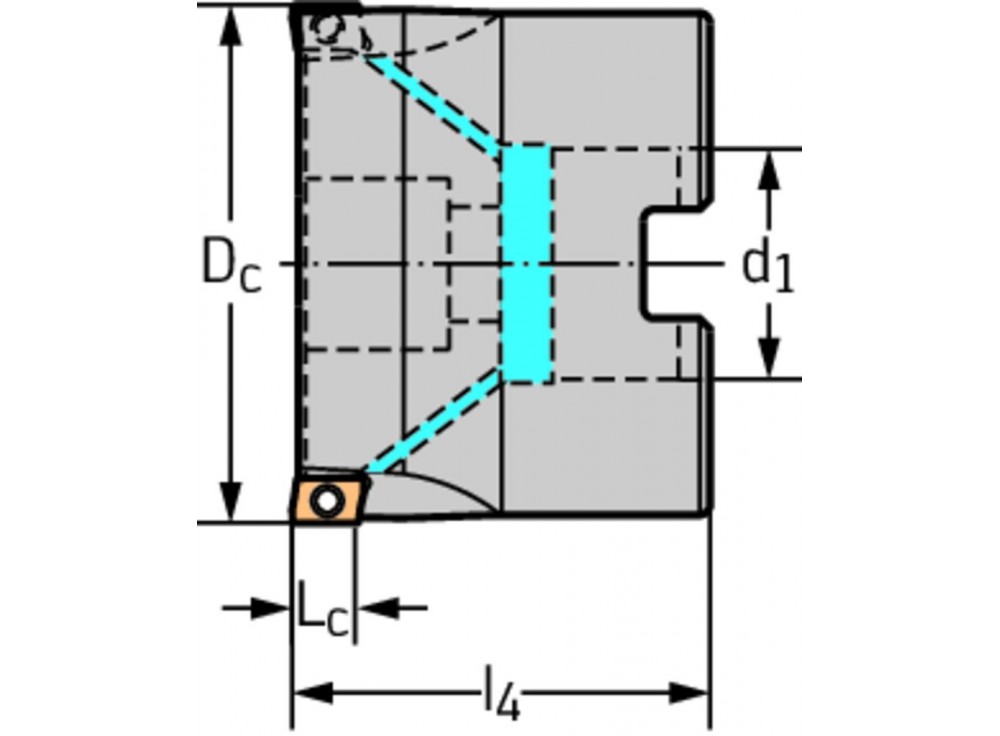

Cutting edge diameter [D c]
2 inch
Cutting edge length [L c]
0,354 inch
Maximum projection length [l 4]
1,575 inch
Number of indexable inserts [No. of indexable inserts]
8
Connection diameter [d 1]
3/4 inch
Weight of item
0,4 lbs
Number of teeth [Z]
8
Weight
0.367 kg
