M5130.026-W26-04-09
Image may not correspond to reality
  • M5130.026-W26-04-09
  • M5130.026-W26-04-09

M5130.026-W26-04-09

Shoulder milling cutters
M5130.026-W26-04-09
Walter AG
€370.96

€370.96 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 2 cutting edges per indexable insert

Shoulder milling cutters M5130 • DIN 1835 B shank • κ=90° • inch • BC .. 0903 .. • Dc=25mm • Z=4

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O

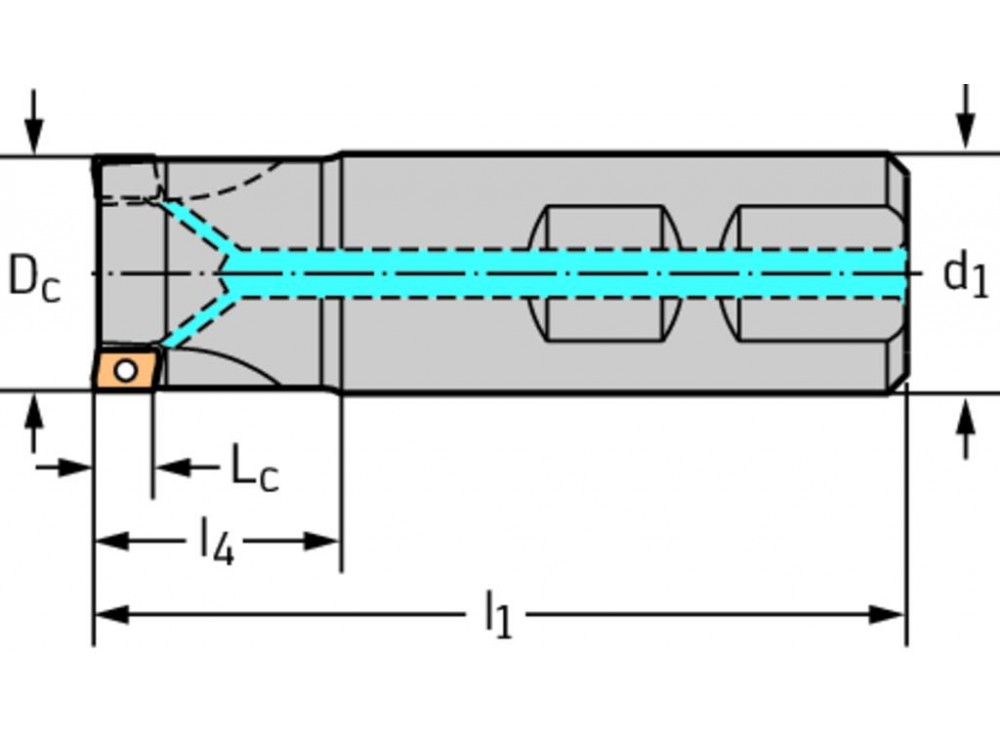

Cutting edge diameter [D c]
1 inch
Cutting edge length [L c]
0,354 inch
Overall length [l 1]
3,462 inch
Maximum projection length [l 4]
1,181 inch
Number of indexable inserts [No. of indexable inserts]
4
Connection diameter [d 1]
1 inch
Weight of item
0,3 lbs
Number of teeth [Z]
4
Weight
0.284 kg
