M5130.038-T36-10-05
Image may not correspond to reality
  • M5130.038-T36-10-05
  • M5130.038-T36-10-05

M5130.038-T36-10-05

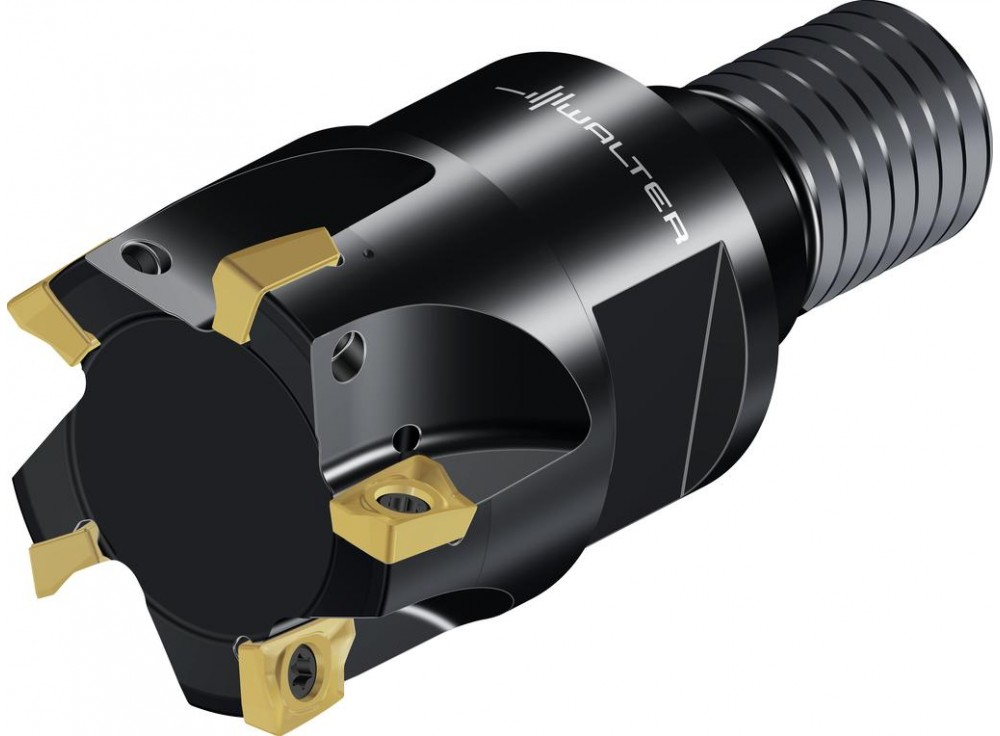

Shoulder milling cutters
M5130.038-T36-10-05
Walter AG
€448.06

€448.06 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 2 cutting edges per indexable insert

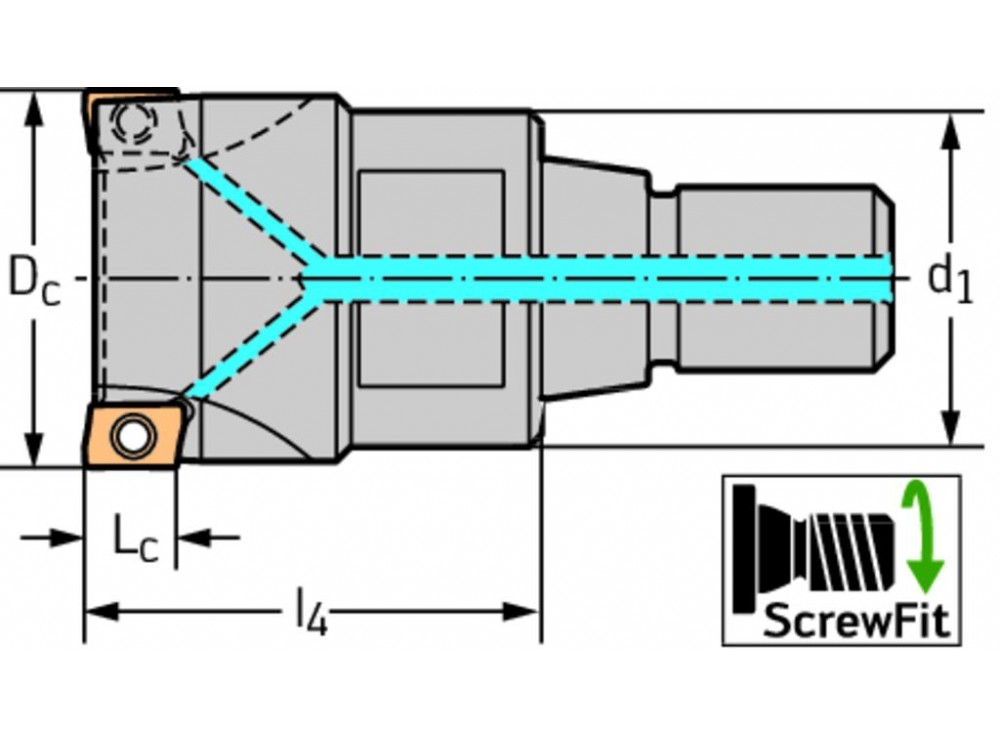

Shoulder milling cutters M5130 • ScrewFit • κ=90° • inch • AC .. 0602 .. • Dc=38mm • Z=10

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O
Cutting edge diameter [D c]
1,5 inch
Cutting edge length [L c]
0,197 inch
Maximum projection length [l 4]
1,378 inch
Number of indexable inserts [No. of indexable inserts]
10
Connection diameter [d 1]
T36 inch
Weight of item
0,4 lbs
Number of teeth [Z]
10
Weight
0.358 kg
