M5130.031-T28-08-05
Image may not correspond to reality
  • M5130.031-T28-08-05
  • M5130.031-T28-08-05

M5130.031-T28-08-05

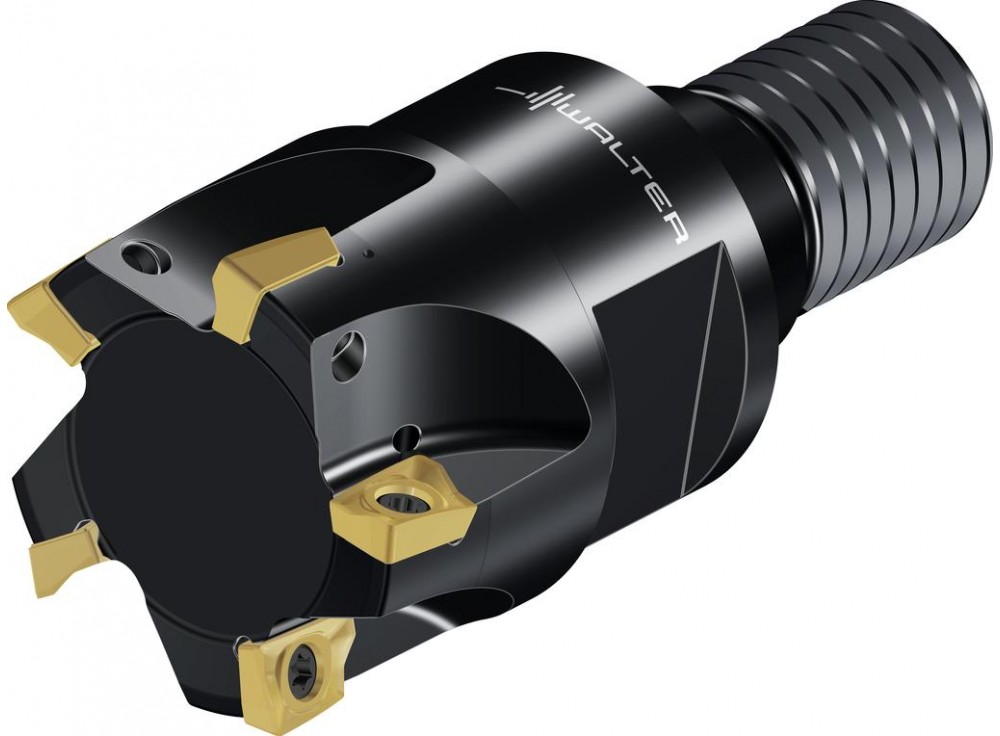

Shoulder milling cutters
M5130.031-T28-08-05
Walter AG
€409.36

€409.36 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 2 cutting edges per indexable insert

Shoulder milling cutters M5130 • ScrewFit • κ=90° • inch • AC .. 0602 .. • Dc=32mm • Z=8

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O

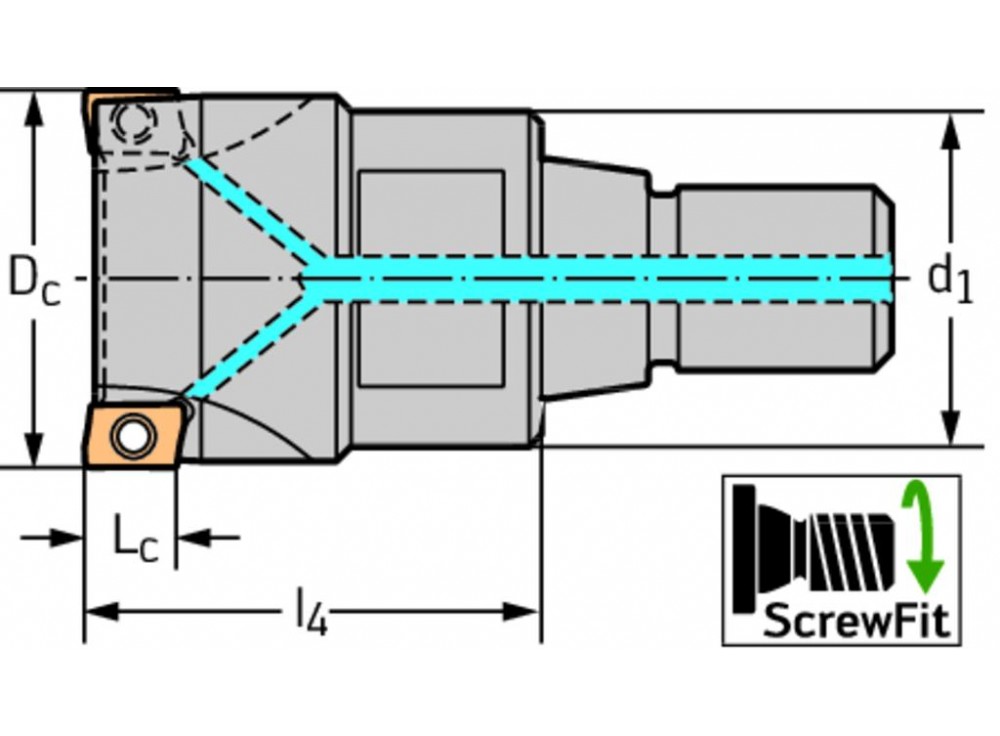

Cutting edge diameter [D c]
1,25 inch
Cutting edge length [L c]
0,197 inch
Maximum projection length [l 4]
1,378 inch
Number of indexable inserts [No. of indexable inserts]
8
Connection diameter [d 1]
T28 inch
Weight of item
0,2 lbs
Number of teeth [Z]
8
Weight
0.201 kg
