M5130.019-A19-05-05
Image may not correspond to reality
  • M5130.019-A19-05-05
  • M5130.019-A19-05-05

M5130.019-A19-05-05

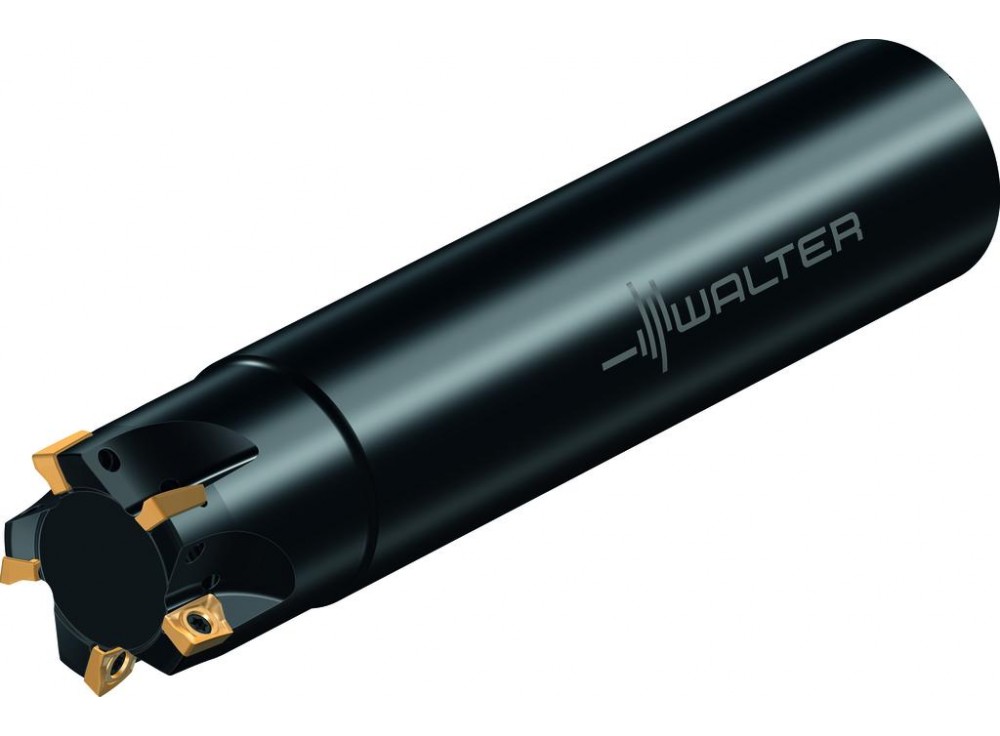

Shoulder milling cutters
M5130.019-A19-05-05
Walter AG
€322.50

€322.50 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 2 cutting edges per indexable insert

Shoulder milling cutters M5130 • Parallel shank • κ=90° • inch • AC .. 0602 .. • Dc=19mm • Z=5

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O

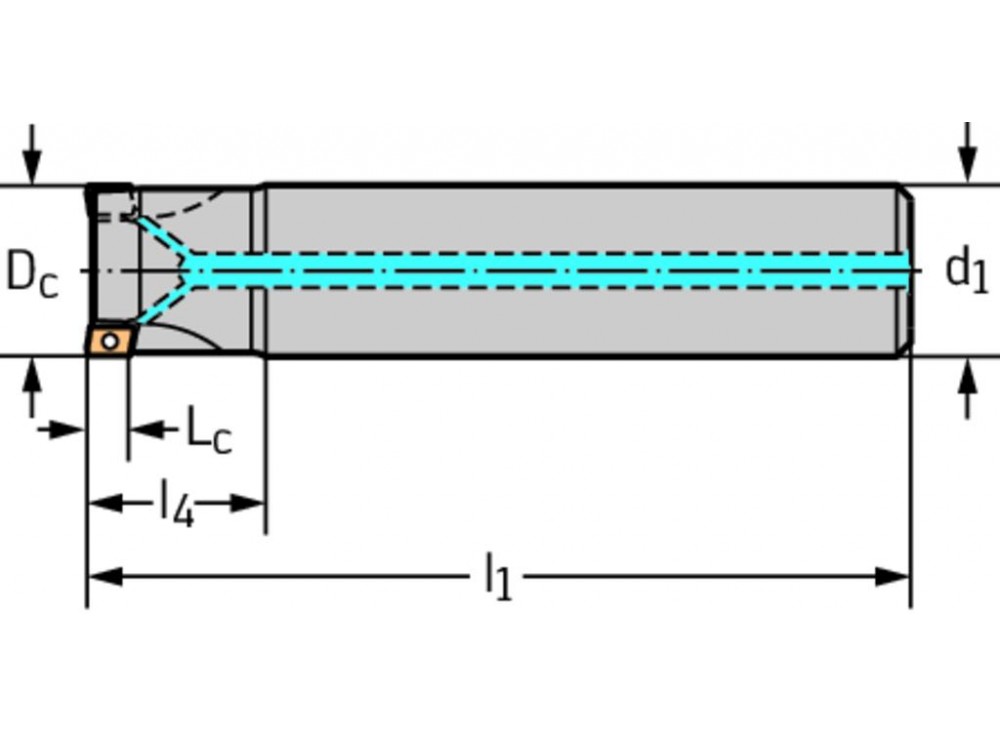

Cutting edge diameter [D c]
0,75 inch
Cutting edge length [L c]
0,197 inch
Overall length [l 1]
4,25 inch
Maximum projection length [l 4]
1 inch
Number of indexable inserts [No. of indexable inserts]
5
Connection diameter [d 1]
3/4 inch
Weight of item
0,2 lbs
Number of teeth [Z]
5
Weight
0.21 kg
