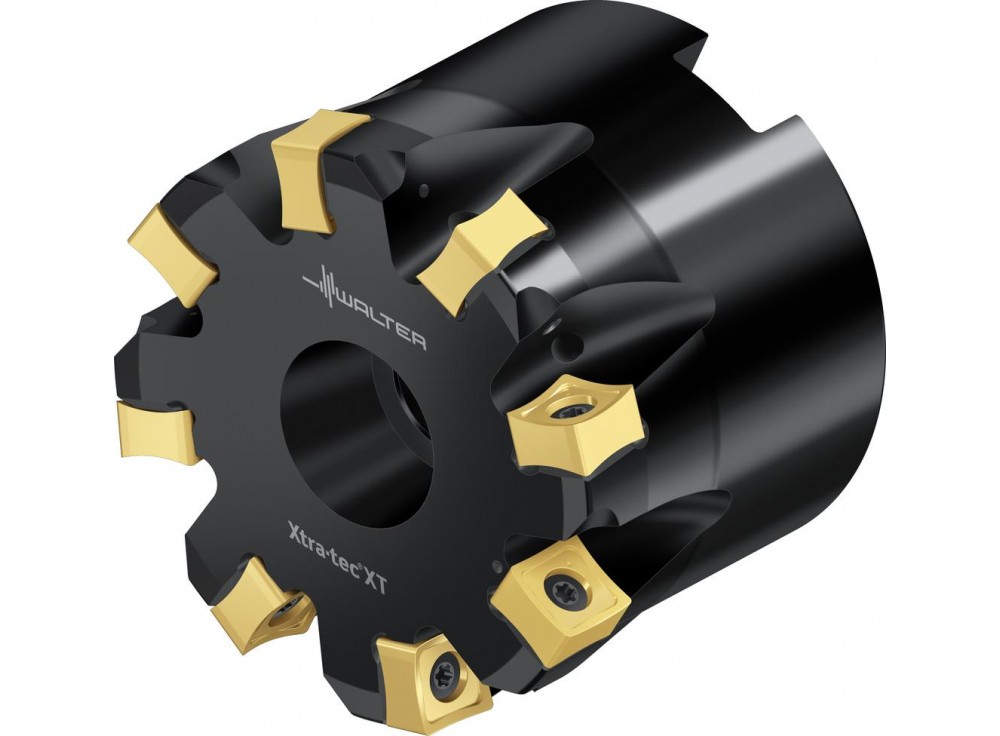

M5012-063-B27-08-08
Image may not correspond to reality
  • M5012-063-B27-08-08
  • M5012-063-B27-08-08

M5012-063-B27-08-08

Face milling cutters
M5012-063-B27-08-08
Walter AG
€602.86

€602.86 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 8 cutting edges per indexable insert

Face milling cutters M5012 • Parallel bore DIN 138 transverse keyway • κ=88° • metric • SN .. 0904 .. • Dc=63mm • Z=8

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O

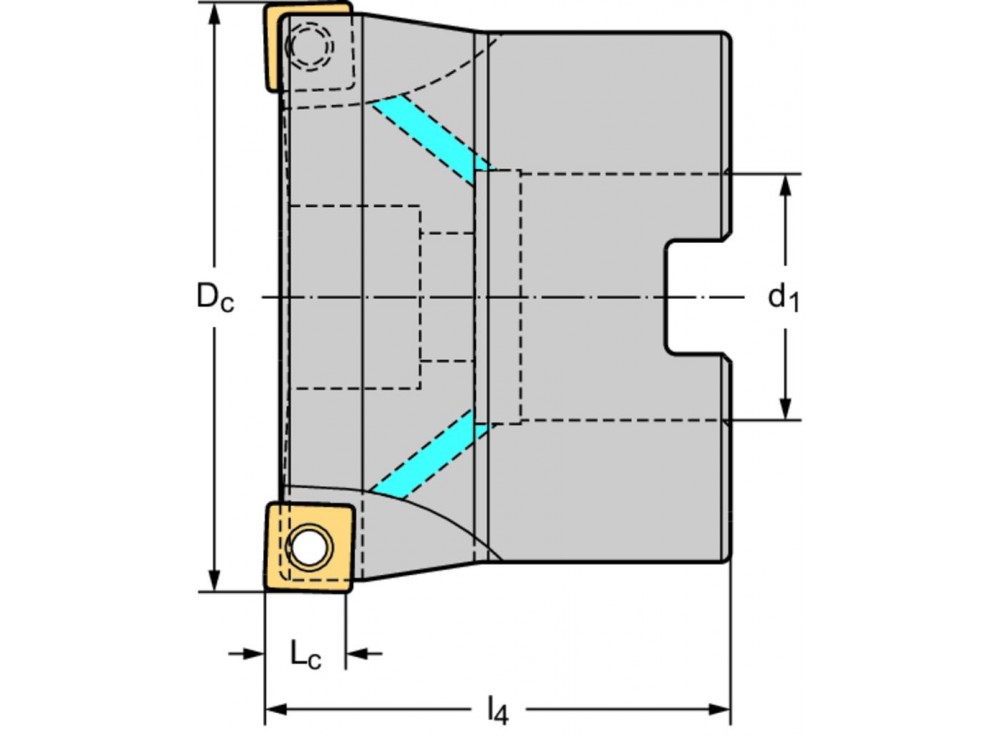

Cutting edge diameter [D c]
63 mm
Cutting edge length [L c]
8 mm
Shank diameter [d 1]
27 mm
Functional length [l 4]
50 mm
Number of indexable inserts [No. of indexable inserts]
8
Weight of item
0,6 kg
Number of teeth [Z]
8
Weight
0.598 kg
