M5012-063-B22-06-08
Image may not correspond to reality
  • M5012-063-B22-06-08
  • M5012-063-B22-06-08

M5012-063-B22-06-08

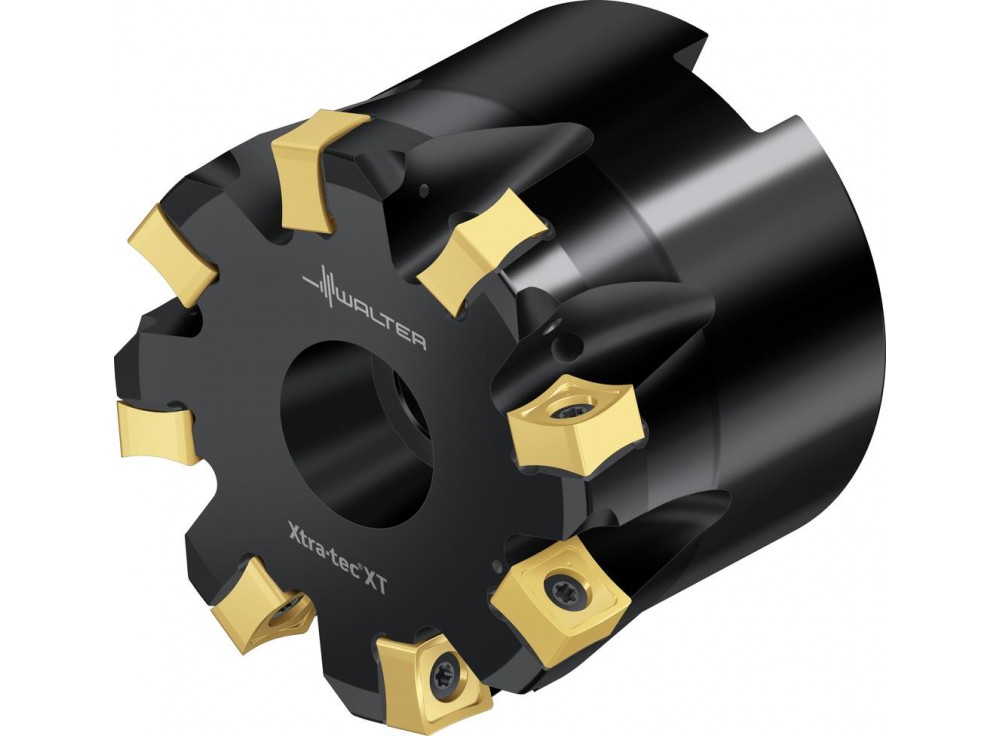

Face milling cutters
M5012-063-B22-06-08
Walter AG
€554.70

€554.70 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 8 cutting edges per indexable insert

Face milling cutters M5012 • Parallel bore DIN 138 transverse keyway • κ=88° • metric • SN .. 0904 .. • Dc=63mm • Z=6

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O

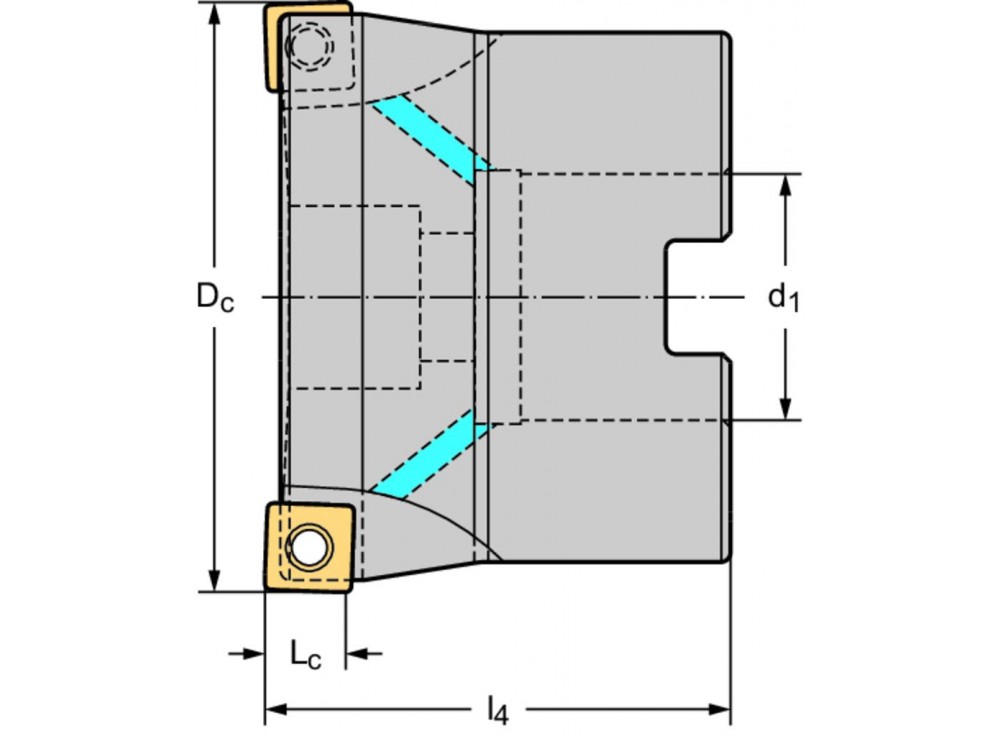

Cutting edge diameter [D c]
63 mm
Cutting edge length [L c]
8 mm
Shank diameter [d 1]
22 mm
Functional length [l 4]
40 mm
Number of indexable inserts [No. of indexable inserts]
6
Weight of item
0,5 kg
Number of teeth [Z]
6
Weight
0.508 kg
