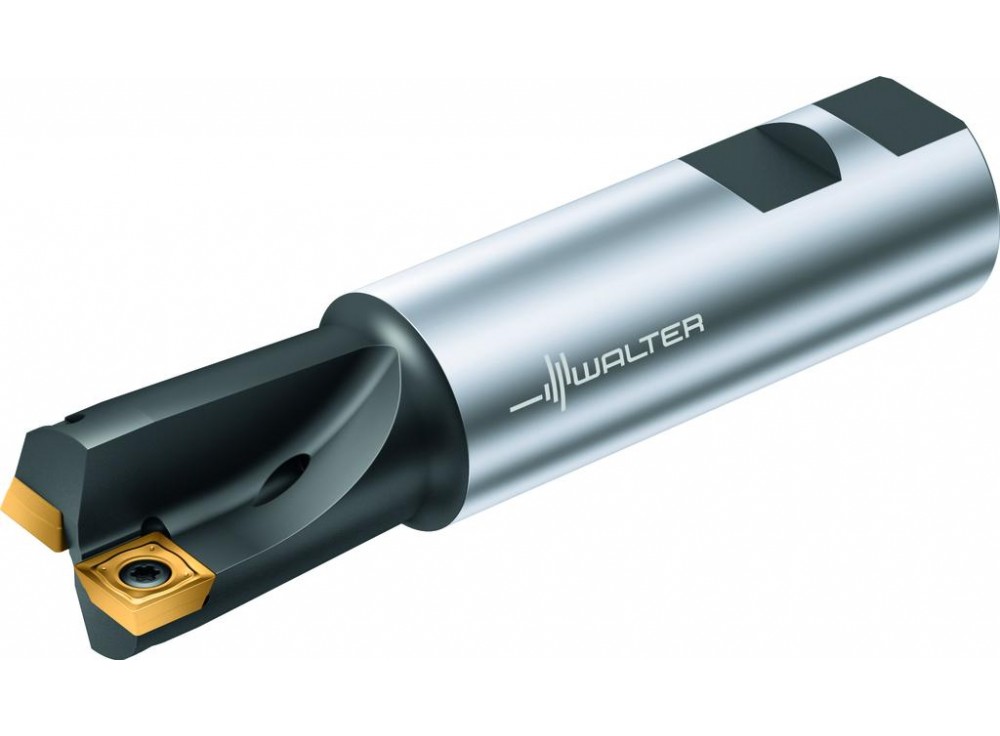

M4791.031-W31-01-12
Image may not correspond to reality
  • M4791.031-W31-01-12
  • M4791.031-W31-01-12

M4791.031-W31-01-12

Routing cutters
M4791.031-W31-01-12
Walter AG
€290.70

€290.70 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 4 cutting edges per indexable insert

Routing cutters M4791 • DIN 1835 B shank • κ=90° • inch • SD .. 1204 .. • Dc=32mm • Z=1

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H

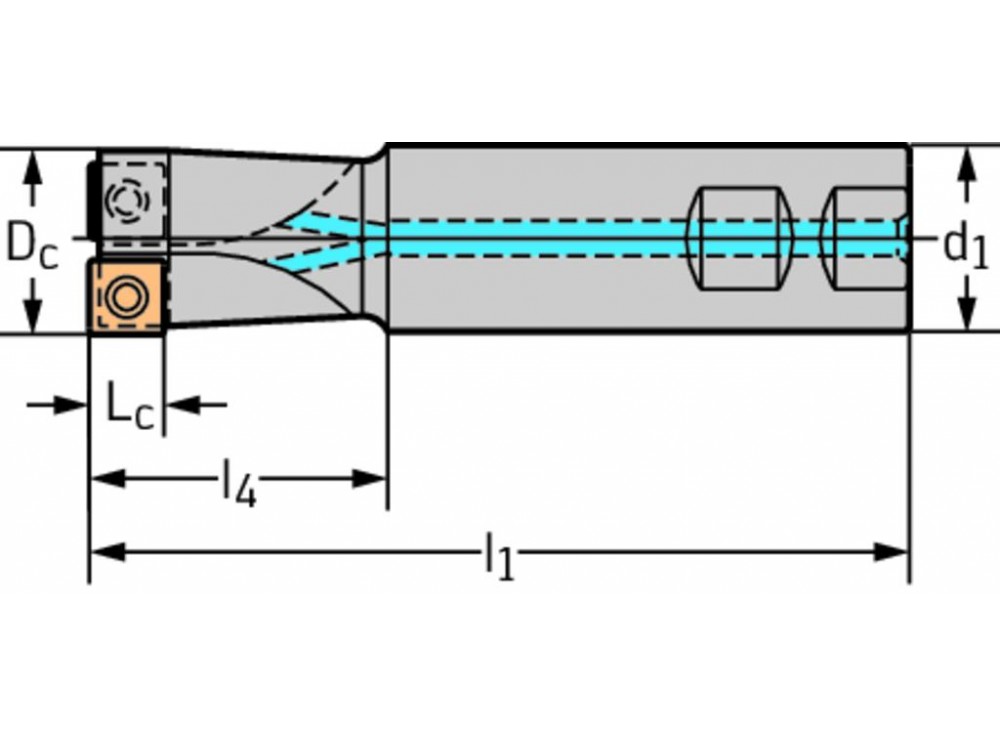

Cutting edge diameter [D c]
1,25 inch
Cutting edge length [L c]
0,457 inch
Overall length [l 1]
5,5 inch
Maximum projection length [l 4]
3,219 inch
Number of indexable inserts [No. of indexable inserts]
2
Connection diameter [d 1]
1 1/4 inch
Weight of item
0,7 lbs
Number of teeth [Z]
1
Weight
0.656 kg
