M4575-032-W20-02-14
Image may not correspond to reality
  • M4575-032-W20-02-14
  • M4575-032-W20-02-14

M4575-032-W20-02-14

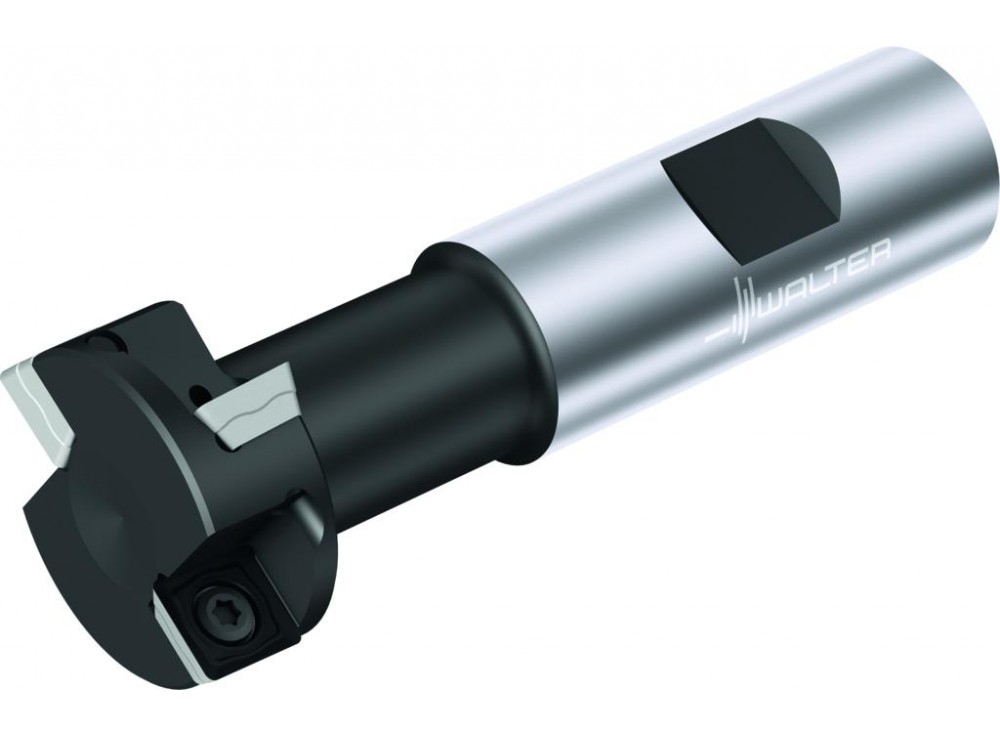

T-slot milling cutters
M4575-032-W20-02-14
Walter AG
€355.30

€355.30 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 4 cutting edges per indexable insert

T-slot milling cutters M4575 • DIN 1835 B shank • metric • κ=90° • Dc=31,75mm • SD .. 09T3 ..

Product Details

Main application
ISO K
ISO M
ISO P
ISO S

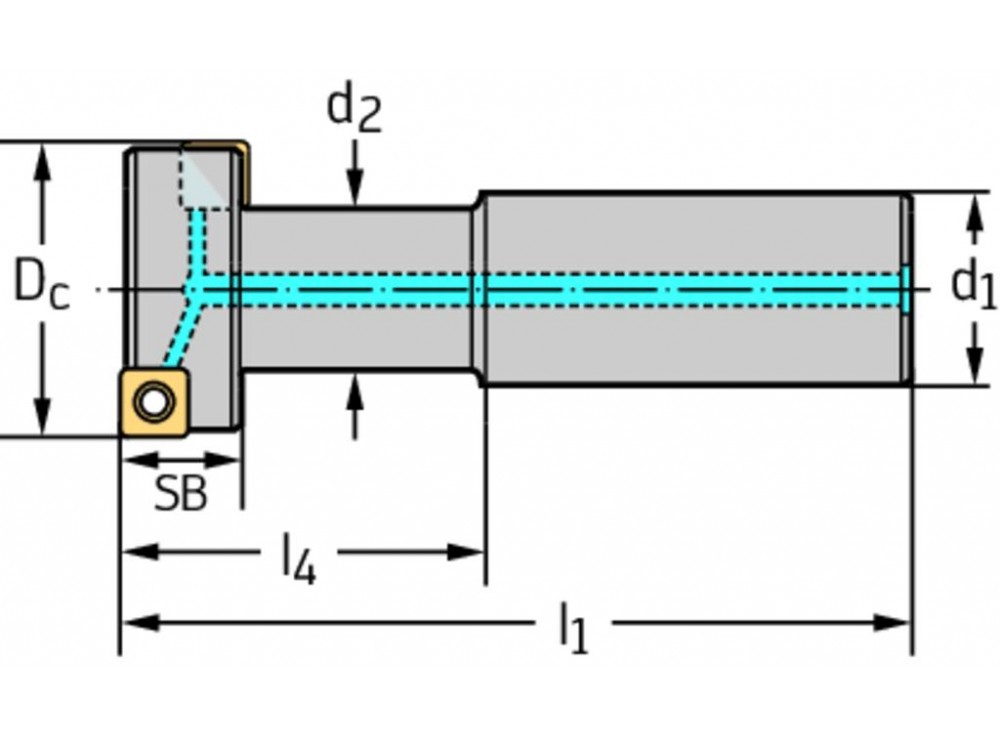

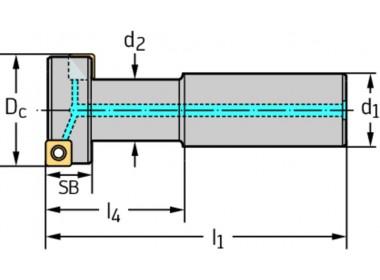

Cutting edge diameter [D c]
31,75 mm
Neck diameter [d 2]
17 mm
Max. depth of cut [SB]
13,75 mm
Overall length [l 1]
90 mm
Maximum projection length [l 4]
31 mm
Number of indexable inserts [No. of indexable inserts]
4
Connection diameter [d 1]
20 mm
Weight of item
0,2 kg
Number of teeth [Z]
2
Weight
0.197 kg
