M4132-125-B40-10-12
Image may not correspond to reality
  • M4132-125-B40-10-12
  • M4132-125-B40-10-12

M4132-125-B40-10-12

Shoulder milling cutters
M4132-125-B40-10-12
Walter AG
€759.05

€759.05 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 4 cutting edges per indexable insert

Shoulder milling cutters M4132 • Parallel bore DIN 138 transverse keyway • κ=90° • metric • SD .. 1204 .. • Dc=125mm • Z=10

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O

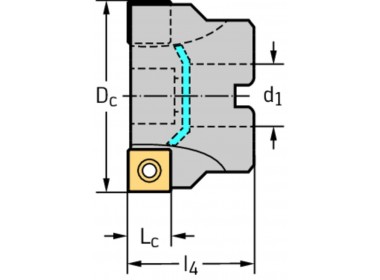

Connection diameter [d 1]
40 mm
Cutting edge diameter [D c]
125 mm
Cutting edge length [L c]
11,6 mm
Maximum admissable speed [n max [rpm]]
11300
Maximum ramping angle [E]
0 Deg
Maximum projection length [l 4]
63 mm
Number of indexable inserts [No. of indexable inserts]
10
Weight of item
3,42 kg
Number of teeth [Z]
10
Weight
3.418 kg
