M4132-040-W40-04-09
Image may not correspond to reality
  • M4132-040-W40-04-09
  • M4132-040-W40-04-09

M4132-040-W40-04-09

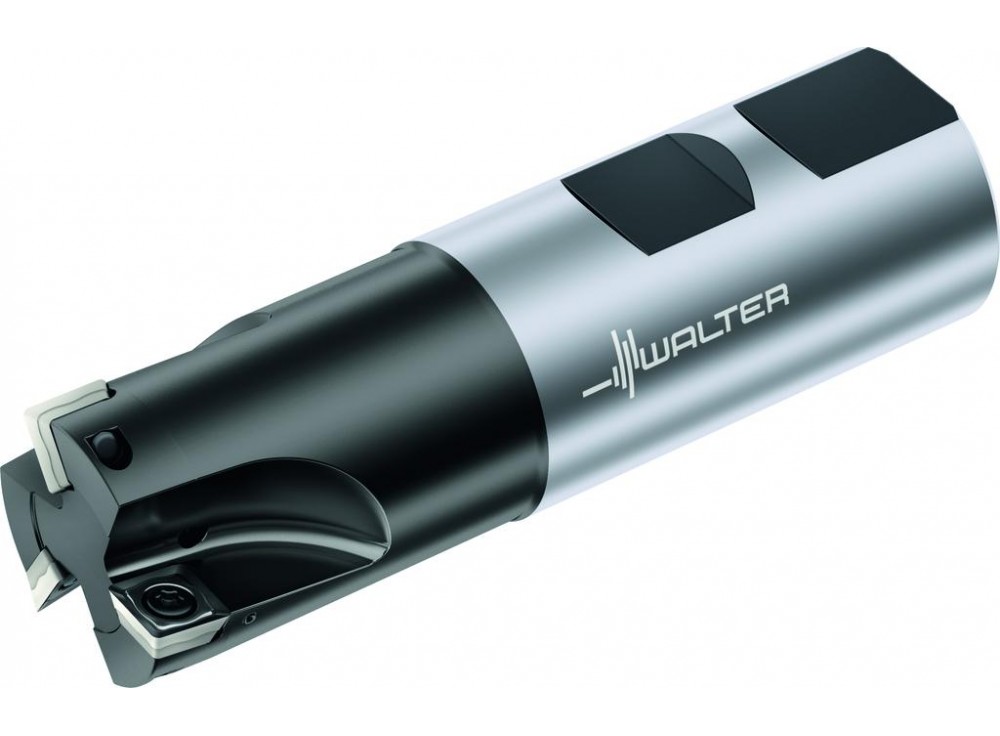

Shoulder milling cutters
M4132-040-W40-04-09
Walter AG
€322.15

€322.15 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 4 cutting edges per indexable insert

Shoulder milling cutters M4132 • DIN 1835 B shank • κ=90° • metric • SD .. 09T3 .. • Dc=40mm • Z=4

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O

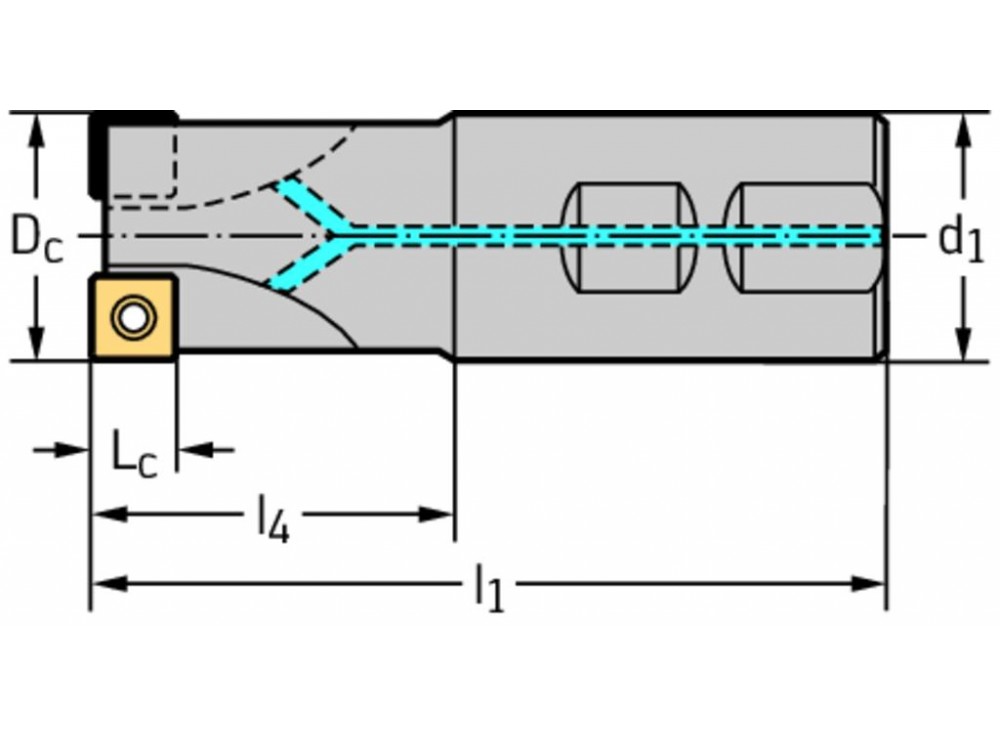

Cutting edge diameter [D c]
40 mm
Cutting edge length [L c]
8,4 mm
Overall length [l 1]
120 mm
Maximum projection length [l 4]
49 mm
Number of indexable inserts [No. of indexable inserts]
4
Connection diameter [d 1]
40 mm
Weight of item
1,1 kg
Number of teeth [Z]
4
Weight
1.07 kg
