M4132-025-T22-02-09
Image may not correspond to reality
  • M4132-025-T22-02-09
  • M4132-025-T22-02-09

M4132-025-T22-02-09

Shoulder milling cutters
M4132-025-T22-02-09
Walter AG
€285.57

€285.57 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 4 cutting edges per indexable insert

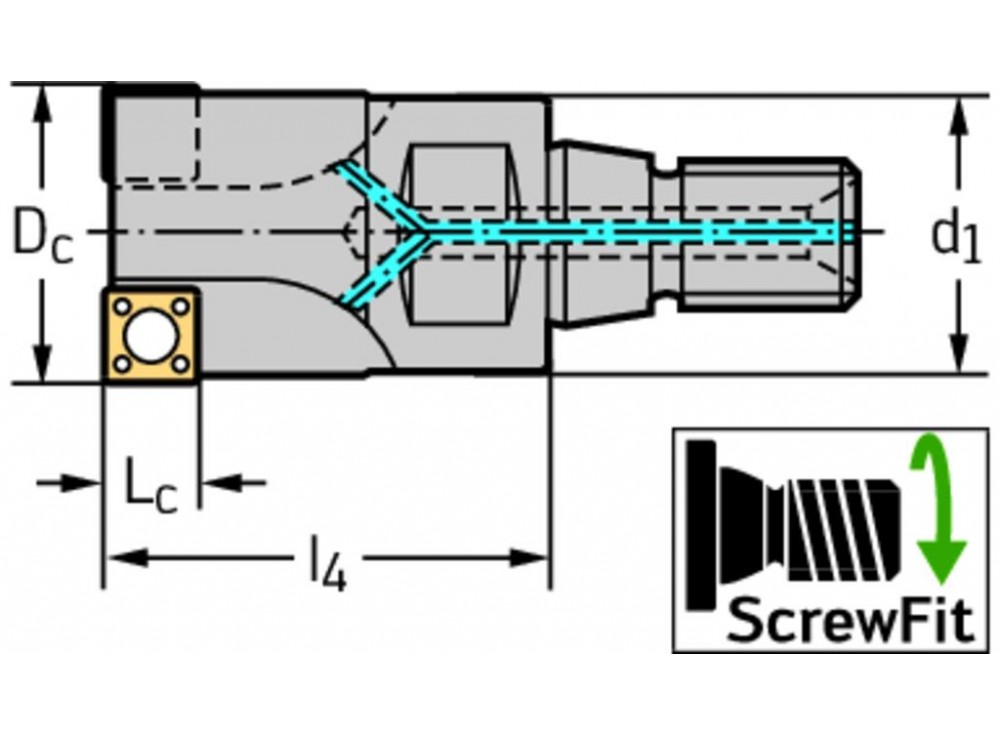

Shoulder milling cutters M4132 • ScrewFit • κ=90° • metric • SD .. 09T3 .. • Dc=25mm • Z=2

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O
Connection diameter [d 1]
T22 mm
Cutting edge diameter [D c]
25 mm
Cutting edge length [L c]
8,4 mm
Maximum admissable speed [n max [rpm]]
38000
Maximum ramping angle [E]
0 Deg
Maximum projection length [l 4]
35 mm
Number of indexable inserts [No. of indexable inserts]
2
Weight of item
0,12 kg
Number of teeth [Z]
2
Weight
0.123 kg
