M4130-025-W25-04-08
Image may not correspond to reality
  • M4130-025-W25-04-08
  • M4130-025-W25-04-08

M4130-025-W25-04-08

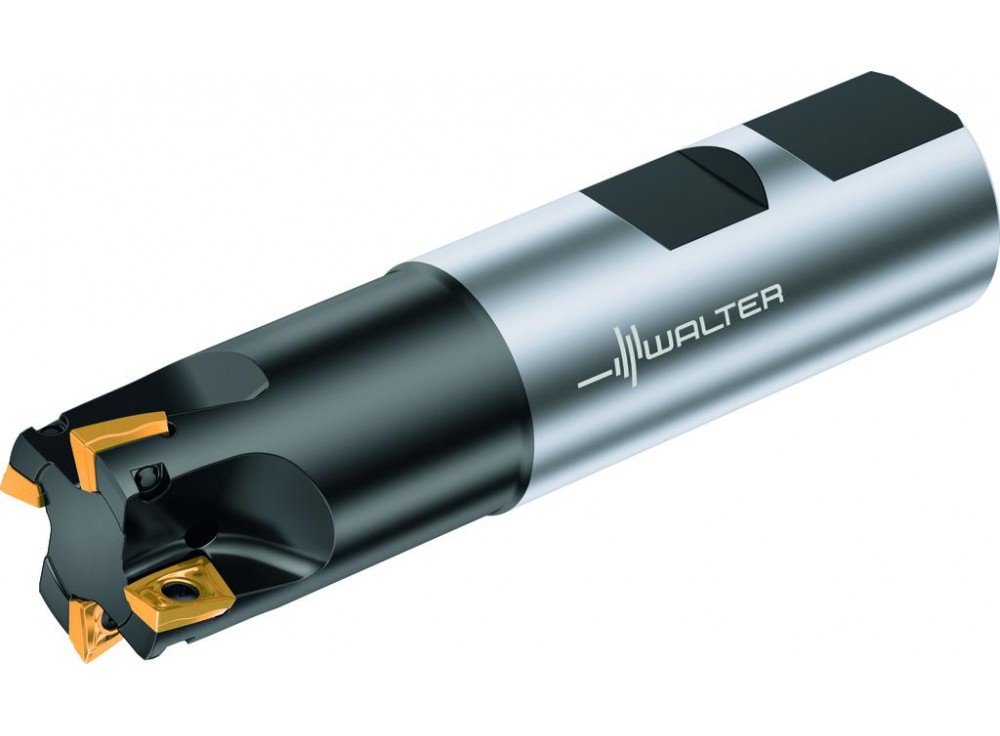

Shoulder milling cutters
M4130-025-W25-04-08
Walter AG
€289.85

€289.85 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 2 cutting edges per indexable insert

Shoulder milling cutters • DIN 1835 B shank • κ=90° • metric • LD .. 08T2 .. • Dc=25mm • Z=2

Product Details

Main application
ISO K
ISO M
ISO P
ISO S

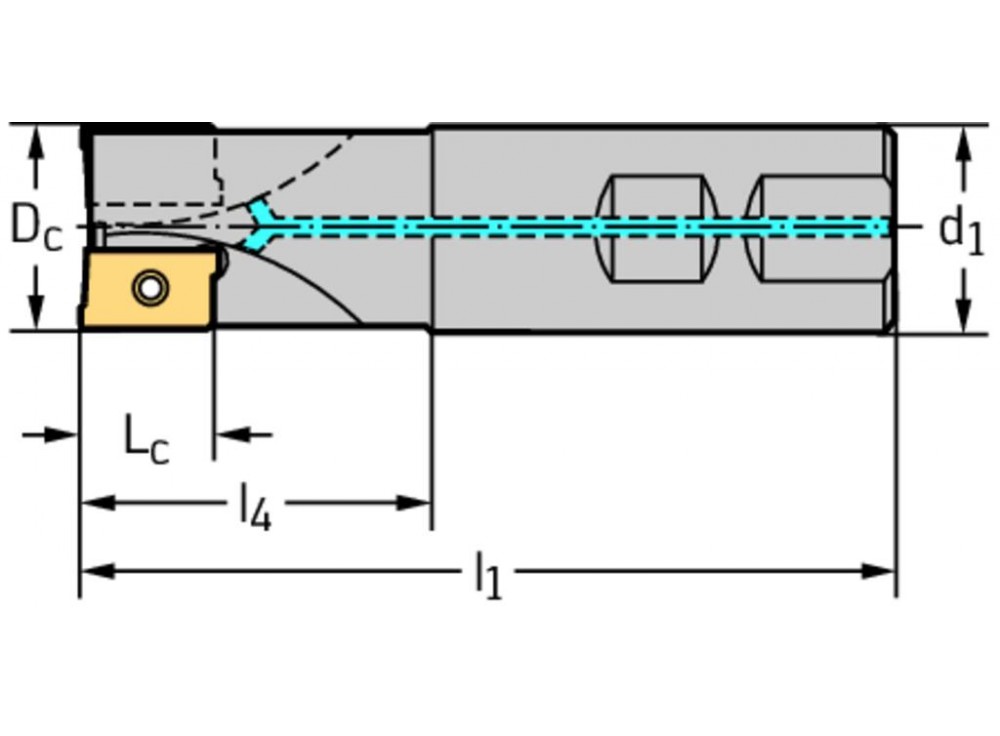

Cutting edge diameter [D c]
25 mm
Cutting edge length [L c]
8 mm
Overall length [l 1]
100 mm
Maximum projection length [l 4]
42 mm
Number of indexable inserts [No. of indexable inserts]
4
Connection diameter [d 1]
25 mm
Weight of item
0,3 kg
Number of teeth [Z]
4
Weight
0.319 kg
