M4003-080-B27-12-4.5
Image may not correspond to reality
  • M4003-080-B27-12-4.5
  • M4003-080-B27-12-4.5

M4003-080-B27-12-4.5

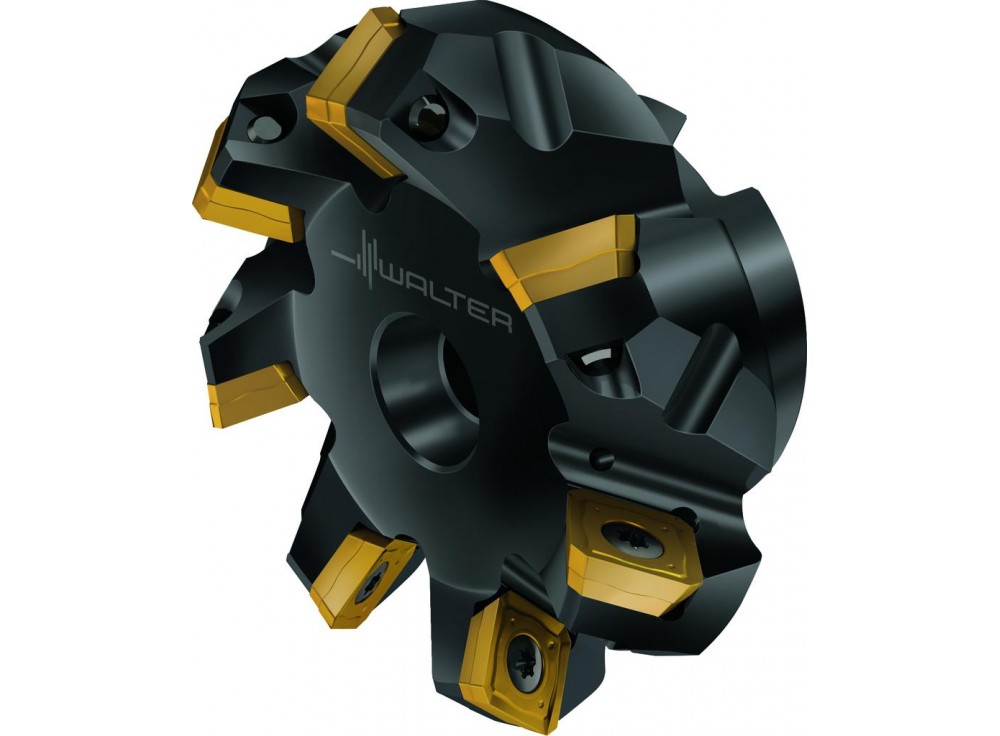

Face milling cutters
M4003-080-B27-12-4.5
Walter AG
€649.40

€649.40 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 4 cutting edges per indexable insert

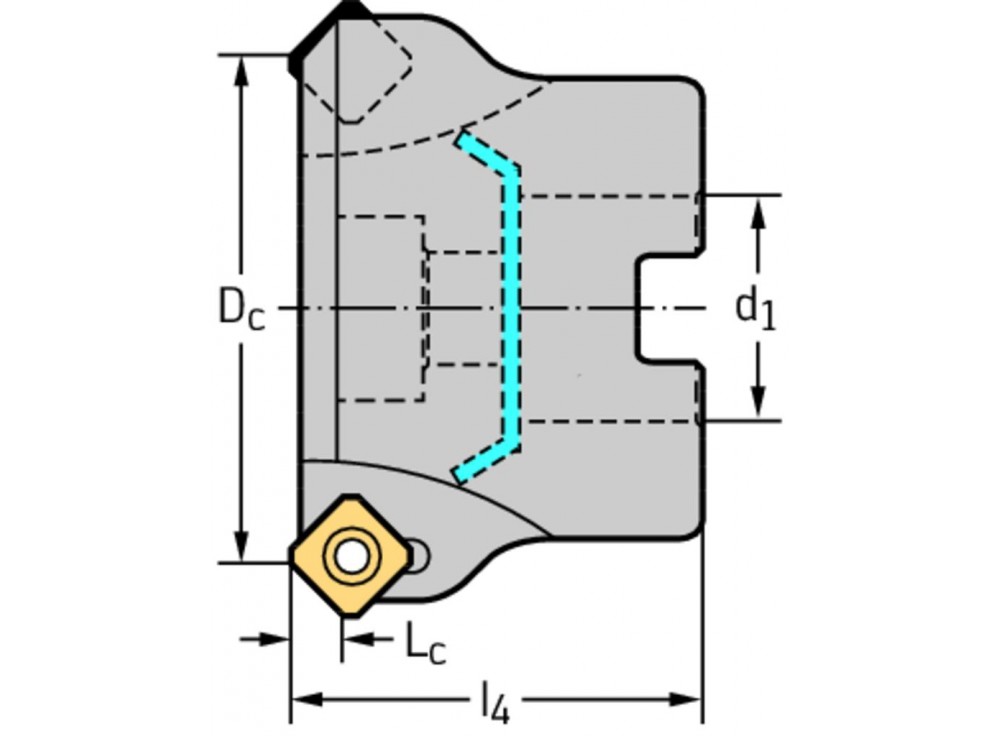

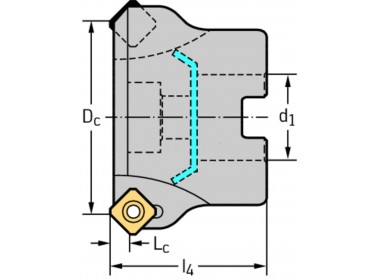

Face milling cutters M4003 • Parallel bore DIN 138 transverse keyway • κ=45° • metric • SD .. 09T3 .. • Dc=80mm • Z=12

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O
Cutting edge diameter [D c]
80 mm
Cutting edge length [L c]
4,5 mm
Shank diameter [d 1]
27 mm
Functional length [l 4]
50 mm
Number of indexable inserts [No. of indexable inserts]
12
Weight of item
1,1 kg
Number of teeth [Z]
12
Weight
1.126 kg
