M4003.051-B19-04-6.5
Image may not correspond to reality
  • M4003.051-B19-04-6.5
  • M4003.051-B19-04-6.5

M4003.051-B19-04-6.5

Face milling cutters
M4003.051-B19-04-6.5
Walter AG
€379.10

€379.10 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 4 cutting edges per indexable insert

Face milling cutters M4003 • Parallel bore DIN 138 transverse keyway • κ=45° • inch • SD .. 1204 .. • Dc=51mm • Z=4

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O

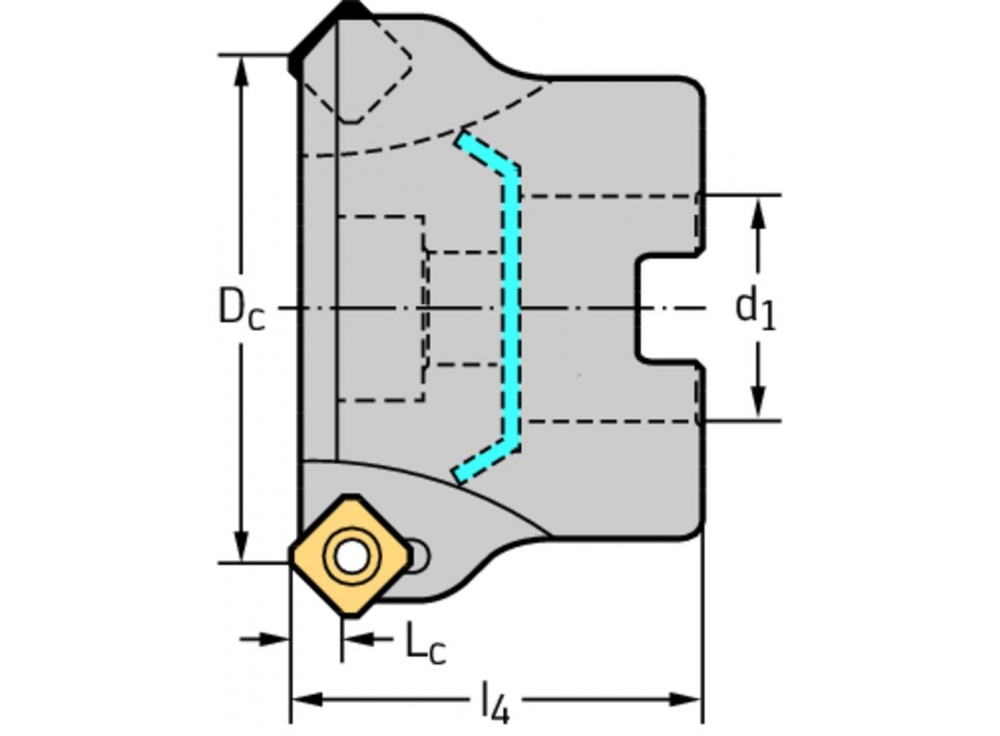

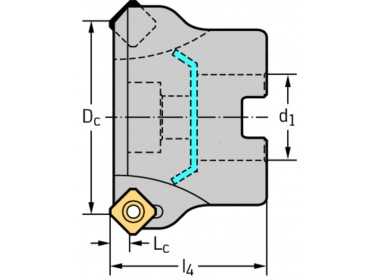

Cutting edge diameter [D c]
2 inch
Cutting edge length [L c]
0,256 inch
Shank diameter [d 1]
3/4 inch
Functional length [l 4]
1,575 inch
Number of indexable inserts [No. of indexable inserts]
4
Weight of item
0,5 lbs
Number of teeth [Z]
4
Weight
0.483 kg
