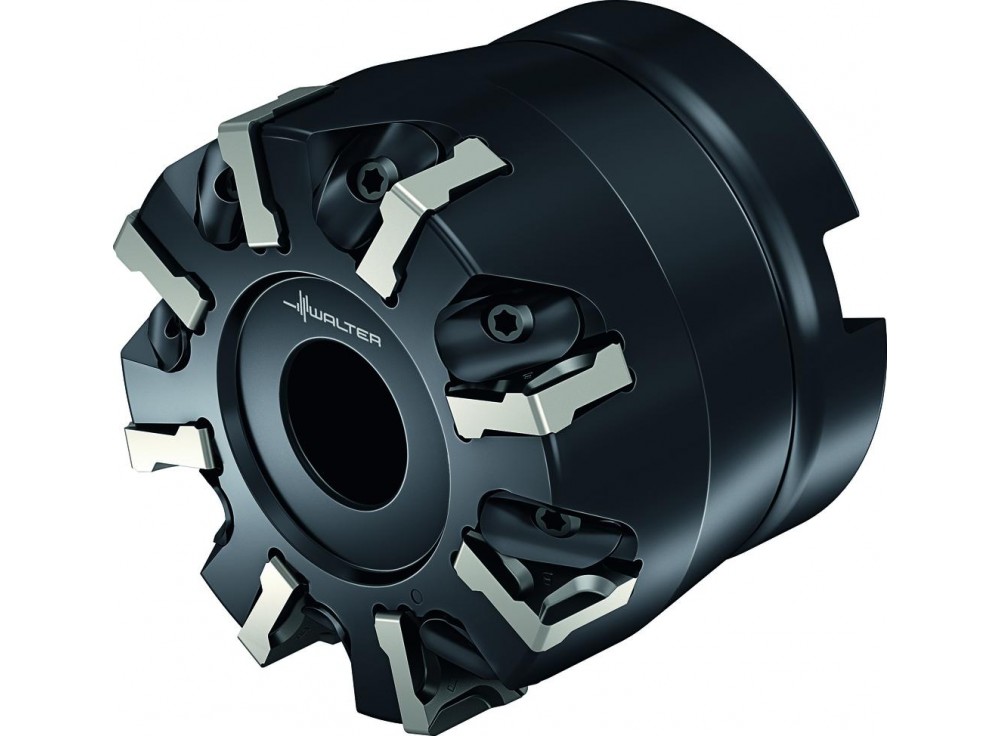

M2136-100-B32-16-06
Image may not correspond to reality
  • M2136-100-B32-16-06
  • M2136-100-B32-16-06

M2136-100-B32-16-06

Close pitch cutters
M2136-100-B32-16-06
Walter AG
€1,333.00

€1,333.00 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 8 cutting edges per indexable insert

Close pitch cutters M2136 • Parallel bore DIN 138 transverse keyway • κ=90° • metric • SN .. 1204 .. • Dc=100mm • Z=16

Product Details

Main application
ISO K

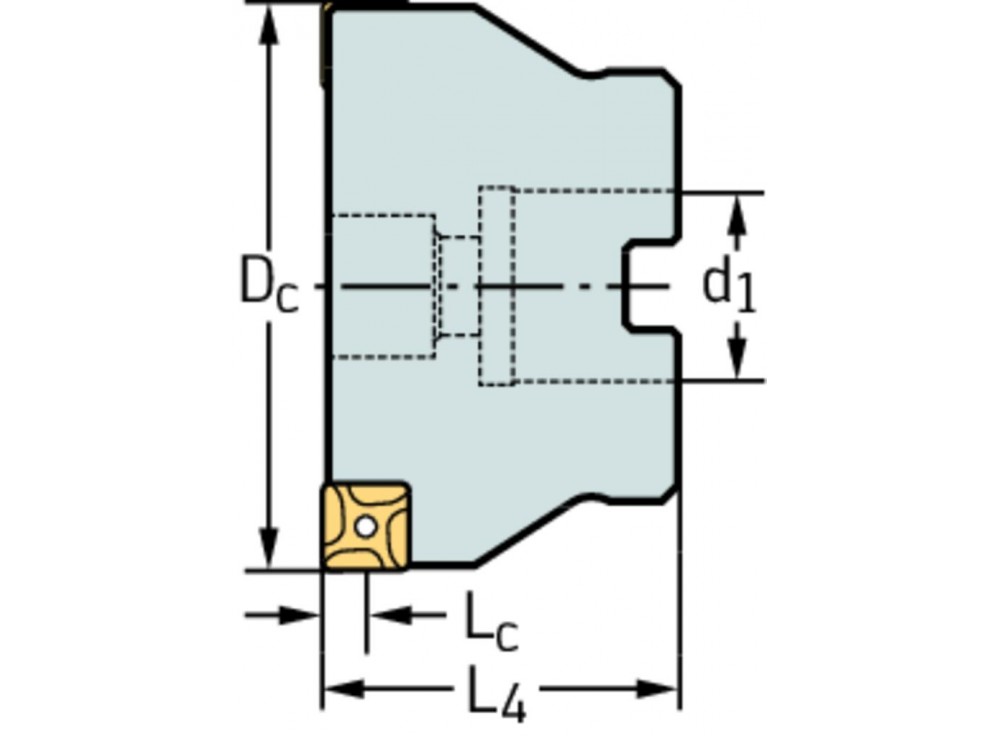

Connection diameter [d 1]
32 mm
Cutting edge diameter [D c]
100 mm
Cutting edge length [L c]
6,5 mm
Maximum admissable speed [n max [rpm]]
7900
Maximum ramping angle [E]
0 Deg
Maximum projection length [l 4]
50 mm
Number of indexable inserts [No. of indexable inserts]
16
Weight of item
1,79 kg
Number of teeth [Z]
16
Weight
1.785 kg
