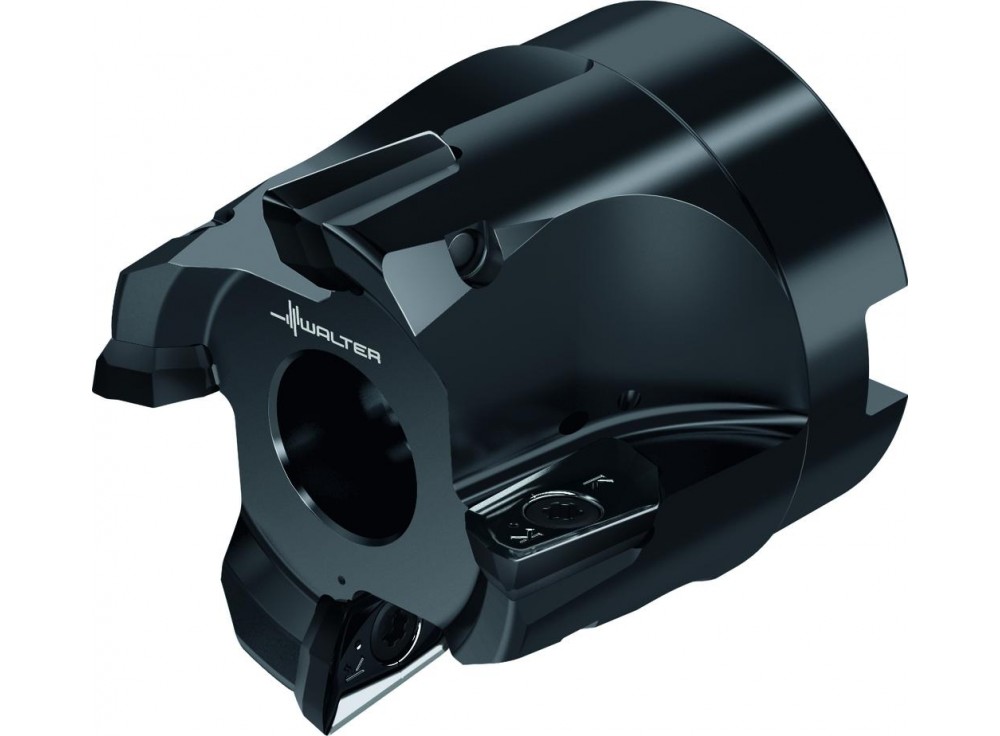

M2131-063-B22-04-20
Image may not correspond to reality
  • M2131-063-B22-04-20
  • M2131-063-B22-04-20

M2131-063-B22-04-20

Ramping milling cutters
M2131-063-B22-04-20
Walter AG
€633.25

€633.25 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For pocket machining
  • 2 cutting edges per indexable insert

Ramping milling cutters M2131 • Parallel bore DIN 138 transverse keyway • κ=90° • metric • ZD .. 2005 .. • Dc=63mm • Z=4

Product Details

Main application
ISO N
Additional application
ISO O

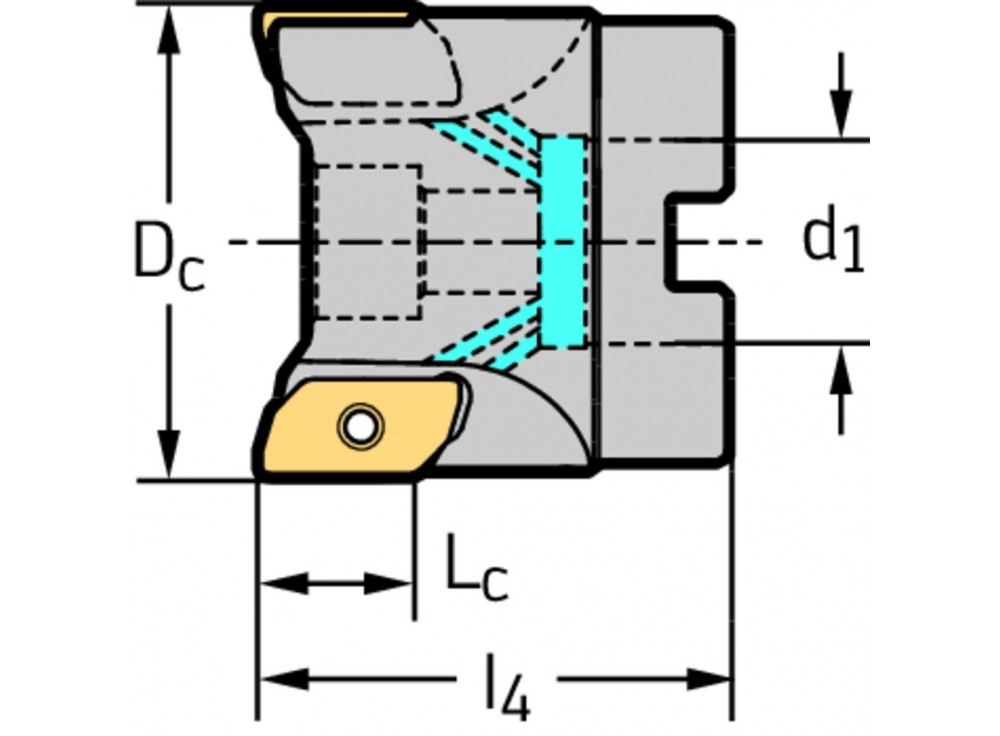

Connection diameter [d 1]
22 mm
Cutting edge diameter [D c]
63 mm
Cutting edge length [L c]
20 mm
Maximum admissable speed [n max [rpm]]
23100
Maximum ramping angle [E]
6 Deg
Maximum projection length [l 4]
50 mm
Number of indexable inserts [No. of indexable inserts]
4
Weight of item
0,52 kg
Number of teeth [Z]
4
Weight
0.52 kg
