D4140.07-18.00A19-D
Image may not correspond to reality
  • D4140.07-18.00A19-D
  • D4140.07-18.00A19-D

D4140.07-18.00A19-D

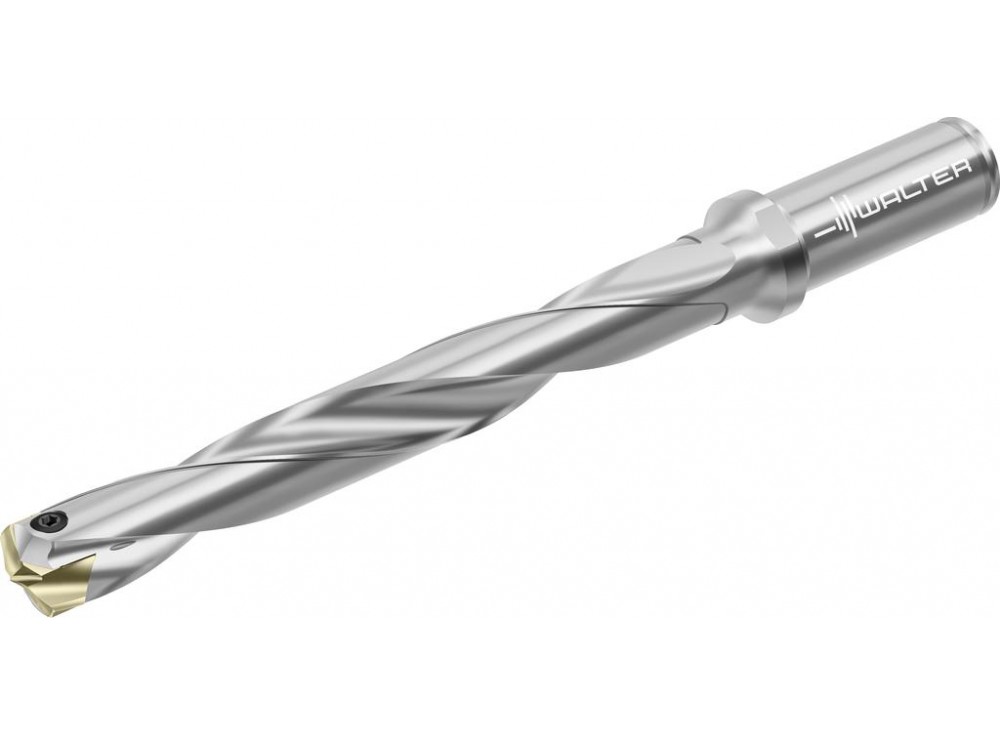

Exchangeable-tip drills
D4140.07-18.00A19-D
Walter AG
€407.75

€407.75 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

Exchangeable-tip drills D4140.07 • Cylindrical shank with collar • inch • 7xD • point angle 140° • Z=2 • Dc=18mm

Product Details

Main application
ISO K
ISO N
ISO P
Additional application
ISO M
ISO S

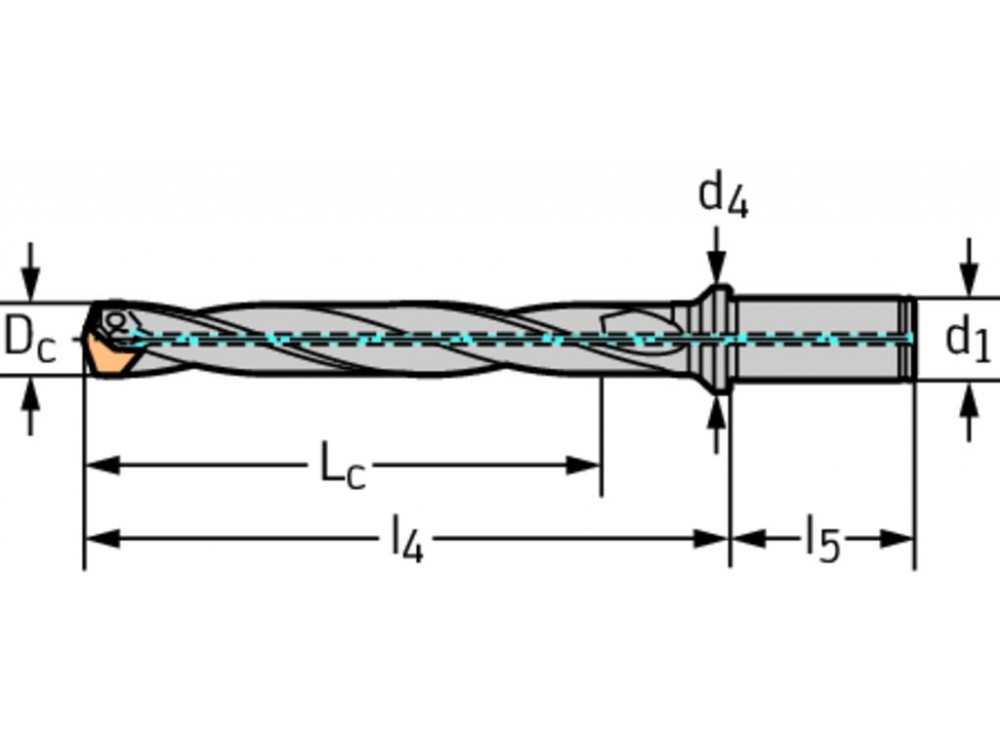

Connection diameter [d 1]
0,75 inch
Cutting edge diameter [D c]
0,709 inch
Flange diameter [d 4]
0,984 inch
Cutting edge length [L c]
5,079 inch
Shank length [l 5]
2,031 inch
Maximum projection length [l 4]
6,457 inch
Number of indexable inserts [No. of indexable inserts]
1
Weight of item
0,34 lbs
Weight
0.34 kg
