D4140.05-14.00A15-B
Image may not correspond to reality
  • D4140.05-14.00A15-B
  • D4140.05-14.00A15-B

D4140.05-14.00A15-B

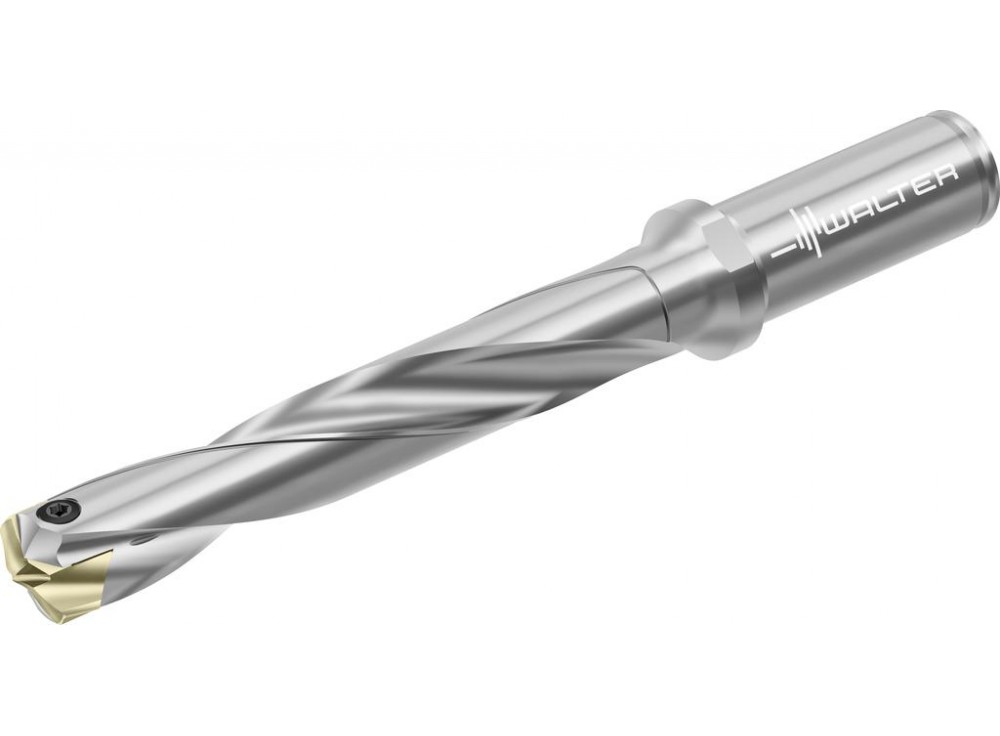

Exchangeable-tip drills
D4140.05-14.00A15-B
Walter AG
€287.00

€287.00 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

Exchangeable-tip drills D4140.05 • Cylindrical shank with collar • inch • 5xD • point angle 140° • Z=2 • Dc=14mm

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
Additional application
ISO S

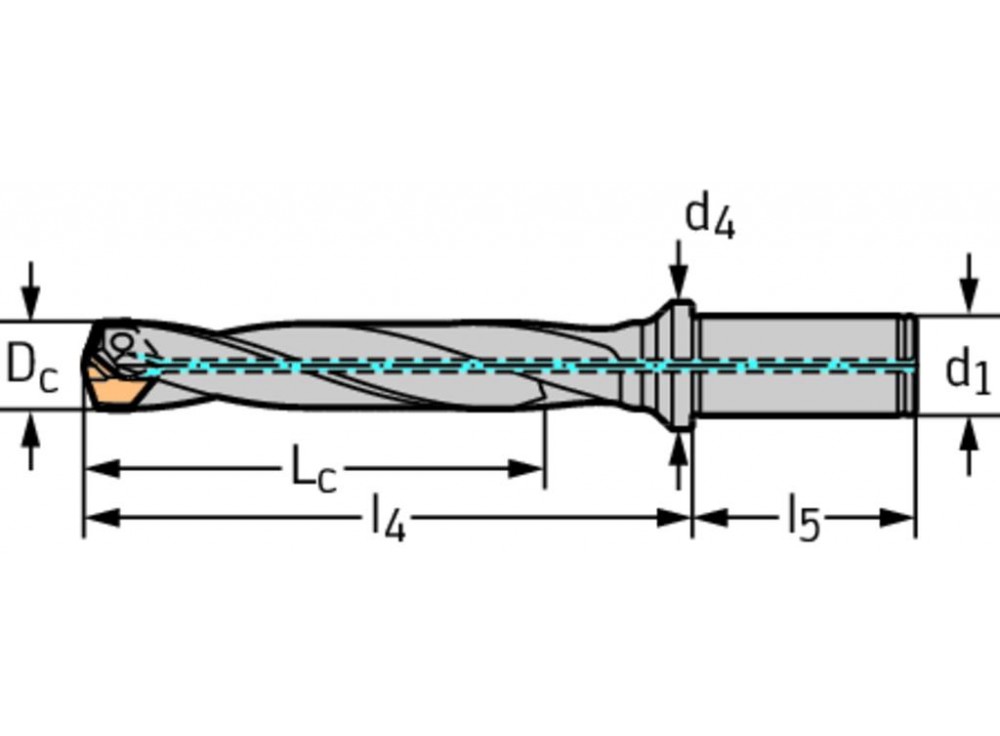

Connection diameter [d 1]
0,625 inch
Cutting edge diameter [D c]
0,551 inch
Flange diameter [d 4]
0,787 inch
Cutting edge length [L c]
2,874 inch
Shank length [l 5]
1,89 inch
Maximum projection length [l 4]
4,094 inch
Number of indexable inserts [No. of indexable inserts]
1
Weight of item
0,18 lbs
Weight
0.177 kg
