D4120.02-39.67F38-P46
Image may not correspond to reality
  • D4120.02-39.67F38-P46
  • D4120.02-39.67F38-P46

D4120.02-39.67F38-P46

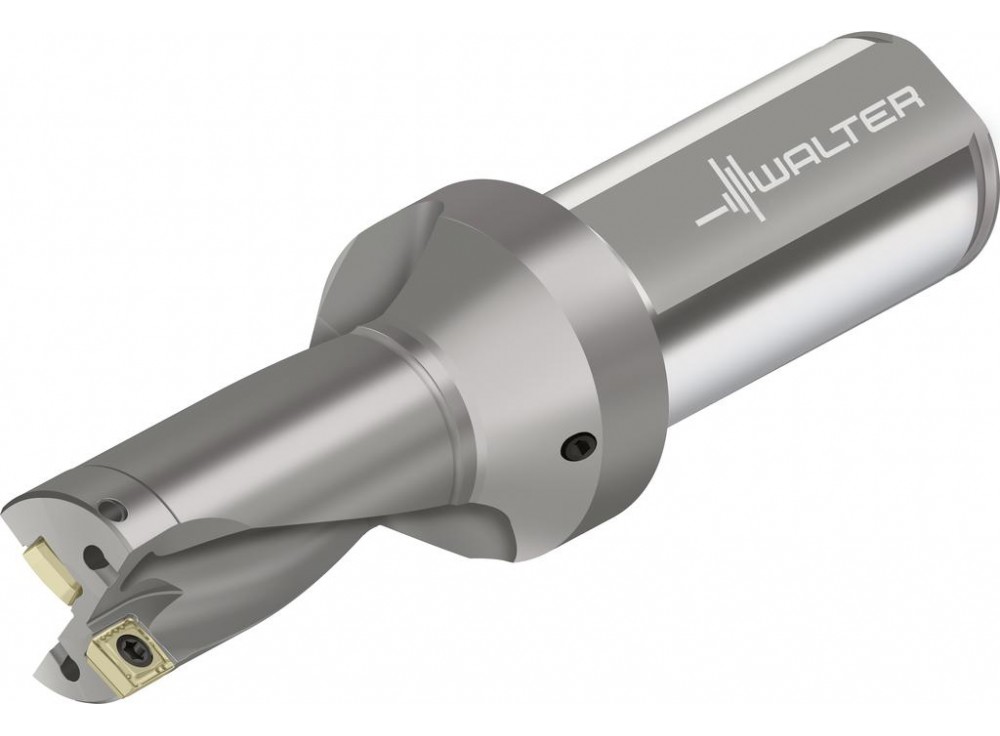

Indexable insert drills
D4120.02-39.67F38-P46
Walter AG
€444.61

€444.61 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

Indexable insert drills D4120.02 • 2xD • Parallel shank with flat • inch • Dc=39,7mm

Product Details

Main application
ISO K
ISO M
ISO P
ISO S
Additional application
ISO N

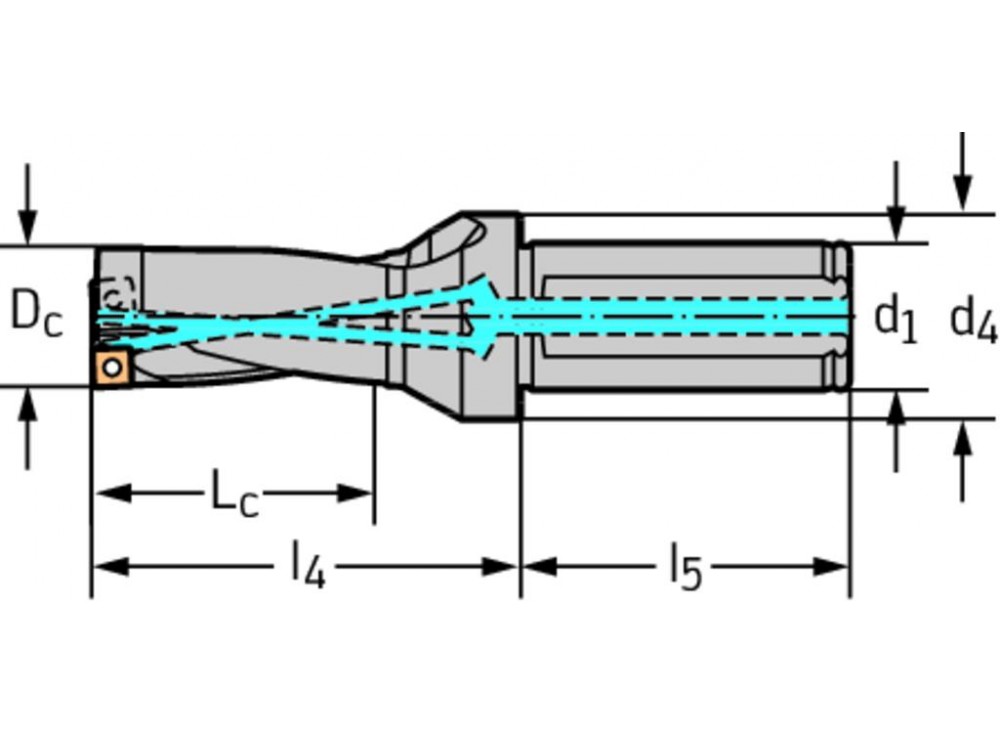

Connection diameter [d 1]
1,5 inch
Cutting edge diameter [D c]
1,562 inch
Flange diameter [d 4]
1,94 inch
Cutting edge length [L c]
3,124 inch
Maximum projection length [l 4]
4,5 inch
Number of indexable inserts [No. of indexable inserts]
1
Clamping length [l 5]
2,688 inch
Weight of item
1,36 lbs
Weight
1.355 kg
