6889-5

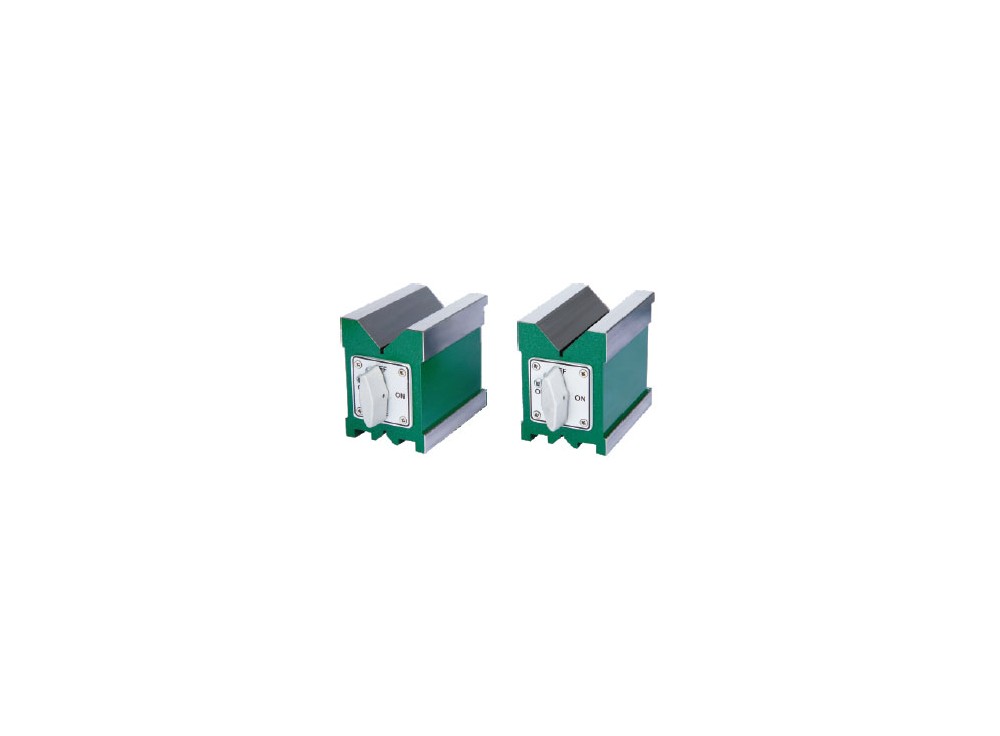

Magnetic V-block - 160x125x130 mm

Reference: 6889-5

EAN: 6940561937091

Brand: INSIZE

€1,921.00

€1,921.00 tax incl.

Delivery time on request

Please contact us by email at eshop@toolbox.sk

This product is available only for Slovakia

Description

Hardened, high accuracy, strong magnetic force, for grinding, light milling, drilling and inspection of round and square workpieces. All working surfaces are hardened to HRC60+2. Magnetic force on top, bottom and two V grooves. V groove on the top for large shafts. V groove on the bottom for small shafts. Suitable for cast iron surface plates and granite surface plates

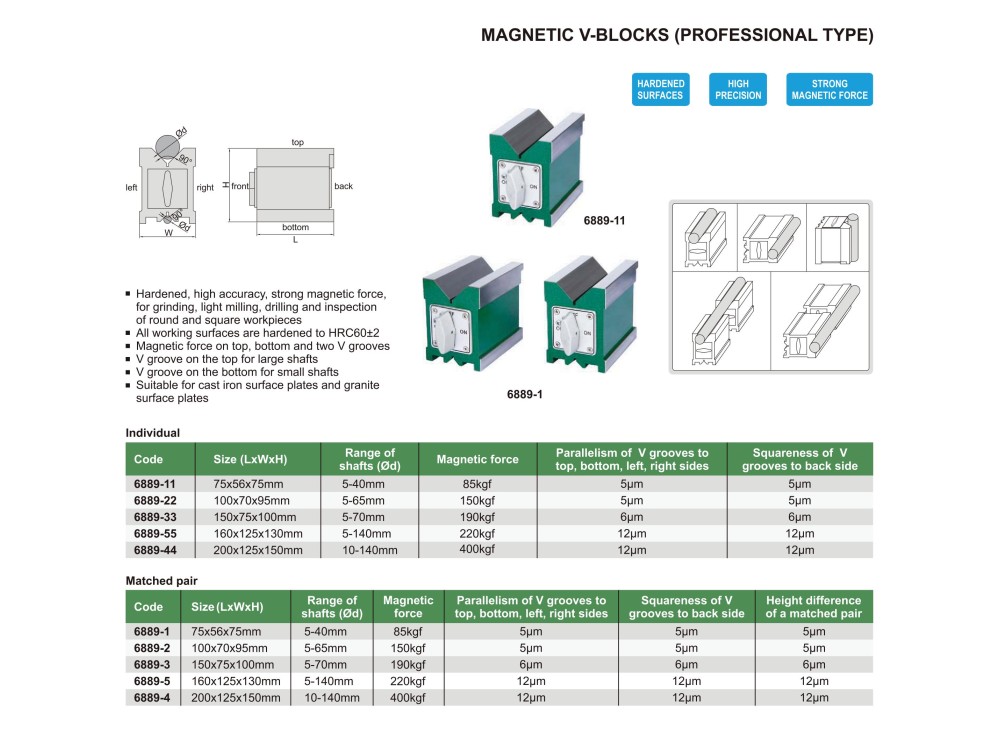

Product Details

Size: 160x125x130 mm
Range of shafts: 5-140 mm
Squarness of V grooves to back side: 12 µm
Parallelism of both V grooves to top, bottom, left and right sides: 12 µm
Magnetic force: 220 kgf
Weight: 51.6 kg
