G2612-3225R-4T45SX
Image may not correspond to reality
  • G2612-3225R-4T45SX
  • G2612-3225R-4T45SX

G2612-3225R-4T45SX

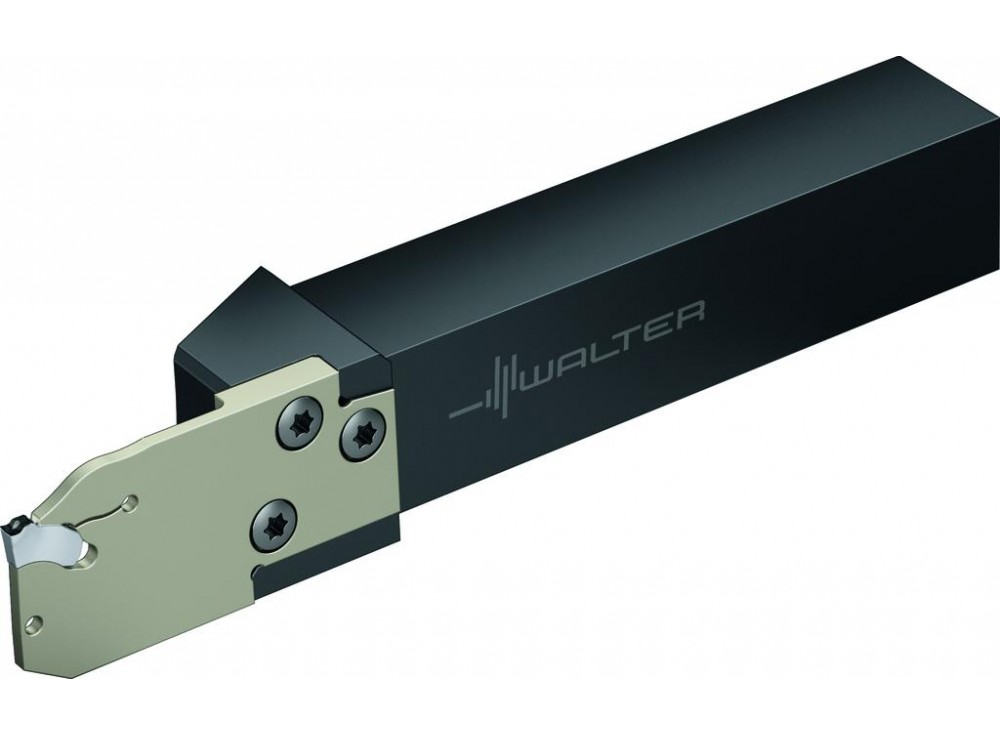

Shank tool – Radial grooving
G2612-3225R-4T45SX
Walter AG
€224.40

€224.40 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Self-clamping system

Shank tool – Radial grooving G2612 • Self-clamping system • metric • Square shank • Right • SX00 • s=4mm • Tmax=45mm

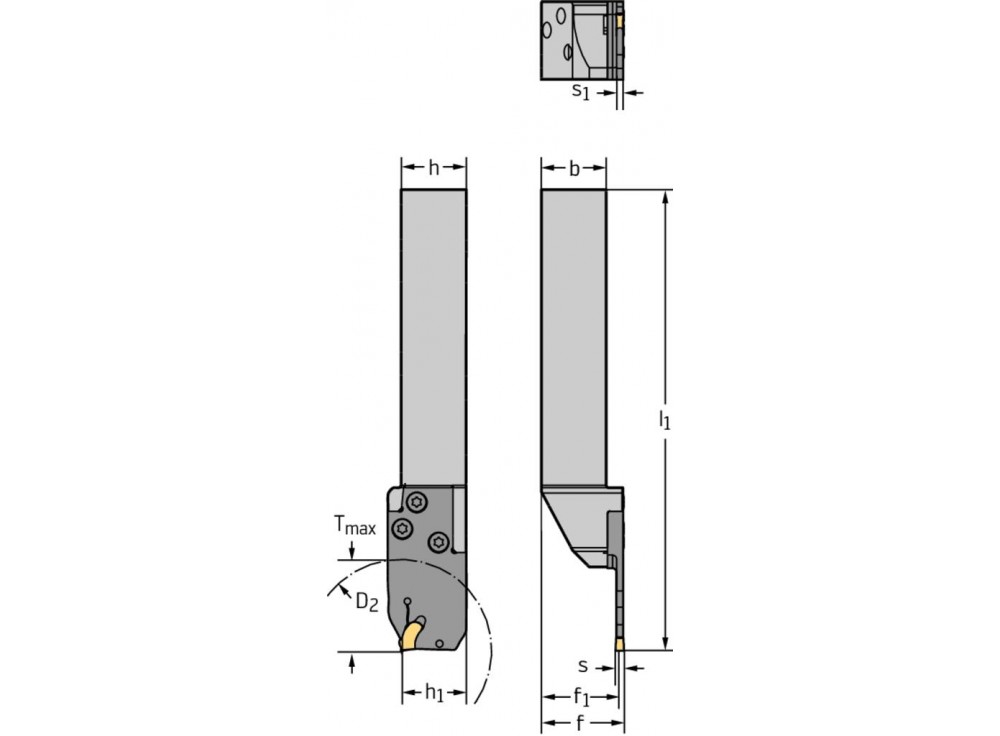

Product Details

Insert width [s]
4 - 4 mm
Maximum cutting depth [T max]
45 mm
Work piece parting diameter maximum [D 2]
100 mm
Shank height h h 1
32 mm
Functional width [f 1]
29,7 mm
Shank width [b]
25 mm
Overall length [l 1]
208 mm
Body width [s 1]
3,4 mm
Module size
E32
Weight
1.142 kg
