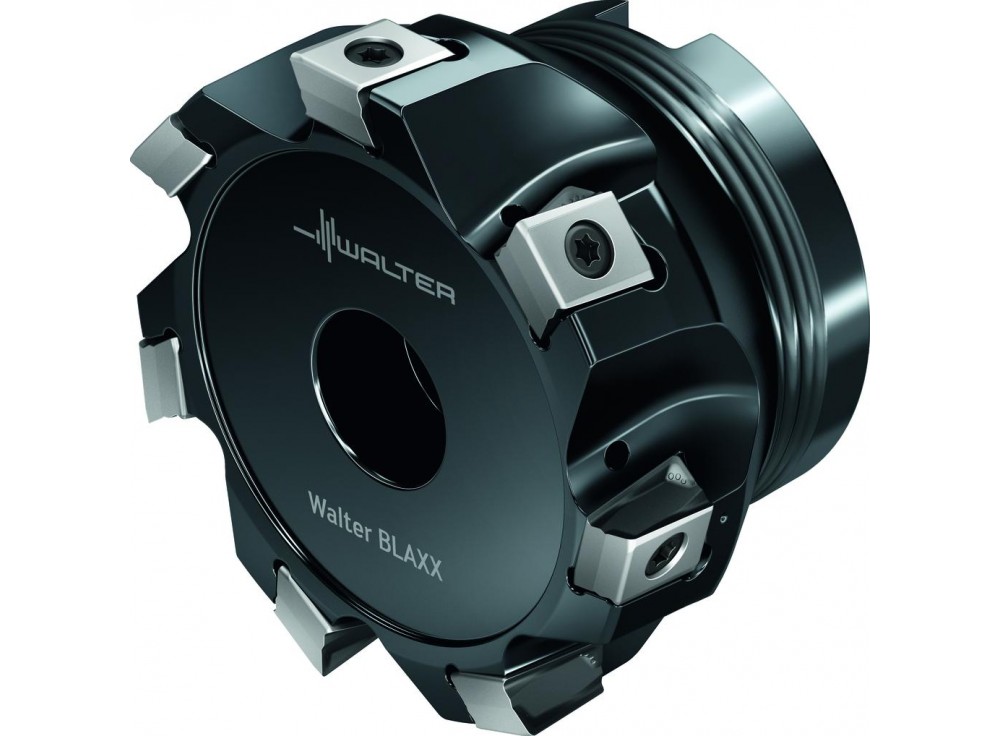

F5141.B40.160.Z13.12
Image may not correspond to reality
  • F5141.B40.160.Z13.12
  • F5141.B40.160.Z13.12

F5141.B40.160.Z13.12

Shoulder milling cutters
F5141.B40.160.Z13.12
Walter AG
€1,136.92

€1,136.92 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Tangential arrangement of indexable inserts
  • 4 cutting edges per indexable insert

Shoulder milling cutters F5141 • Parallel bore DIN 138 transverse keyway • κ=90° • metric • LN .. 1306 .. • Dc=160mm • Z=13

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O

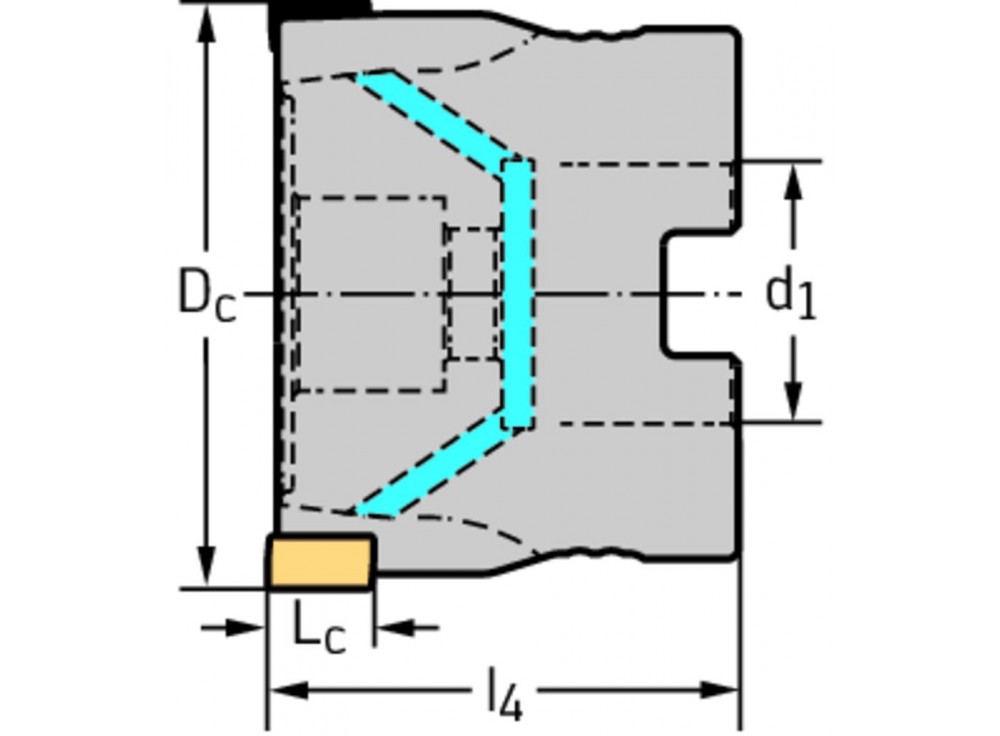

Connection diameter [d 1]
40 mm
Cutting edge diameter [D c]
160 mm
Cutting edge length [L c]
12 mm
Maximum admissable speed [n max [rpm]]
11200
Maximum projection length [l 4]
63 mm
Number of indexable inserts [No. of indexable inserts]
13
Weight of item
5,38 kg
Number of teeth [Z]
13
Weight
5.38 kg
