F5141.W32.040.Z05.12

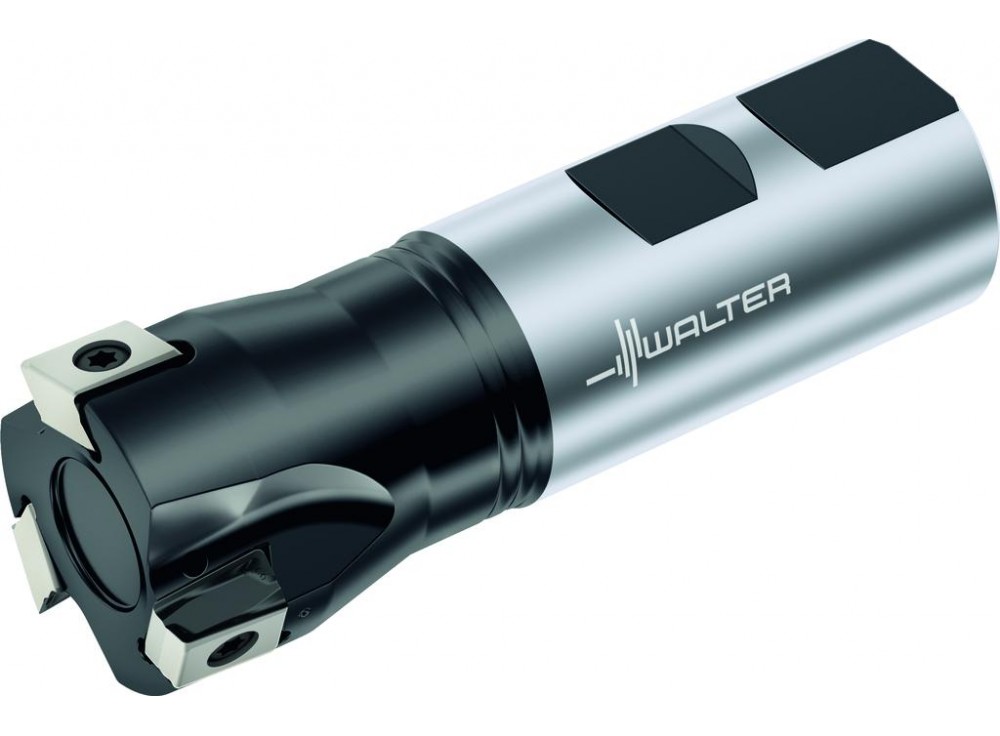

Shoulder milling cutters
F5141.W32.040.Z05.12
Walter AG
€398.18

€398.18 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Tangential arrangement of indexable inserts
  • 4 cutting edges per indexable insert

Shoulder milling cutters F5141 • DIN 1835 B shank • κ=90° • metric • LN .. 1306 .. • Dc=40mm • Z=5

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O

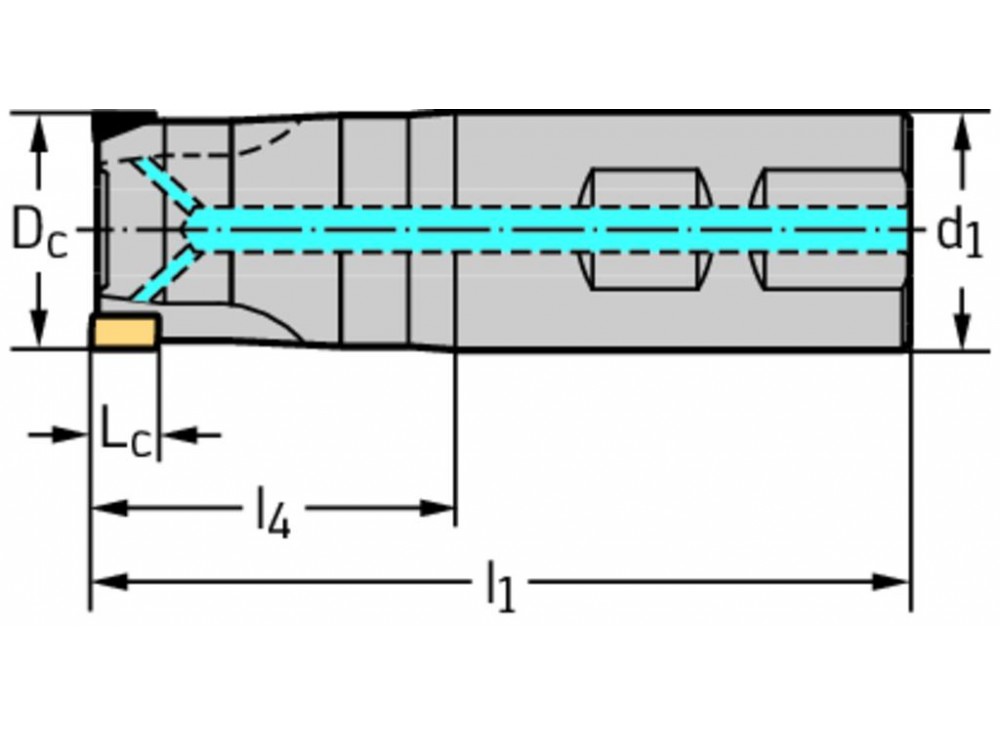

Cutting edge diameter [D c]
40 mm
Cutting edge length [L c]
12 mm
Overall length [l 1]
110 mm
Maximum projection length [l 4]
49 mm
Number of indexable inserts [No. of indexable inserts]
5
Connection diameter [d 1]
32 mm
Weight of item
0,7 kg
Number of teeth [Z]
5
Weight
0.736 kg
