F5141.UB38.152.Z13.12
Image may not correspond to reality
  • F5141.UB38.152.Z13.12
  • F5141.UB38.152.Z13.12

F5141.UB38.152.Z13.12

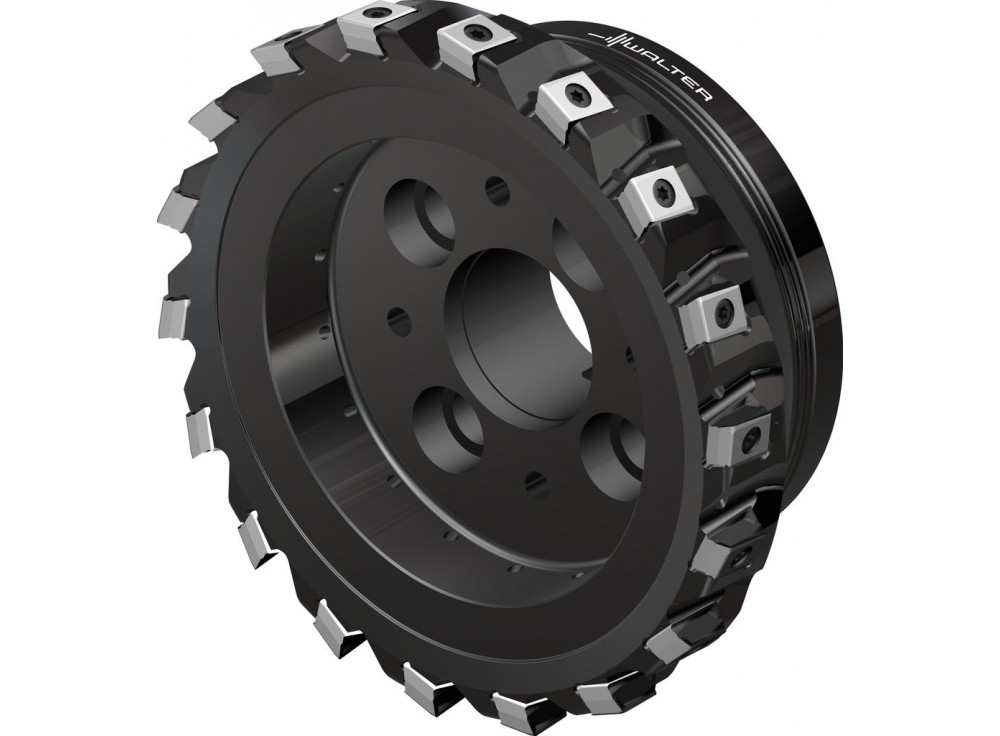

Shoulder milling cutters
F5141.UB38.152.Z13.12
Walter AG
€1,136.92

€1,136.92 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Tangential arrangement of indexable inserts
  • 4 cutting edges per indexable insert

Shoulder milling cutters F5141 • Parallel bore DIN 138 transverse keyway • κ=90° • inch • LN .. 1306 .. • Dc=152mm • Z=13

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O

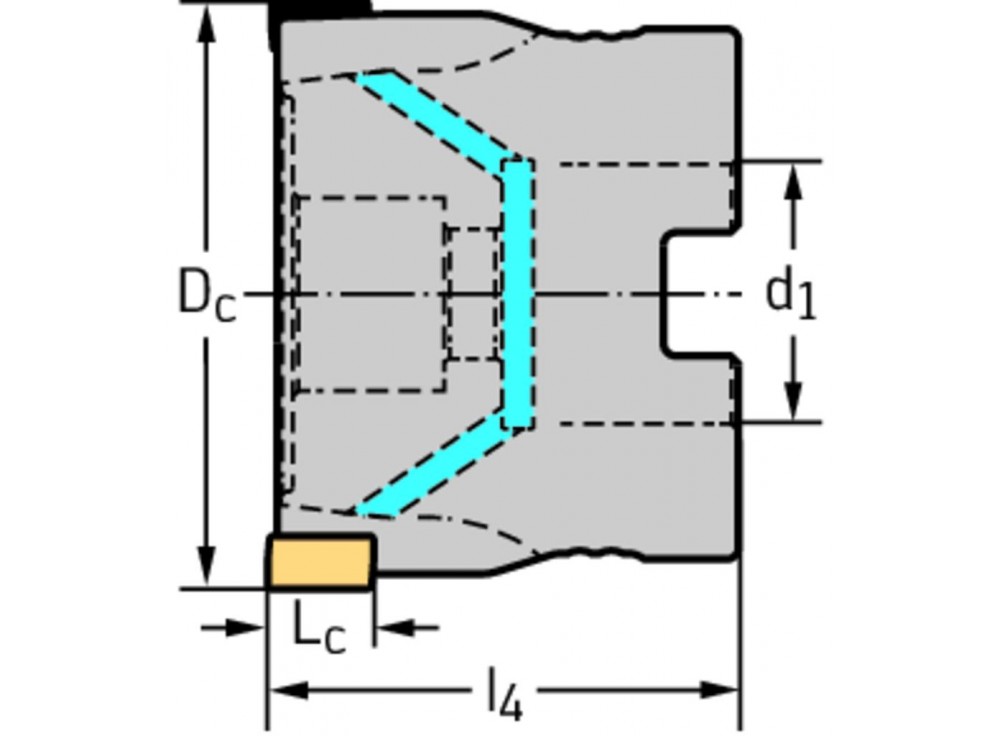

Cutting edge diameter [D c]
6 inch
Cutting edge length [L c]
0,472 inch
Maximum projection length [l 4]
2,48 inch
Number of indexable inserts [No. of indexable inserts]
13
Connection diameter [d 1]
1 1/2 inch
Weight of item
6,04 lbs
Number of teeth [Z]
13
Weight
6.04 kg
