F4253.B40.125.Z06.14

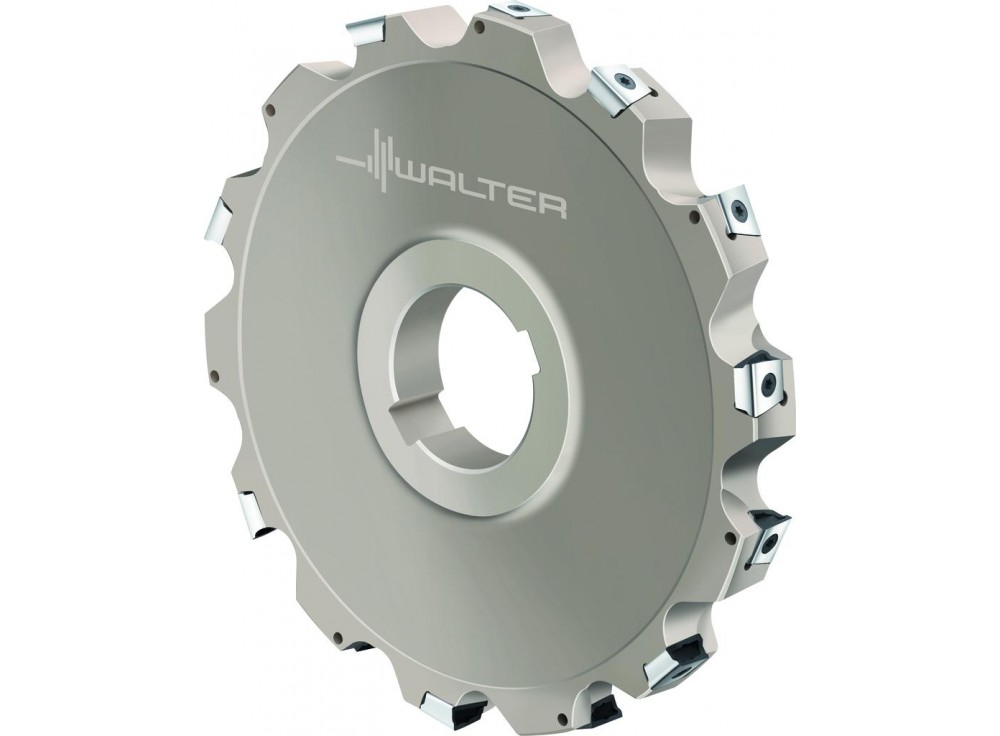

Slotting cutters for ‌slot milling
F4253.B40.125.Z06.14
Walter AG
€1,138.64

€1,138.64 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Cross-toothed, cuts on three sides
  • 2 + 2 cutting edges per indexable insert, adjustable runout

Slotting cutters for ‌slot milling F4253 • Parallel bore DIN 138 longitudinal keyway • metric • Dc=125mm • SB=14mm

Product Details

Main application
ISO K
ISO M
ISO P
ISO S

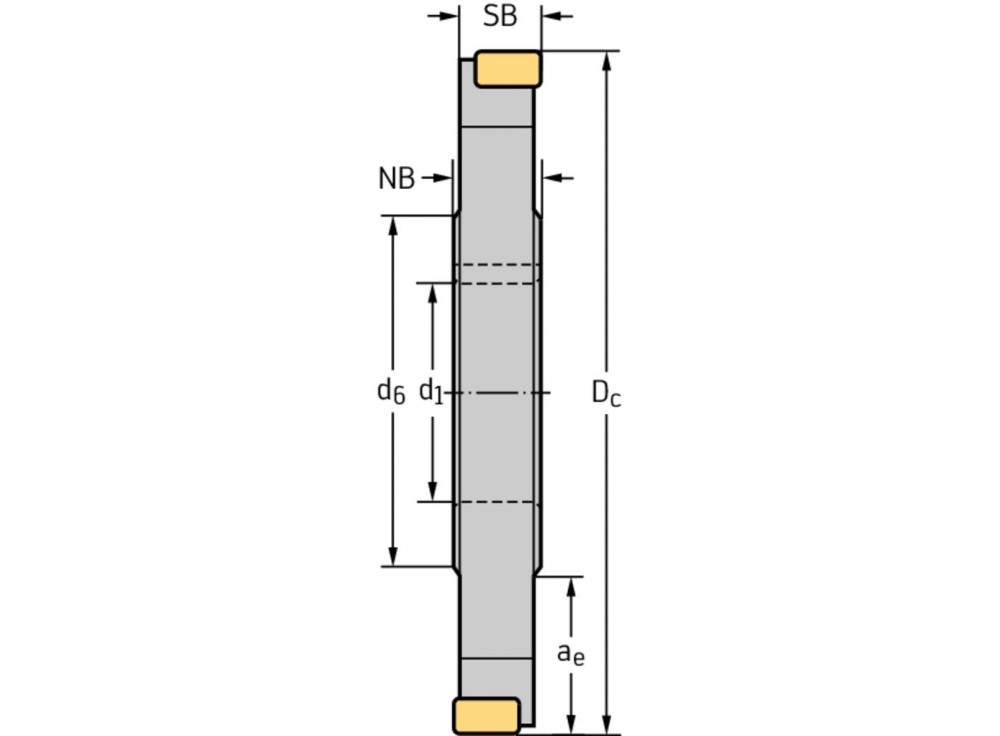

Hub diameter [d 6]
65 mm
Connection diameter [d 1]
40 mm
Cutting edge diameter [D c]
125 mm
Cutting width [SB]
14 mm
Hub thickness [NB]
14 mm
Maximum depth of cut [a e]
29 mm
Number of indexable inserts [No. of indexable inserts]
12
Weight of item
0,92 kg
Number of teeth [Z]
6
Weight
0.92 kg
