F4238.N8.063.Z04.85
Image may not correspond to reality
  • F4238.N8.063.Z04.85
  • F4238.N8.063.Z04.85

F4238.N8.063.Z04.85

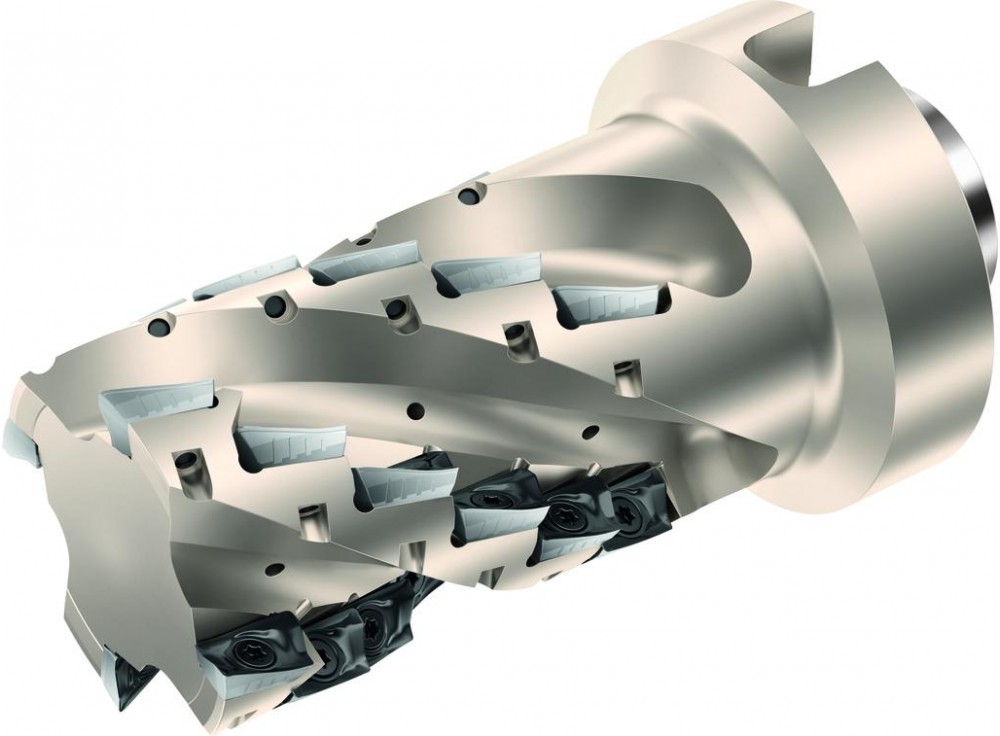

Helical milling cutters
F4238.N8.063.Z04.85
Walter AG
€1,909.20

€1,909.20 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Full effective design
  • 2 cutting edges per indexable insert

Helical milling cutters F4238 • Modular NCT adaptor • κ=90° • metric • AD .. 1606 .. • Dc=63mm • Z=4

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO O

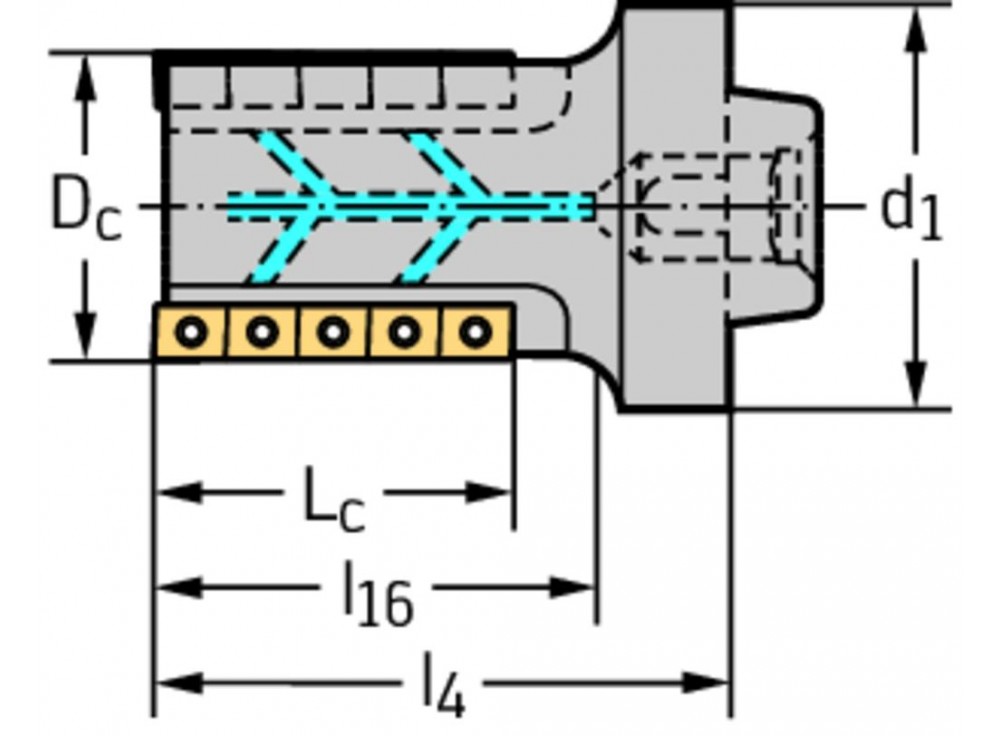

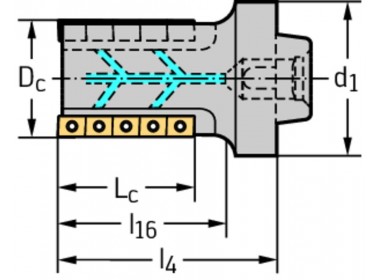

Cutting edge diameter [D c]
63 mm
Cutting edge length [L c]
85 mm
Useable length [l 16]
111 mm
Maximum projection length [l 4]
136 mm
Number of indexable inserts [No. of indexable inserts]
24
Connection diameter [d 1]
NCT 80 mm
Weight of item
2,7 kg
Number of teeth [Z]
4
Weight
2.684 kg
