F4053.BN32.125.Z06.04R
Image may not correspond to reality
  • F4053.BN32.125.Z06.04R
  • F4053.BN32.125.Z06.04R

F4053.BN32.125.Z06.04R

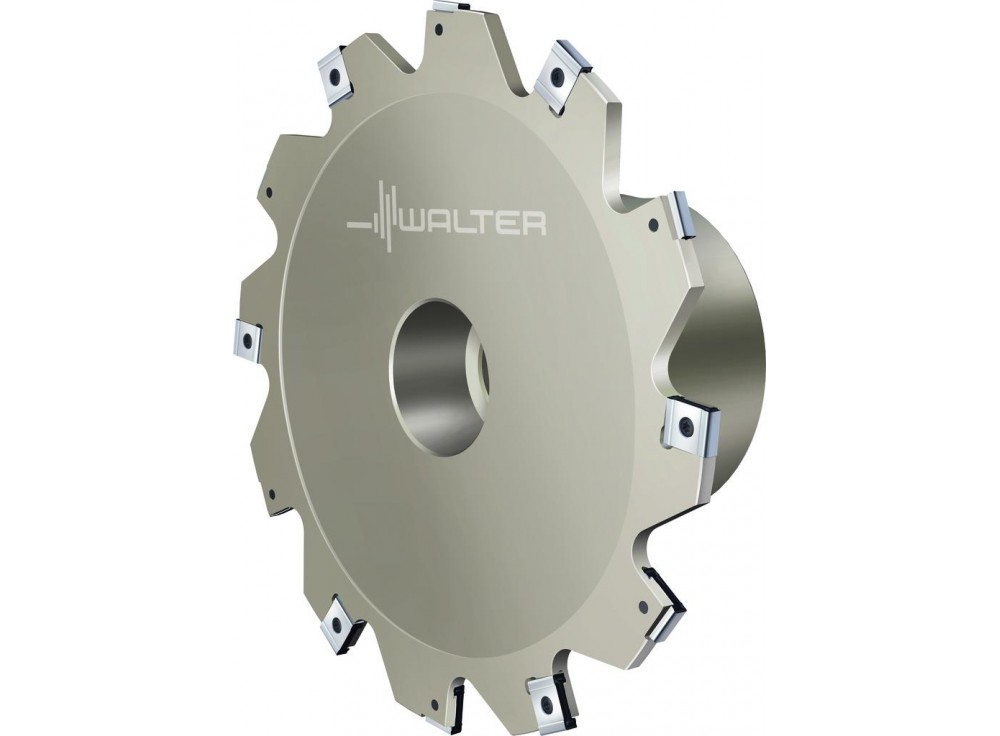

Slotting cutters for ‌slot milling
F4053.BN32.125.Z06.04R
Walter AG
€1,240.12

€1,240.12 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Cross-toothed, cuts on three sides
  • 2 + 2 cutting edges per indexable insert, tangential arrangement

Slotting cutters for ‌slot milling F4053 • Parallel bore DIN 138 transverse keyway • metric • Dc=125mm • SB=4mm

Product Details

Main application
ISO K
ISO M
ISO P
ISO S

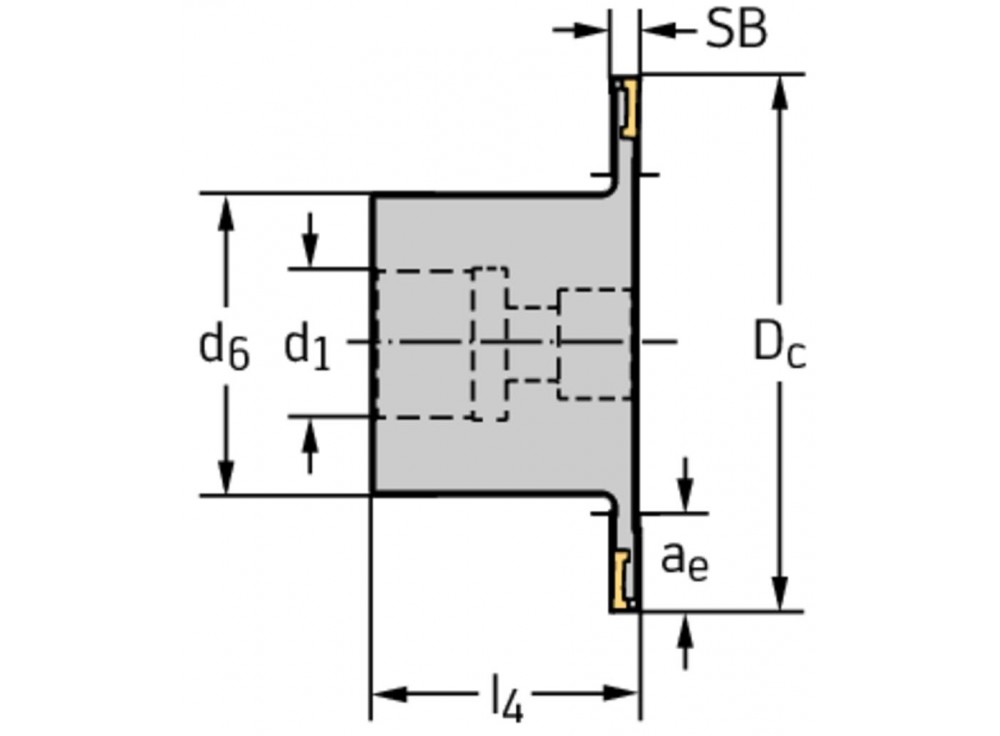

Hub diameter [d 6]
60 mm
Connection diameter [d 1]
32 mm
Cutting edge diameter [D c]
125 mm
Max. depth of cut [SB]
4 mm
Maximum depth of cut [a e]
30 mm
Functional length [l 4]
50 mm
Number of indexable inserts [No. of indexable inserts]
12
Weight of item
1,1 kg
Number of teeth [Z]
6
Weight
1.118 kg
