F4047.B22.063.Z06.08
Image may not correspond to reality
  • F4047.B22.063.Z06.08
  • F4047.B22.063.Z06.08

F4047.B22.063.Z06.08

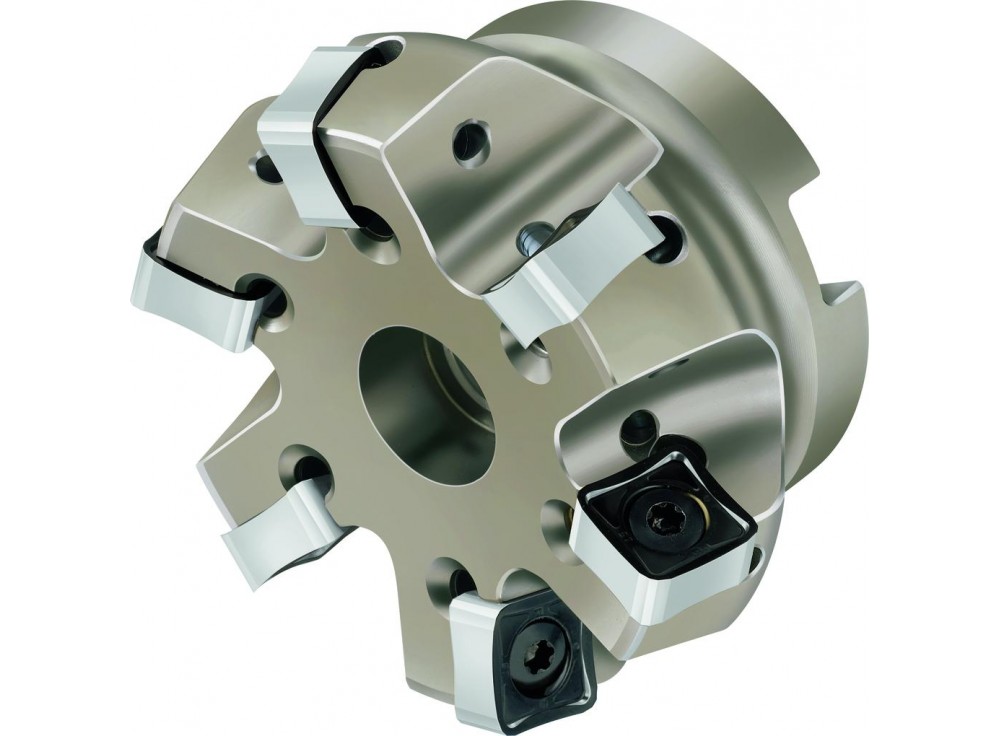

Face milling cutters
F4047.B22.063.Z06.08
Walter AG
€554.70

€554.70 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 8 cutting edges per indexable insert

Face milling cutters F4047 • Parallel bore DIN 138 transverse keyway • κ=75° • metric • SN .. 1205 .. • Dc=63mm • Z=6

Product Details

Main application
ISO K
ISO M
ISO P
ISO S
Additional application
ISO H

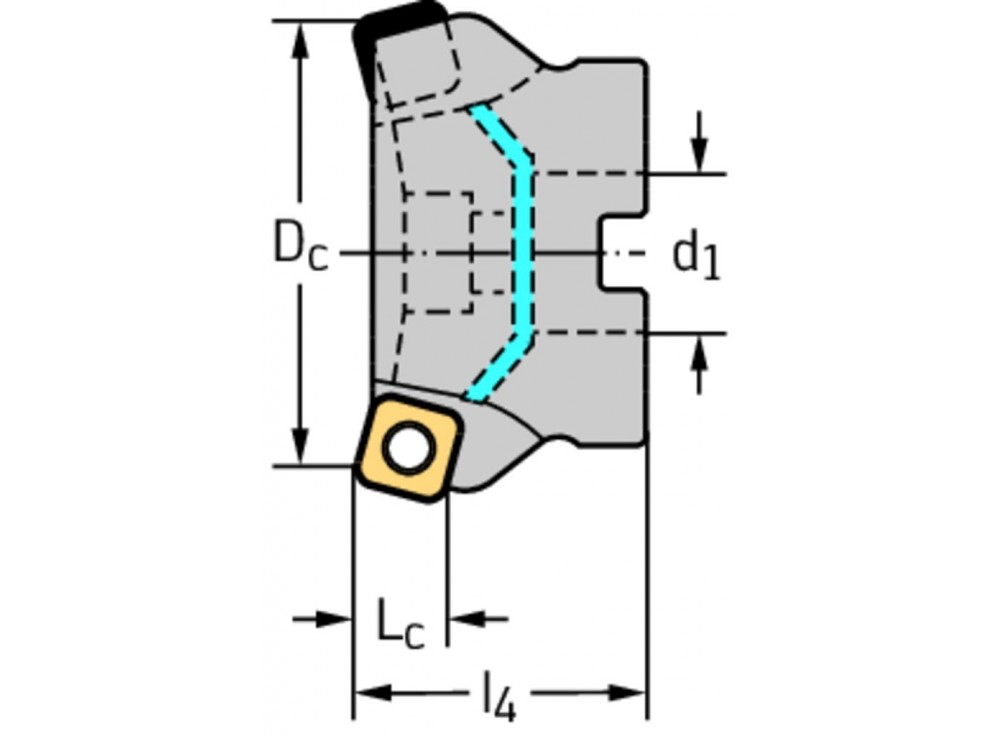

Cutting edge diameter [D c]
63 mm
Cutting edge length [L c]
8 mm
Shank diameter [d 1]
22 mm
Functional length [l 4]
40 mm
Number of indexable inserts [No. of indexable inserts]
6
Weight of item
0,7 kg
Number of teeth [Z]
6
Weight
0.711 kg
